CNC Cutting ER Tool Holder Thread SK40 GER20 For Finishing With Super Precisoin

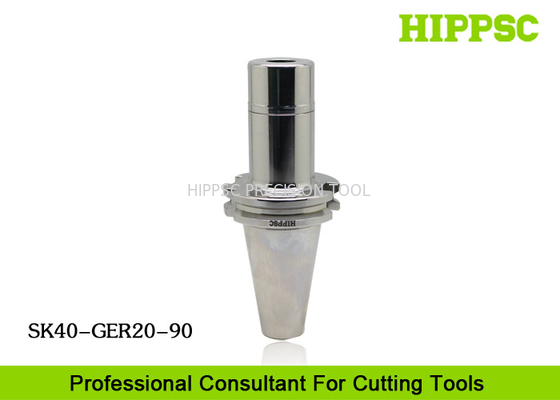

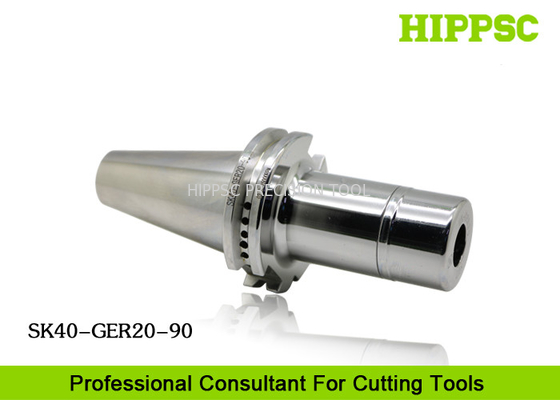

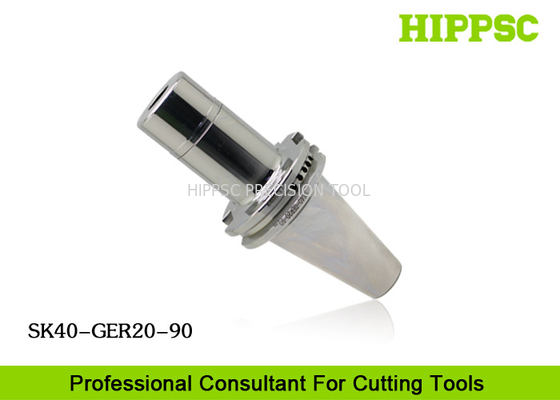

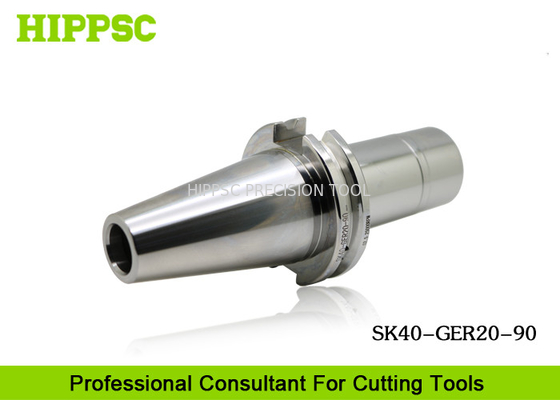

Large Image : CNC Cutting ER Tool Holder Thread SK40 GER20 For Finishing With Super Precisoin

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	SK40-GER20-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	SK40	OEM/ODM:	Yes
Product Type:	SK40 GER20 Tool Holder	Runing Accuracy:	0.003mm
Machining:	Turing, Milling, Boring, Drilling, Finishing	Material:	Special Steel
Taper:	7:24	Clamp Nut:	GER20 Ring Type
Highlight:	cnc lathe tool holder , drill Tool Holder

CNC Cutting ER Tool Holder Thread SK40 GER20 For Finishing With Super Precisoin

Ⅰ. Features And Advantages

50% More torque forcer though T bolts, lock cutting tools tightly.
GER ring nut reduce wind-resistance and noise.
Maxmum speed > 30000rpm.
Suitable for 7:24 lathe and machining center.
Work with patented GER collet, developed by HIPPSC.
High quality ER collect 100% touch conical surface, good concentricity.
Wonderful repeat accuracy.
High regidity and high clamping force.

Ⅱ. Technical Parametes

Product Name	GER20 High Speed Tool Hoder
Spindle Type	SK40
Clamping Range	2mm~13 mm
Runout	0.003mm
Processing Type	High speed machining and finishing
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

CNC Cutting ER Tool Holder Thread SK40 GER20 For Finishing With Super Precisoin

Standard Items

Model Number	Dlamp range d	D1	D2	L	M	Nut	Collet	Spanner
SK40-GER16-75	3.0-10.0	30	30.5	75	TR22*1.5	HN-GER16	ER16	GH30
SK40-GER16-90	3.0-10.0	30	30.5	90	TR22*1.5	HN-GER16	ER16	GH30
SK40-GER16-120	3.0-10.0	30	30.5	120	TR22*1.5	HN-GER16	ER16	GH30
SK40-GER20-75	3.0-13.0	35	35.5	75	TR26*1.5	HN-GER20	ER20	GH35
SK40-GER20-90	3.0-13.0	35	35.5	90	TR26*1.5	HN-GER20	ER20	GH35
SK40-GER20-120	3.0-13.0	35	35.5	120	TR26*1.5	HN-GER20	ER20	GH35
SK40-GER25-75	3.0-16.0	40	40.5	75	TR32*1.5	HN-GER25	ER25	GH40
SK40-GER25-90	3.0-16.0	40	40.5	90	TR32*1.5	HN-GER25	ER25	GH40
SK40-GER25-120	3.0-16.0	40	40.5	120	TR32*1.5	HN-GER25	ER25	GH40
SK40-GER32-75	3.0-20.0	48	48.5	75	TR40*1.5	HN-GER32	ER32	GH48
SK40-GER32-90	3.0-20.0	48	48.5	90	TR40*1.5	HN-GER32	ER32	GH48
SK40-GER32-120	3.0-20.0	48	48.5	120	TR40*1.5	HN-GER32	ER32	GH48

SK50-GER16-105	3.0-10.0	30	30.5	105	TR22*1.5	HN-GER16	ER16	GH30
SK50-GER16-135	3.0-10.0	30	30.5	135	TR22*1.5	HN-GER16	ER16	GH30
SK50-GER16-165	3.0-10.0	30	30.5	165	TR22*1.5	HN-GER16	ER16	GH30
SK50-GER20-105	3.0-13.0	35	35.5	105	TR26*1.5	HN-GER20	ER20	GH35
SK50-GER20-135	3.0-13.0	35	35.5	135	TR26*1.5	HN-GER20	ER20	GH35
SK50-GER20-165	3.0-13.0	35	35.5	165	TR26*1.5	HN-GER20	ER20	GH35
SK50-GER25-105	3.0-16.0	40	40.5	105	TR32*1.5	HN-GER25	ER25	GH40
SK50-GER25-135	3.0-16.0	40	40.5	135	TR32*1.5	HN-GER25	ER25	GH40
SK50-GER25-165	3.0-16.0	40	40.5	165	TR32*1.5	HN-GER25	ER25	GH40
SK50-GER32-105	3.0-20.0	48	48.5	105	TR40*1.5	HN-GER32	ER32	GH48
SK50-GER32-135	3.0-20.0	48	48.5	135	TR40*1.5	HN-GER32	ER32	GH48
SK50-GER32-165	3.0-20.0	48	48.5	165	TR40*1.5	HN-GER32	ER32	GH48

Stype of Nuts	Model Number	D	L	M	Spanner
GER	HN-GER16	30	24.7	TM22*1.5	GER16
	HN-GER20	35	25.5	TM26*15	GER20
	HN-GER25	40	25.9	TM32*1.5	GER25
	HN-GER32	48	26.6	TM40*1.5	GER32
	HN-GER11MINI	16	11.3	M14*0.75	GER11MINI
	HN-GER16MINI	25	20.5	M19*1.0	GER16MINI
	HN-GER20MINI	30	21.8	M24*1.0	GER20MINI
	HN-GER25MINI	35	23	M30*1.0	GER25MINI

Ⅳ. Overview for HIPPSC Products

1. SK40 High speed tool holder with righ GER collet and G circle spanner.

2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.

3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.

4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.

6. Tool Holders/Arbors/Shanks for Mirror Finishing.

7. Morse Taper/Tapering Tool Holders/Shanks.

8. Face Milling Adapters/Tool Holders/Arbors/Shanks.

9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

10. Torque Floating Tap/Tapping Chuck and Collet.

11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.

13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.

14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

15. Edge finder/Tool Holder Tightening Fixture/Table.

16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.

17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

18. Cutterhead/ Cutter heard/bar, face milling cutter.

19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

CNC Cutting ER Tool Holder Thread SK40 GER20 For Finishing With Super Precisoin

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
