CNC ER Tool Holders For Engraving , MINI S20T High Speed Milling With Pull Stud

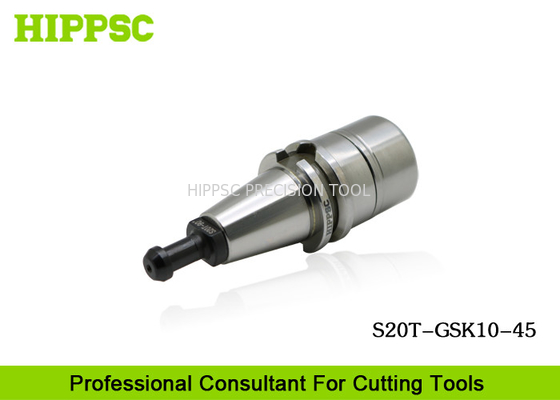

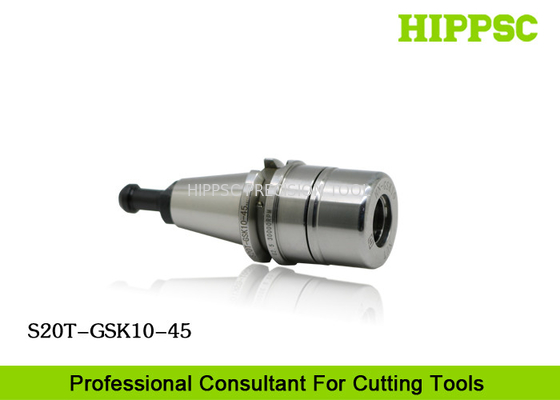

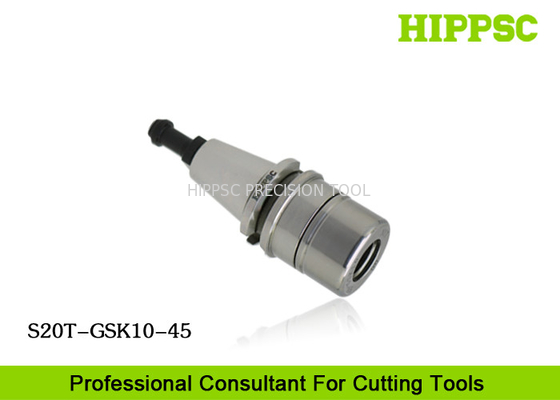

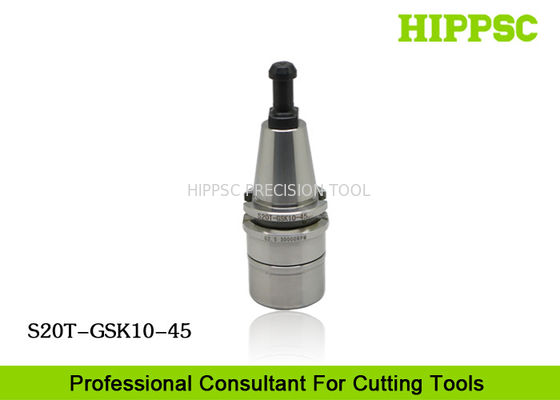

Large Image : CNC ER Tool Holders For Engraving , MINI S20T High Speed Milling With Pull Stud

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	S20T-GSK10-45

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	S20T	Product Type:	High Speed Tool Holder
Runing Accuracy:	0.005mm	Machining:	Milling And Presision Machining
Material:	Special Steel	Taper:	7:24
Highlight:	collet tool holder , drill Tool Holder

CNC ER Tool Holders For Engraving , MINI S20T High Speed Milling With Pull Stud

Ⅰ. Features And Advantages

Suitable for using on engraving and milling machining, high speed, low running noise
Little weight, machining quickly and trippingly for die, electronic parts, plastics and PCB in high speed.
Installating easily and quickly, save work time and cost.
High stability and accuracy, result in high surface quality of workpiece.

Ⅱ. Technical Parametes

Product Name	Tool Holder For Engraving and Milling
Spindle Type	S20T
Clamping Range	(2,2.25,2.5,2.75,3,3.5,4,4.5,5,5.5,6,6.5,7,7.5,8,8.5,9,9.5,10) mm
Runout	<0.005mm
Processing Type	High speed and precision machining.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

CNC ER Tool Holders For Engraving , MINI S20T High Speed Milling With Pull Stud

Standard Items

Model Number	d	D1	D2	D3	L1	L2	M	Collet	Nut	Spanner
10T-GSK6-45	2.0-6.0	19.5	20	23	45	34	M15.5*1.0	SK6	HN-GSK6	GH19
10T-GSK10-45	3.0-10.0	27.1	27.6	23	45	34	M21.5*1.0	SK10	HN-GSK10	GH27
15T-GSK6-45	2.0-6.0	19.5	20	27	45	32.5	M15.5*1.0	SK6	HN-GSK6	GH19
15T-GSK10-45	3.0-10.0	27.1	27.6	27	45	32.5	M21.5*1.0	SK10	HN-GSK10	GH27
S20T-GSK6-45	2.0-6.0	19.5	20	30	45	32.5	M15.5*1.0	SK6	HN-GSK6	GH19
S20T-GSK10-45	3.0-10.0	27.1	27.6	30	45	32.5	M21.5*1.0	SK10	HN-GSK10	GH27
25T-GSK6-45	2.0-6.0	19.5	20	35	45	30	M15.5*1.0	SK6	HN-GSK6	GH19
25T-GSK10-45	3.0-10.0	27.1	27.6	35	45	30	M21.5*1.0	SK10	HN-GSK10	GH27
25T-GSK16-45	3.0-16.0	40	40.5	35	45	30	M32.0*1.5	SK16	HN-GSK16	GH40

GSK Nut

Type of Nut	Part Number	D	L	M	Spanner
GSK Nuts	HN-GSK6	19.5	21.3	M15.5*1.0	GSK6
	HN-GSK10	27.1	24	M21.5*1.0	GSK10
	HN-GSK13	33	24	M27*1.0	GSK13
	HN-GSK16	40	31	M32*1.5	GSK16
	HN-GSK20	48	50	M40*1.0	GSK20
	HN-GSK25	55	37.5	M45*1.5	GSK25

Ⅳ. Overview for HIPPSC Products

1.    S20T-GSK10-45 Engraving and Milling Chucks.
2.    High Speed ER, SK, GER, GSK Tool Holder, Shank, Arbor for CNC Working.
3.    Heat Shrink-Fit / Shrinking Tool Holders.
4.    Threaded, Screw-on, Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders / Arbors / Shanks for Mirror Finishing.
7.    Morse Taper, Tapering Tool Holders.
8.    Face Milling Adapters / Tool Holders / Arbors / Shanks.
9.    Drilling / Driller Chuck Holders / Tool Holders / Shanks / Arbor.
10.  Torque Floating Tap / Tapping Chuck and Collet.
11.   ER / SK / Hydraulic / Pull Type / Floating tapping Collet
12. Torque / Round/Circle Spanners/Wrenches/Keys.
13. ER / SK / Pull Type / Shrink fit Extension Rod / Tool bit.
14. Nuts / Pull stud / Bolt Blind rivet / Spindle taper wiper /Test bar / Tester.
15. Edge finder / Tool Holder Tightening Fixture / Table.
16. PCD / Milling / Boring / PCBN Inserts / Blade / Cutters / Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT / BBT / SK / CAT / HSK / ISO / NT Spinder Type Tool Holder.
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
