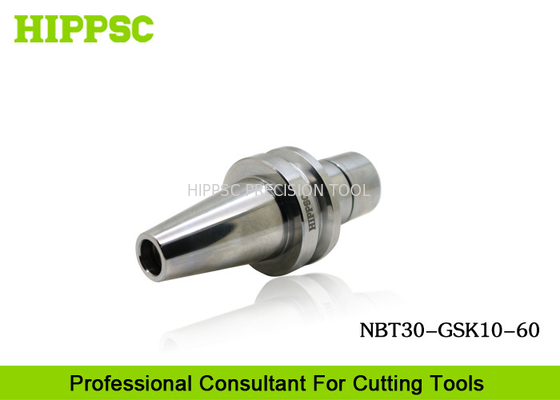

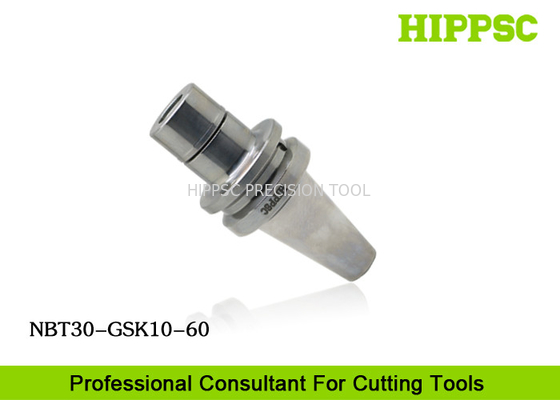

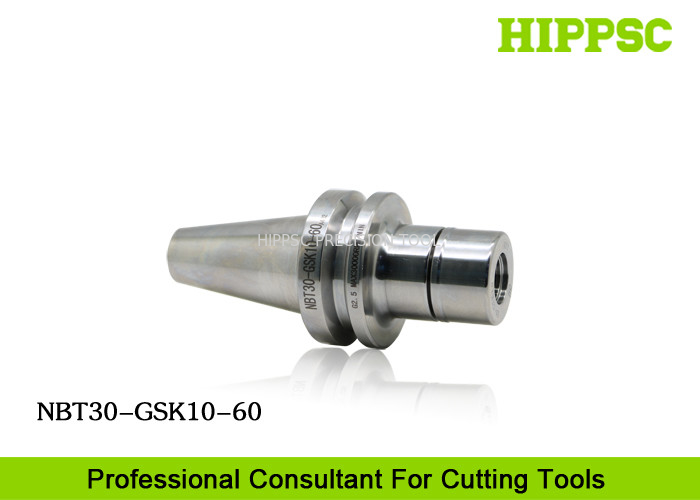

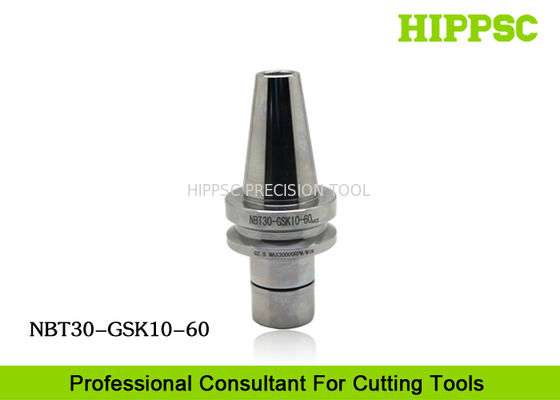

CNC Precision ER Collet Tool Holder Carving Milling Machine NBT30 GSK10

Large Image : CNC Precision ER Collet Tool Holder Carving Milling Machine NBT30 GSK10

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	NBT30-GSK10-60

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	NBT30	Product Type:	High Speed Tool Holder
Runing Accuracy:	0.005mm	Machining:	Milling And Presision Machining
Material:	Special Steel	Taper:	7:24
Highlight:	collet tool holder , cnc lathe tool holder

CNC Precision ER Collet Tool Holder Carving Milling Machine NBT30 GSK10

Ⅰ. Features And Advantages

Suitable for using on engraving and milling machining, high speed, low running noise
Little weight, machining quickly and trippingly for die, electronic parts, plastics and PCB in high speed.
Easy and quick installation, save work time and cost.
High stability and high accuracy, contribute to high surface quality of work piece.
Not suitable for heavy duty machining.

Ⅱ. Technical Parametes

Product Name	NBT30 Engraving and Milling Tool Holder
Spindle Type	BT30
Clamping Range	(2,2.25,2.5,2.75,3,3.5,4,4.5,5,5.5,6,6.5,7,7.5,8,8.5,9,9.5,10) mm
Runout	<0.005mm
Processing Type	High speed and precision machining.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

CNC Precision ER Collet Tool Holder Carving Milling Machine NBT30 GSK10

GSK Nuts

Type of Nut	Part Number	D	L	M	Spanner
GSK Nut	HN-GSK6	19.5	21.3	M15.5*1.0	GSK6
	HN-GSK10	27.1	24	M21.5*1.0	GSK10
	HN-GSK13	33	24	M27*1.0	GSK13
	HN-GSK16	40	31	M32*1.5	GSK16
	HN-GSK20	48	50	M40*1.0	GSK20
	HN-GSK25	55	37.5	M45*1.5	GSK25

Standard Items

Model Number

Nut

Collet

Collet Puller

Spanner

Lock Fixture

NBT30-GSK10-60

3.0-10.0

27.1

27.6

M21.5*1.0

HN-GSK10

SK10

CX10

GH27

NBT30

NBT30-GSK16-60

3.0-16.0

40.5

M32*1.5

HN-GSK16

SK16

CX16

GH40

NBT30

Ⅳ. Overview for HIPPSC Products

1.    NBT30-GSK10-60 Engraving and Milling Chucks.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   From HIPPSC, You are exptected to receive one-stop considerate and satisfying service.
