Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | ISO25 | Product Type: | ISO25 Engraving And Milling Holder |
|---|---|---|---|
| Runing Accuracy: | 0.005mm | Machining: | Milling And Presision Machining |
| Material: | 20CrNiMo | Taper Tolerance: | AT3 |
| Highlight: | collet tool holder,drill Tool Holder |
||
CNC Milling Machine ER Collet Tool Holder 20CrNiMo Electronics Processing
Ⅰ. Features And Advantages
Ⅱ. Technical Parametes
|
Product Name |
Engraving and Milling Tool Holder |
|
Spindle Type |
ISO25 |
|
Clamping Range |
(2,3,4,5,6,7,8,9,10,11,12,13) mm |
|
Runout |
<0.005mm |
|
Processing Type |
High speed and precision machining. |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Products List
| Model Number | d | D1 | D2 | L1 | L2 | M | Nut | Collet | Spanner | Locking Device |
| ISO20-ER16-35MS | 3.0-10.0 | 22 | 33 | 35 | 27 | M19*1.0 | HN-ER16MS | ER16 | HS-ER16MS | ISO20 |
| ISO20-ER20-35MS | 3.0-13.0 | 28 | 33 | 35 | 27 | M24*1.0 | HN-ER20MS | ER20 | HS-ER20MS | ISO20 |
| ISO25-ER16-35MS | 3.0-10.0 | 22 | 37 | 35 | 27 | M19*1.0 | HN-ER16MS | ER16 | HS-ER16MS | ISO25 |
| ISO25-ER20-35MS | 3.0-13.0 | 28 | 37 | 35 | 27 | M24*1.0 | HN-ER20MS | ER20 | HS-ER20MS | ISO25 |
| ISO25-ER25-35MS | 3.0-16.0 | 35 | 37 | 35 | 27 | M30*1.0 | HN-ER25MS | ER25 | HS-ER25MS | ISO25 |
| ISO30-ER16-60MS | 3.0-10.0 | 22 | 50 | 60 | 44.1 | M19*1.0 | HN-ER16MS | ER16 | HS-ER16MS | ISO30 |
| ISO30-ER20-60MS | 3.0-13.0 | 28 | 50 | 60 | 44.1 | M24*1.0 | HN-ER20MS | ER20 | HS-ER20MS | ISO30 |
| ISO30-ER25-60MS | 3.0-16.0 | 35 | 50 | 60 | 44.1 | M30*1.0 | HN-ER25MS | ER25 | HS-ER25MS | ISO30 |
ER Collet
| ER20 | ER20-2 | 1.0-2.0 |
| -3 | 2.0-3.0 | |
| -4 | 3.0-4.0 | |
| -5 | 4.0-5.0 | |
| -6 | 5.0-6.0 | |
| -7 | 6.0-7.0 | |
| -8 | 7.0-8.0 | |
| -9 | 8.0-9.0 | |
| -10 | 9.0-10.0 | |
| -11 | 10.0-11.0 | |
| -12 | 11.0-12.0 | |
| -13 | 12.0-13.0 |
ER Nut
| Type of Nuts | Model No. | D | L | M | Spanner | |
| ER NUT |
A | HN-ER11A | 19 | 11.5 | M14*0.75 | ER11A |
| HN-ER16A | 28 | 17 | M22*1.5 | ER16A | ||
| HN-ER20A | 34 | 19 | M25*1.5 | ER20A | ||
| M | HN-ER8M | 12 | 10.8 | M10*0.75 | ER8M | |
| HN-ER11M | 16 | 12 | M13*0.75 | ER11M | ||
| HN-ER16M | 22 | 18 | M19*1.0 | ER16M | ||
| HN-ER20M | 28 | 19 | M24*1.0 | ER20M | ||
| HN-ER25M | 35 | 20 | M30*1.0 | ER25M | ||
| UM | HN-ER25UM | 42 | 20 | M32*1.5 | ER25UM | |
| HN-ER32UM | 50 | 23 | M40*1.5 | ER32UM | ||
| HN-ER40UM | 63 | 26 | M50*1.5 | ER40UM | ||
| HN-ER50UM | 78 | 35.3 | M64*2.0 | ER50UM | ||
Ⅳ. Overview for HIPPSC Products

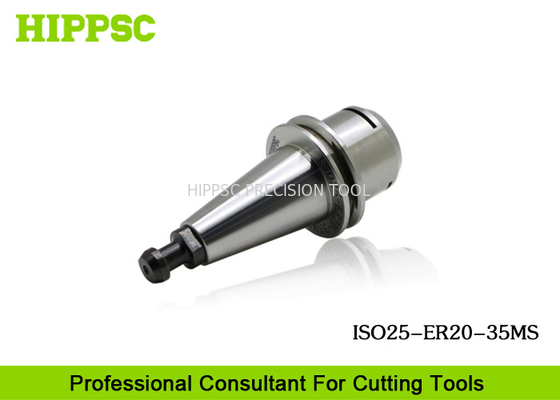

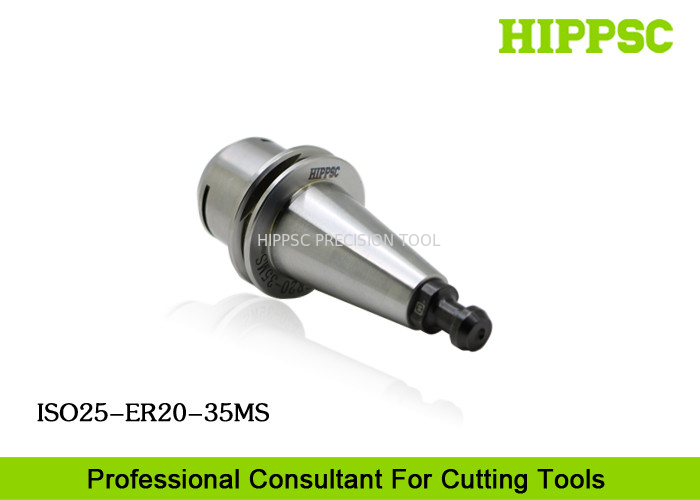

1. ISO25-ER20-35MS Engraving and Milling Chucks.
2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6. Tool Holders/Arbors/Shanks for Mirror Finishing.
7. Morse Taper/Tapering Tool Holders/Shanks.
8. Face Milling Adapters/Tool Holders/Arbors/Shanks.
9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10. Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.
