CNC curving and milling Tool Holder , ISO25 Tool Holder Ultra High Speed And Presision

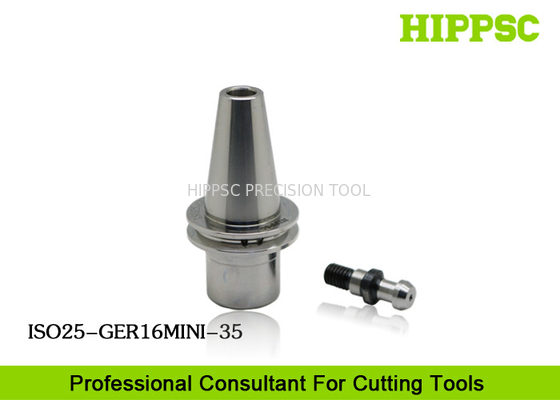

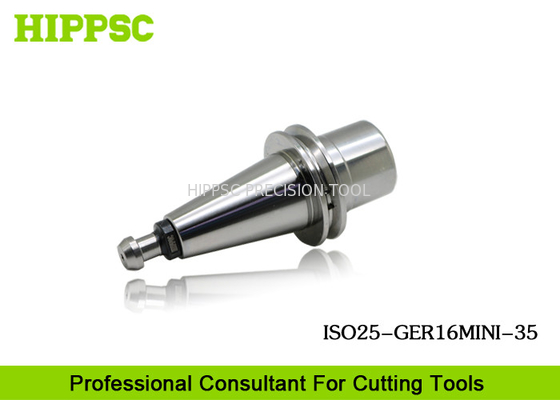

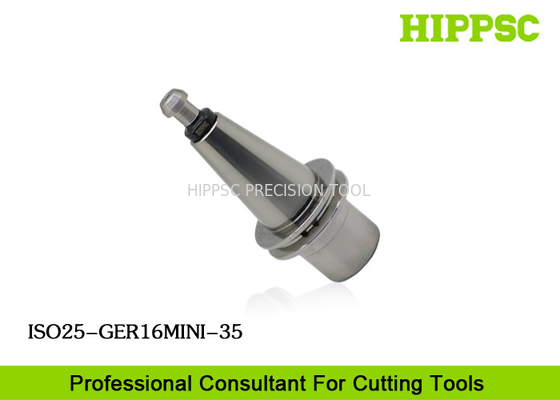

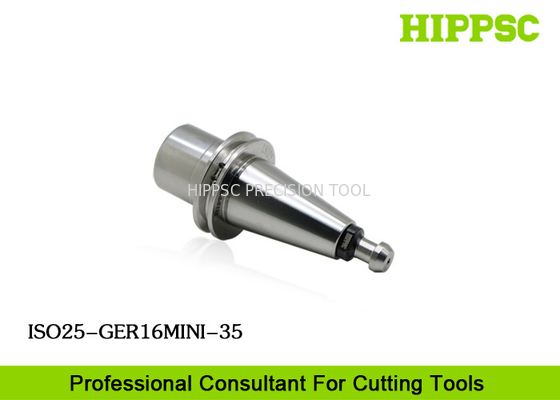

Large Image : CNC curving and milling Tool Holder , ISO25 Tool Holder Ultra High Speed And Presision

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	ISO25-GER16MINI-35

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	ISO25	Product Type:	High Speed Engraving And Milling Holder
Runing Accuracy:	0.003mm	Machining:	Milling And Presision Machining
Material:	20CrNiMo	Taper:	7:24
Highlight:	collet tool holder , cnc lathe tool holder

Die PCB CNC Lathe Tool Holder , ISO25 Tool Holder Ultra High Speed And Presision

Ⅰ. Features And Advantages

Suitable for using on engraving and milling machining, high speed, low running noise
Little weight, machining quickly and trippingly for die, electronic parts, plastics and PCB in high speed.
Easy installation, save work time and cost.
High stability and high accuracy, contribute to high surface quality of work piece.
Not suitable for hard heavy machining and cutting.

Ⅱ. Technical Parametes

Product Name	ISO25 Engraving and Milling Tool Holder
Spindle Type	ISO25
Clamping Range	(2,3,4,5,6,7,8,9,10) mm
Runout	<0.003mm
Processing Type	Ultra High speed Machining
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

CNC curving and milling Tool Holder , ISO25 Tool Holder Ultra High Speed And Presision

Standard Items

Model Number	d	D1	D2	D3	L1	L2	M	Nut	Collet	Spanner	Locking Device
ISO20-GER16MINI-35	3.0-10.0	25	25.5	33	35	26.2	M20*1.0	HN-GER16MINI	ER16	GH25	ISO20
ISO25-GER16MINI-35	3.0-10.0	25	25.5	37	35	26.2	M20*1.0	HN-GER16MINI	ER16	GH25	ISO25
ISO25-GER20MINI-35	3.0-13.0	30	30.5	37	35	26.2	M24*1.0	HN-GER20MINI	ER20	GH30	ISO25
ISO30-GER20MINI-60	3.0-13.0	25	25.5	50	60	40.9	M24*1.0	HN-GER20MINI	ER20	GH25	ISO30
ISO30-GER25MINI-60	3.0-16.0	35	35.5	50	60	40.9	M30*1.0	HN-GER25MINI	ER25	GH35	ISO30

Nuts

CNC curving and milling Tool Holder , ISO25 Tool Holder Ultra High Speed And Presision

Stype of Nuts	Model Number	D	L	M	Spanner
GER	HN-GER16	30	24.7	TM22*1.5	GER16
	HN-GER20	35	25.5	TM26*15	GER20
	HN-GER25	40	25.9	TM32*1.5	GER25
	HN-GER32	48	26.6	TM40*1.5	GER32
	HN-GER11MINI	16	11.3	M14*0.75	GER11MINI
	HN-GER16MINI	25	20.5	M19*1.0	GER16MINI
	HN-GER20MINI	30	21.8	M24*1.0	GER20MINI
	HN-GER25MINI	35	23	M30*1.0	GER25MINI

Ⅳ. Overview for HIPPSC Products

1.    ISO25-GER16MINI-35 Engraving and Milling Chucks.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
