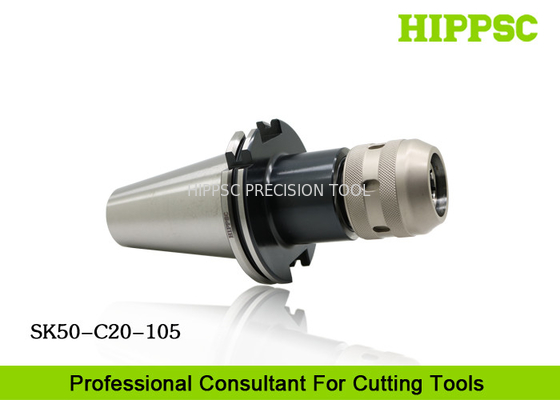

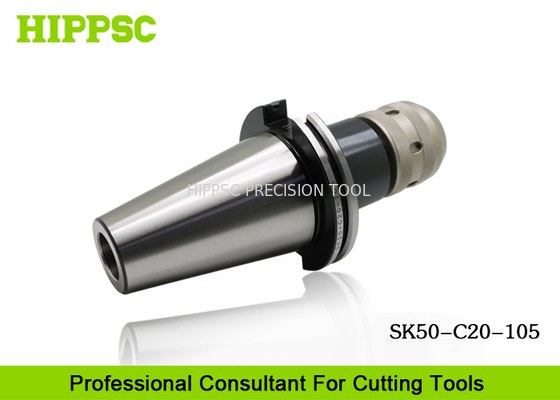

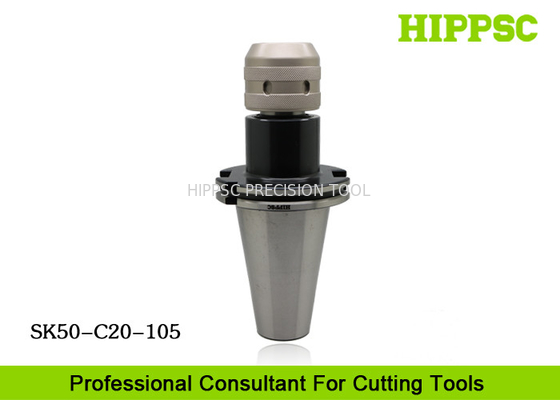

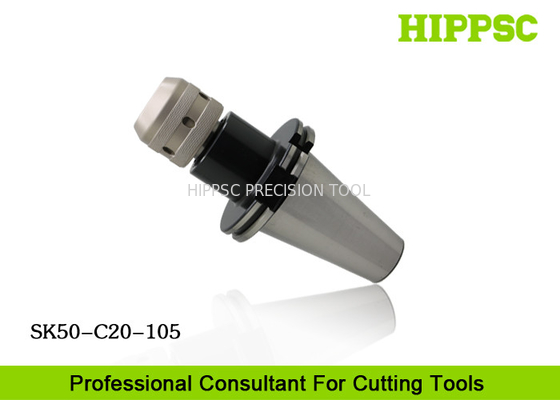

Face / Power Tool Holder , SK 50 Cnc Machine Tool Holders With HRC58~60° Hardness

Large Image : Face / Power Tool Holder , SK 50 Cnc Machine Tool Holders With HRC58~60° Hardness

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	SK50-C20-105

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	SK50 (DAT, DIN6987, DV, JT)	OEM/ODM:	Yes
Product Type:	Power Tooling Holder	Runout:	0.003mm
Balance:	G6.3, 15000RPM	Cutting Type:	Turing, Milling, Boring, Drilling
Material:	20CrNiMo	Application:	Harsh Cutting And Semi-Precision Machining
Highlight:	boring bar tool holder , milling machine tool holders

Face Milling Power Tool Holders For CNC Working SK 50 Spindle Made Of 20CrNiMo

Ⅰ. Features And Advantages

1. Built-in oil groove, giving better rigidity and durability.

2. Quill rollers, powerful clamping force, cutter doesn't drop.

3. Super subzero treatment to eliminate austenite vestigital, avoiding deformation.

4. Easy installing and change quickly, reduce cost.

5. Able to machining deep hole and groove.

Ⅱ. Technical Parametes

Product Name	Power tool holder
Spindle Type	SK50
Clamping Range	6/8/10/12/16mm
Runout	0.003mm
Processing Type	Rough and semi-precision machining
Product Material	20CrNiMo
Hardness	HRC58~60°

Ⅲ. Product Introduction

Products Structure

Face / Power Tool Holder , SK 50 Cnc Machine Tool Holders With HRC58~60° Hardness

Standard Products List

Model number	D	D1	L1	Collet	Spanner	Weight
BT30-C20-75	20	53	75	C20	HS-C20	1.80
BT30-C25-80	25	62	80	C25	HS-C25	1.95
BT30-C32-100	32	70	100	C32	HS-C32	2.15
BT40-C20-80	20	53	80	C20	HS-C20	2.40
BT40-C25-80	25	62	80	C25	HS-C25	2.55
BT40-C32-105	32	70	105	C32	HS-C32	2.50
BT40-C32-135			135			2.80
BT40-C32-165			165			3.50
BT50-C20-105	20	53	105	C20	HS-C20	4.50
BT50-C25-105	25	62	105	C25	HS-C25	4.60
BT50-C32-105	32	70	105	C32	HS-C32	4.60
BT50-C32-135			135			5.60
BT50-C32-165			165			6.40
BT50-C42-115	45	92	115	C42	HS-C42	6.00
BT50-C42-135			135			7.20
BT50-C42-165			165			8.60

Collet catalogue

Model No.	CLAMP RANGE	D	L
C20	C20-6,8,10,12,16	26	55.1
C25	C25-6,8,10,12,16,20	30	63
C32	C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1"	38	70
C42	C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4"	48	75

Ⅳ. Overview for HIPPSC Products

ER/SK/MINI/ Tool Holder/Shank.
Shrinking/Heat Expansion Tool Holders/Shanks.
Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
Back Lock/Side Lock Tool Holders/Arbors/Shanks.
Mirror Finishing Type Tool Holders/Arbors/Shanks.
Morse Taper/Tapering Tool Holders/Arbors/Shanks.
Face Milling Adapters/Cutter And Inserts/Blades.
Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
Torque Floating Tap/Tapping/Drilling Chuck.
Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Tester.
ER/SK/Hydraulic/Back lock/Torque tapping Collets.
Torque/ Round/Circle Spanners/Wrenches/Keys.
ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
Edge finder/Tool Holder Tightening Fixture/Table.
Inserts/Milling/BoringInserts/PCBN/PCD Blade/Cutters.
Quick change Ball nose/Triangle/Pentagon.
BT/BBT/SK/CAT/HSK/ISO/NT CNC Machine Arbor.
Tool Holder Concentricity Measuring Equipment.

Ⅴ. Shipmen

For bulk orders, we suggest below transportation ways, cost effective

By Liner Ship; By Air; By Train/Truck.

For small and urgent orders, we suggest customers to use International Express as below

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1. Abundant Stocks of Standard Products Guarantee On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked Strictly and Carefully.

3.   IQC and OQC Operater Inspect Products' Quality and Specification.
4.   Using Professional Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   All Production with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service, Produce To Customer's Need/Requirement.
3.   One-Stop Considerate and Satisfying and Consultation Service.

4. Warranty with 12 Months, Free Repair Service(Shipping Cost Not Indluded).
