| Spindle Type: | NT30 | Product Type: | DIN2080/NT/ST Power Tool Holder |
|---|---|---|---|
| Runout: | 0.003mm | Cutting Type: | Turing, Milling, Boring, Drilling |
| Material: | 20CrNiMo | Application: | Heavy Cutting And Semi-Precision Finishing |
| Clamping Range: | 4-42 | Storage Rate: | Sufficient |
| Highlight: | boring bar tool holder,milling machine tool holders |
||

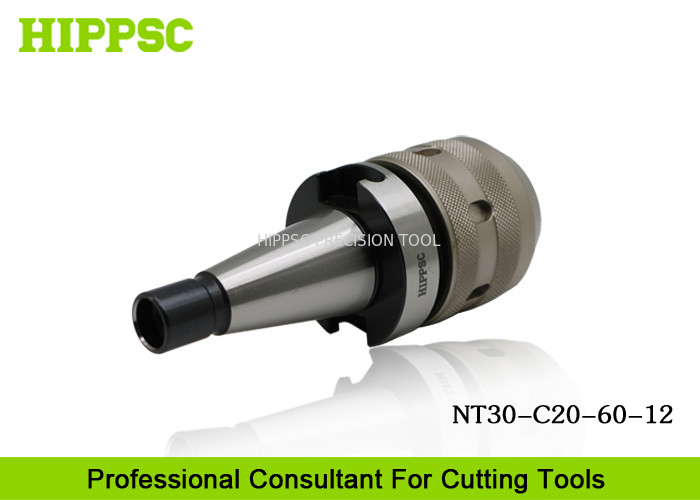

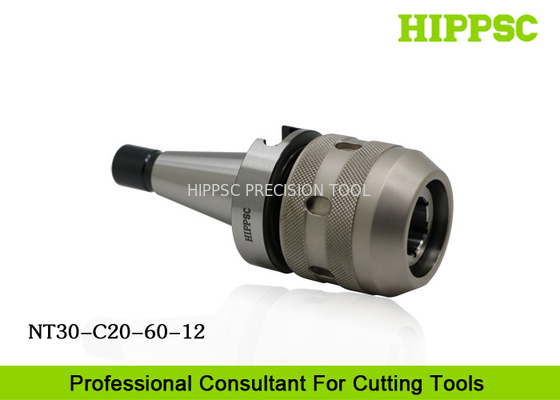

Adjustable Power Tool Holder Internal Straight Sleeve , NT 30 Tool Holders
Ⅰ. Features And Advantages
1. Internal oil groove, for the best combination of rigidity and durability.
2. Quill rollers, powerful clamping force, cutter doesn't drop.
3. Super subzero treatment to eliminate austenite vestigital, avoiding deformation.
4. Cost saving and nice performance.
5. Long working life and long precesion.
Ⅱ. Technical Parametes
|
Product Name |
Power tool holder |
|
Spindle Type |
NT30/DIN2080/ST |
|
Clamping Range |
6/8/10/12/16 mm |
|
Runout |
0.003mm |
|
Processing Type |
Rough and semi-rough machining |
|
Product Material |
20CrNiMo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Price List
| Model Number | d1 | D1 | d1 | L1 | DRAW BOLT | Collet | Spanner | |
| INCH | METRIC | |||||||
| NT30-C20-60 | 20 | 53 | 6-20 | 60 | 1/2"-12UNC | M12*1.75 | C20 | HS-C20 |
| NT40-32-70 | 32 | 70 | 6-32 | 70 | 5/8"-11UNC | M16*2.0 | C32 | HS-C32 |
| NT50-C32-90 | 32 | 70 | 6-32 | 90 | 1"-8UNC | M24*3.0 | C32 | HS-C32 |
| NT50-C42-90 | 42 | 92 | 6-42 | 90 | 1"-8UNC | M24*3.0 | C42 | HS-C42 |
| NT60-C42-120 | 42 | 95 | 6-42 | 120 | 11/4"-7UNC | M30*3.5 | C42 | HS-C42 |
Collet
| Model No. | Size | D | L | ||||
| C20 | C20-6,8,10,12,16 | 26 | 55.1 | ||||
| C25 | C25-6,8,10,12,16,20 | 30 | 63 | ||||
| C32 | C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1" | 38 | 70 | ||||
| C42 | C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4" | 48 | 75 | ||||
