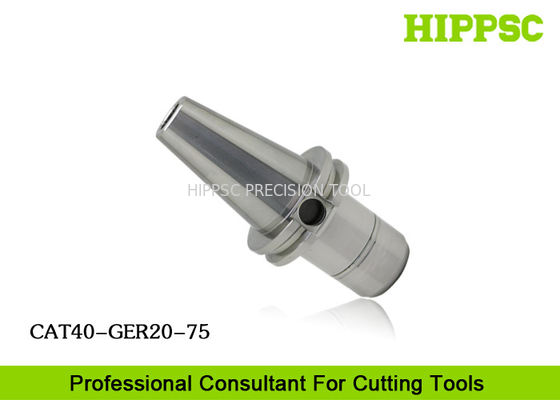

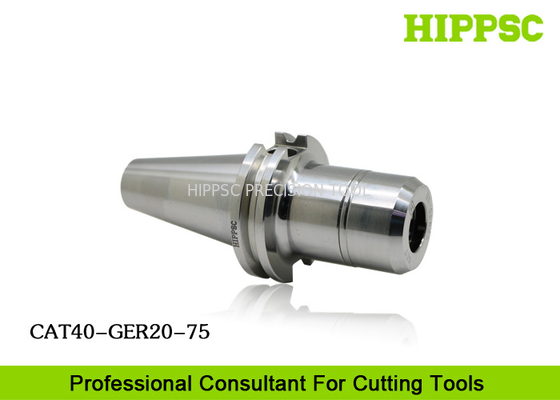

ISO9001 listed ER CAT 40 Tool Holder With GER Collet For High Speed Machinig

Large Image : ISO9001 listed ER CAT 40 Tool Holder With GER Collet For High Speed Machinig

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	CAT40-GER20-75

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	CAT40	OEM/ODM:	Yes
Product Type:	CAT40 High Speed GER20 Holder	Runing Accuracy:	0.003mm
Machining:	Turing, Milling, Boring, Drilling, Finishing	Material:	Special Steel
Taper:	7:24	Clamp Nut:	GER20 Ring Type
Highlight:	collet tool holder , drill Tool Holder

Drill ER Collet CAT 40 Tool Holders With GER Collet For High Speed Machinig

Ⅰ. Features And Advantages

50% More torque forcer though T bolts, lock cutting tools tightly.
GER ring nut reduce wind-resistance and noise.
Maxmum speed > 30000rpm.
Suitable for 7:24 lathe and machining center.
Work with patented GER collet, developed by HIPPSC.
High quality ER collect 100% touch conical surface, good concentricity.
Wonderful repeat accuracy.
High regidity and high clamping force.

Ⅱ. Technical Parametes

Product Name	CAT40 GER High Speed Tool Hoder
Spindle Type	CAT40
Clamping Range	2mm~13 mm
Runout	0.003mm
Processing Type	High speed machining and finishing
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

ISO9001 listed ER CAT 40 Tool Holder With GER Collet For High Speed Machinig

Standard Items

Model Number	D	C	L	L1 Min	L1 Max	Nut	Collet	Spanner
CAT40-GER16-75	3.0-10.0	30	30.5	75	48	HN-GER16	ER16	GH30
CAT40-GER16-90	3.0-10.0	30	30.5	90	63	HN-GER16	ER16	GH30
CAT40-GER16-120	3.0-10.0	30	30.5	120	93	HN-GER16	ER16	GH30
CAT40-GER16-150	3.0-10.0	30	30.5	150	123	HN-GER16	ER16	GH30
CAT40-GER20-75	3.0-13.0	35	35.5	75	48	HN-GER20	ER20	GH35
CAT40-GER20-90	3.0-13.0	35	35.5	90	63	HN-GER20	ER20	GH35
CAT40-GER20-120	3.0-13.0	35	35.5	120	93	HN-GER20	ER20	GH35
CAT40-GER20-135	3.0-13.0	35	35.5	135	108	HN-GER20	ER20	GH35
CAT40-GER20-150	3.0-13.0	35	35.5	150	123	HN-GER20	ER20	GH40
CAT40-GER25-75	3.0-16.0	40	40.5	75	48	HN-GER25	ER25	GH40
CAT40-GER25-90	3.0-16.0	40	40.5	90	63	HN-GER25	ER25	GH40
CAT40-GER25-120	3.0-16.0	40	40.5	120	93	HN-GER25	ER25	GH40
CAT40-GER25-150	3.0-16.0	40	40.5	150	123	HN-GER25	ER25	GH40
CAT40-GER32-75	3.0-20.0	48	48.5	75	48	HN-GER32	ER32	GH48
CAT40-GER32-90	3.0-20.0	48	48.5	90	63	HN-GER32	ER32	GH48
CAT40-GER32-120	3.0-20.0	48	48.5	120	93	HN-GER32	ER32	GH48
CAT40-GER32-150	3.0-20.0	48	48.5	150	123	HN-GER32	ER32	GH48
CAT50-GER16-105	3.0-10.0	30	30.5	105	65	HN-GER16	ER16	GH30
CAT50-GER16-135	3.0-10.0	30	30.5	135	97	HN-GER16	ER16	GH30
CAT50-GER16-165	3.0-10.0	30	30.5	165	127	HN-GER16	ER16	GH30
CAT50-GER20-105	3.0-13.0	35	35.5	105	65	HN-GER20	ER20	GH35
CAT50-GER20-135	3.0-13.0	35	35.5	135	97	HN-GER20	ER20	GH35
CAT50-GER20-165	3.0-13.0	35	35.5	165	127	HN-GER20	ER20	GH35
CAT50-GER25-105	3.0-16.0	40	40.5	105	65	HN-GER25	ER25	GH40
CAT50-GER25-135	3.0-16.0	40	40.5	135	97	HN-GER25	ER25	GH40
CAT50-GER25-165	3.0-16.0	40	40.5	165	127	HN-GER25	ER25	GH40
CAT50-GER25-200	3.0-16.0	40	40.5	200	162	HN-GER25	ER25	GH40
CAT50-GER32-105	3.0-20.0	48	48.5	105	65	HN-GER32	ER32	GH48
CAT50-GER32-135	3.0-20.0	48	48.5	135	97	HN-GER32	ER32	GH48
CAT50-GER32-165	3.0-20.0	48	48.5	165	127	HN-GER32	ER32	GH48
CAT50-GER32-200	3.0-20.0	48	48.5	200	162	HN-GER32	ER32	GH48

GER Nut

Stype of Nut	Model Number	D	L	M	Spanner
GER	HN-GER16	30	24.7	TM22*1.5	GER16
	HN-GER20	35	25.5	TM26*15	GER20
	HN-GER25	40	25.9	TM32*1.5	GER25
	HN-GER32	48	26.6	TM40*1.5	GER32
	HN-GER11MINI	16	11.3	M14*0.75	GER11MINI
	HN-GER16MINI	25	20.5	M19*1.0	GER16MINI
	HN-GER20MINI	30	21.8	M24*1.0	GER20MINI
	HN-GER25MINI	35	23	M30*1.0	GER25MINI

Ⅳ. Overview for HIPPSC Products

1. CAT40 High speed tool holder with ring GER collet adapting to G spanner.

2. High Speed GER, GSK Tool Holder, Shank, Arbor for CNC Working.

3. Heat Shrink-Fit, Shrinking Tool Holders.

4. Threaded Screw Tool Holders.

5. Pull type, Side Lock Tool Holders.

6. Tool Holders for Mirror Finishing.

7. Morse Taper Tool Holders.

8. Face Milling Adapters.

9. Drilling Chuck Tool Holders.

10. Torque Floating Tap/Tapping Chuck and Collet.

11. ER, SK, Hydraulic Expansion, Pull type, Floating tapping Collet.
12. Torque, Round And Hook Wrenches.

13. ER, SK, Pull type, Shrink fit Extension Rod.

14. Nuts, Pull stud, Spindle taper wiper, Test bar.

15. Edge finder, Tool Holder Tightening Fixture.

16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.

17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

18. Cutterhead/ Cutter heard/bar, face milling cutter.

19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
