| Spindle Type: | DM-M | Runout: | 0.003mm |
|---|---|---|---|
| Balance: | Available | Cutting Type: | Turing, Milling, Boring, Drilling |
| Product Type: | DM-M Theraded Chuck | Application: | Hole Making Process And Precision Finishing |
| Highlight: | milling machine cutting tools,cnc lathe cutting tools |
||

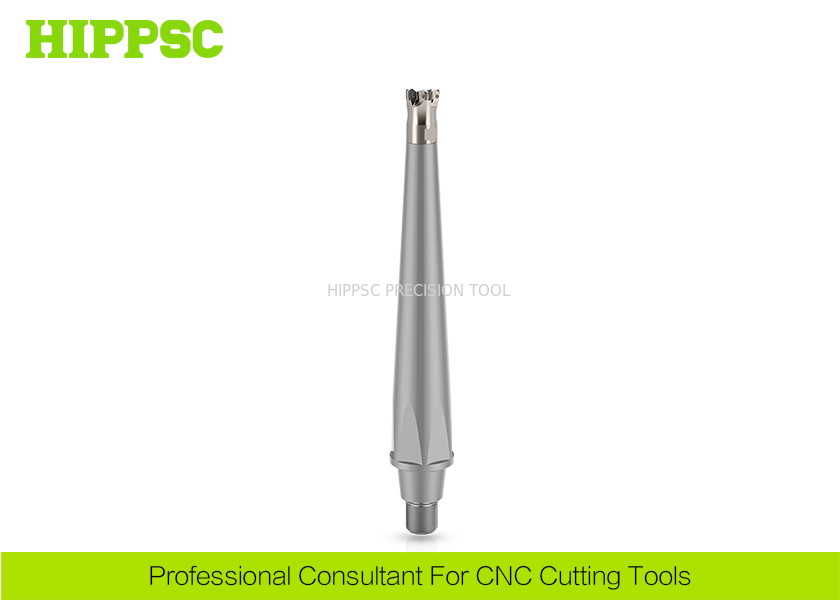

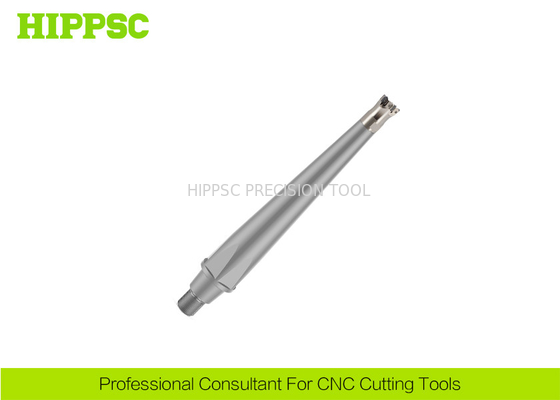

Durable Cnc Milling Cutters , CNC Turning Inserts Theraded Chuck 0.003mm Runout
Ⅰ. Features And Advantages
1. Running accuracy ≤ 0.003mm.
2. It can go down to very deep place.
3. Suitable for deep cavity processing
4. Routine drawing angle 3 degree, 5 degree, etc
5. Widely used in die, auto parts, aerospace and other industries
6. Threaded clamping, suitable for clamping replaceable tool heads, etc.
Ⅱ. Technical Parametes
|
Product Name |
DM-M Theraded Chuck |
|
Spindle Type |
DM-M |
|
Application |
Hole processing and milling |
|
Runout |
0.003 μm |
|
Processing Type |
Milling, Face mill, Finishing machining, Hole making. |
|
Product Material |
20Crnimo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Cat.No |
D1 | D2 | L1 | L2 | L3 | M1 | M2 | SW | a |
| DM10K-M06-125-A3 | 11.6 | 24 | 3 | 115 | 125 | M06 | M10 | 22 | 3° |
| DM10K-M08-90-A3 | 15.4 | 24 | 3 | 80 | 90 | M08 | M10 | 22 | 3° |
| DM10K-M10-55-A3 | 19 | 24 | 3 | 45 | 55 | M10 | M10 | 22 | 3° |
| DM10K-M06-80-A5 | 11.6 | 24 | 3 | 70 | 80 | M06 | M10 | 22 | 5° |
| DM10K-M08-60-A5 | 15.4 | 24 | 3 | 50 | 60 | M08 | M10 | 22 | 5° |
| DM10K-M10-40-A5 | 19 | 24 | 3 | 30 | 40 | M10 | M10 | 22 | 5° |
| DM20K-M08-250-A3 | 15.4 | 40 | 5 | 235 | 250 | M08 | M20 | 36 | 3° |
| DM20K-M10-215-A3 | 19 | 40 | 5 | 200 | 215 | M10 | M20 | 36 | 3° |
| DM20K-M12-165-A3 | 24 | 40 | 5 | 150 | 165 | M12 | M20 | 36 | 3° |
| DM20K-M16-120-A3 | 29 | 40 | 5 | 105 | 120 | M16 | M20 | 36 | 3° |
| DM20K-M08-155-A5 | 15.4 | 40 | 5 | 140 | 155 | M08 | M20 | 36 | 5° |
| DM20K-M10-135-A5 | 19 | 40 | 5 | 120 | 135 | M10 | M20 | 36 | 5° |
| DM20K-M12-105-A5 | 24 | 40 | 5 | 90 | 105 | M12 | M20 | 36 | 5° |
| DM20K-M16-80-A5 | 29 | 40 | 5 | 65 | 80 | M16 | M20 | 36 | 5° |
Ⅳ. Overview for HIPPSC Products
1. CNC Drilling Chucks.
2. Torque Floating Tap/Tapping Chuck.
3. Indexable PCBN/PCD Blade/Cutters/Inserts.
4. Torque/ Round/Circle Spanners/Wrenches/Keys.
5. Edge finder/Tool Holder Tightening Fixture/Table.
6. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
TNT, EMS, DHL, UPS, FedEx.
2. Customer advised
Ⅵ. Packing
With Slushing oil.
Fastened by adhesive Tape.
Packing Belt to Strap.
PE Bag Inner package.
Plastic Box to pocess abor.
Carton Box For All goods.
Ⅶ. Warehouse
1. Both IQC and OQC Guarrantee Quality.
2. Quick response and On-time dispatchment For Customers' Order, Within 2 days at soonest.
3. All Materials and Products Are Inspected Strictly and Carefully Before Shipping out.
4. Using Professional Equipment and Gauge To Exam Technical Parameters.
