Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | HSK | Taper Tolerance: | AT3 |
|---|---|---|---|
| Runout: | 0.05mm | Material: | 20CrNiMo |
| Product Type: | Drill Chuck Holder | Machining: | Hole Precesion Milling |
| Highlight: | milling machine cutting tools,cnc lathe cutting tools |
||

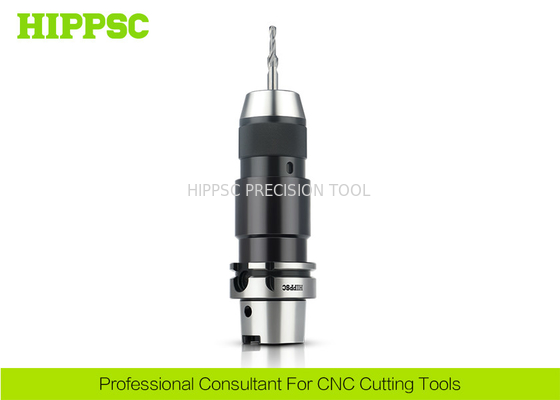

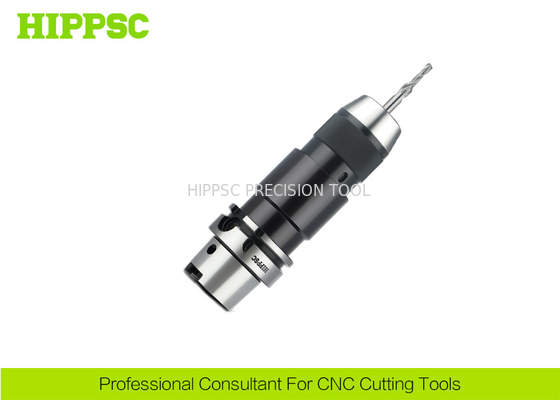

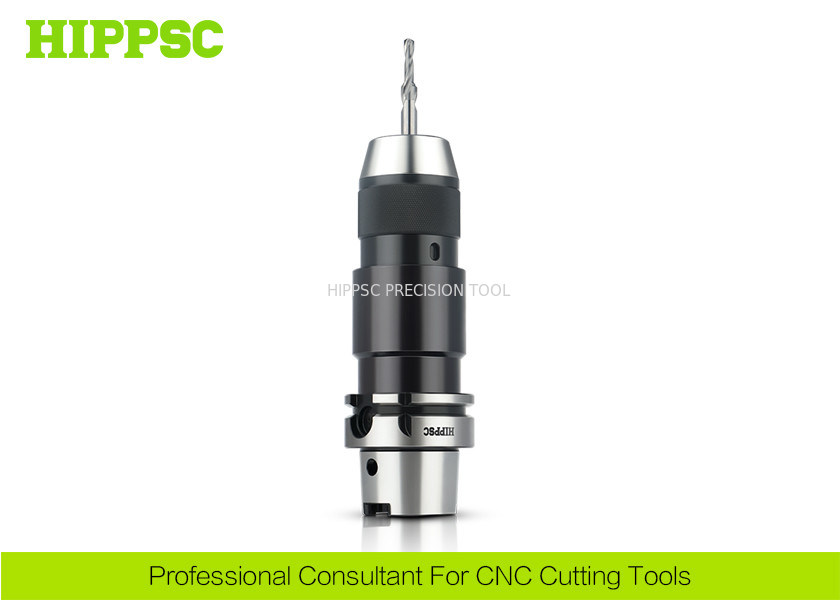

Material 20Crnimo Cnc Machine Cutting Tools Drill Chuck Holder HSK AT3 Taper Tolerance
Ⅰ. Features And Advantages
1. Drilling, endmiling, reaming.
2. High Precision and Wear Resistance
3. Simple clamping, easy operation, fast and convenient
4. Titanium coated three claws, durable, hardened and quenched
5. Strong clamping force, automatic clamping, clamping without gap
6. High precision, many specifications, high quality, sufficient stock
Ⅱ. Technical Parametes
|
Product Name |
Drill Chuck Holder |
|
Spindle Type |
HSK |
|
Clamping Range |
0.3~16 mm |
|
Runout |
0.05mm |
|
Processing Type |
Face Milling, specular chamfering |
|
Product Material |
20Crnimo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Standard Items
Cat. No |
D1 | D2 | L1 | L2 | L3 | R | MT |
| HSK50A-APU13-135 | 50 | 1.0～13 | 12.5 | 135 | 69.5 | 0.05 | MTA3 |
| HSK63A-APU8-135 | 38 | 0.3～8 | 8.5 | 135 | 84.5 | 0.05 | MTA2 |
| HSK63A-APU13-135 | 50 | 1.0～13 | 12.5 | 135 | 69.5 | 0.05 | MTA3 |
| HSK100A-APU8-135 | 38 | 0.3～8 | 8.5 | 135 | 84.5 | 0.05 | MTA2 |
| HSK100A-APU13-135 | 50 | 1.0～13 | 12.5 | 135 | 69.5 | 0.05 | MTA3 |
Ⅳ. Overview for HIPPSC Products
1. Morse Taper/Tapering Tool Holders/Shanks.
2. Torque Floating Tap/Tapping Chuck and Collet.
3. Torque/ Round/Circle Spanners/Wrenches/Keys.
4. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
5. ER/SK/Hydraulic/Back lock/Floating tapping Collet
6. Face Milling Adapters/Tool Holders/Arbors/Shanks.
7. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
8. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
