Milling Machine Tool Holders CNC Cutting Tools BT For Milling and Drilling

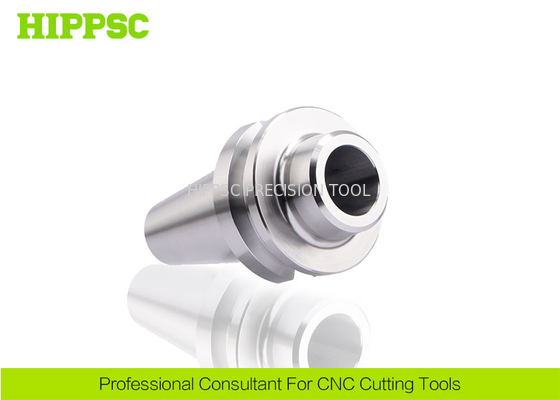

Large Image : Milling Machine Tool Holders CNC Cutting Tools BT For Milling and Drilling

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-HS12-35

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT-HS	Material:	20Crnimo
Balance:	Available	Product Type:	ER Collet Chuck
Cutting Type:	Turing, Milling, Boring, Drilling	Application:	Hole Making Process And Precision Finishing
Highlight:	milling machine cutting tools , cnc lathe cutting tools

Milling Machine Tool Holders CNC Cutting Tools BT For Milling and Drilling

Ⅰ. Features And Advantages

1.   450 nm moment of force.
2.   Beating accuracy ≤ 0.003mm.
3.   Good for finish machining.
4.   Rapid operation and tooling changing.

5. Endmilling, Drilling and Reaming Working.

6. High gripping force, prevents tools from loosing.

Ⅱ. Technical Parametes

Product Name	HS Chuck
Spindle Type	BT
Clamping Range	4mm~12mm
Run-Out	0.003mm
Processing Type	Endmilling, Face mill, Finishing, Drilling
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Introduction

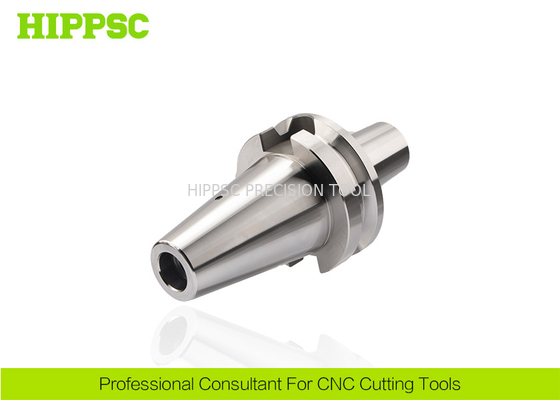

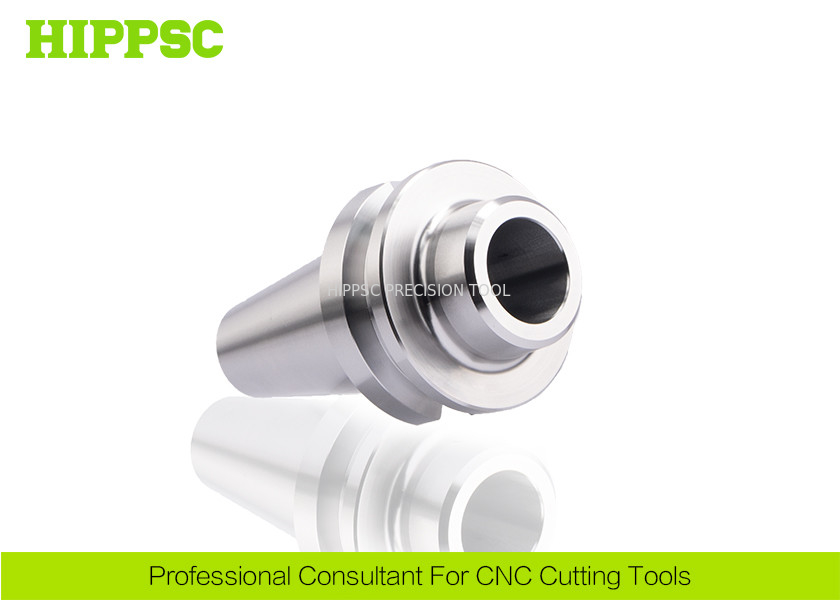

Milling Machine Tool Holders CNC Cutting Tools BT For Milling and Drilling

Standard Items

Type	D1	D2	L	L1	L2
BT30-HS12-35	38	—	35	13	—

BT40-HS12-45	38	—	45	18	—
BT40-HS12-75	38	—	75	48	—
BT40-HS12-135	38	—	135	108	—

BT50-HS12-75	38	65	75	25	12
BT50-HS12-105	38	65	105	55	12
BT50-HS12-135	38	65	135	85	12

Ⅳ. Overview for HIPPSC Products

1. Back Lock/Side Lock Tool Holders.
2. Morse Taper/Tapering Tool Holders.
3. Face Milling Adapters/Cutter And Inserts/Blades.

4. Threaded/Screw-on/Thread Screw Tool Holders.

5. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
6. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
7. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
8. Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

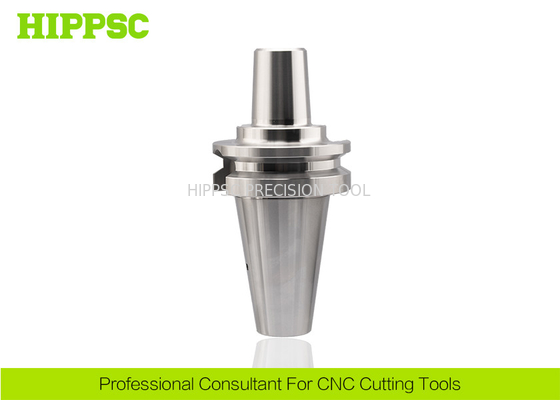

Milling Machine Tool Holders CNC Cutting Tools BT For Milling and Drilling

PE Bag.                                       Slushing oil.
Plastic Box.                                  Adhesive Tape.
Carton Box.                                 Packing Belt.

Ⅶ. Warehouse

1.   Quick response and On-time dispatchment, Fast Lead time.
2.   Products Must be Inspected Several Times Before Sending To Customer.
3.   High Standard Equipments and Gauges For Examing Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Professional Equipments, Special Technology, Experienced Workers.
2.   Supplying OEM&ODM , Custom Made,  Professional suggestion and Consultation.
3.   One Station Service For CNC Cutting Tools Using.

4. Warranty 12 Months (Negotiable), Free Repairing Service.
