Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | SK-HS | Product Type: | Shrink Fit Chuck |
|---|---|---|---|
| Runout: | 0.003mm | Balance: | Available |
| Chucking Range: | 4~12mm | Advantage: | Modular Design Structure |
| Highlight: | cnc lathe cutting tools,cnc milling cutters |
||

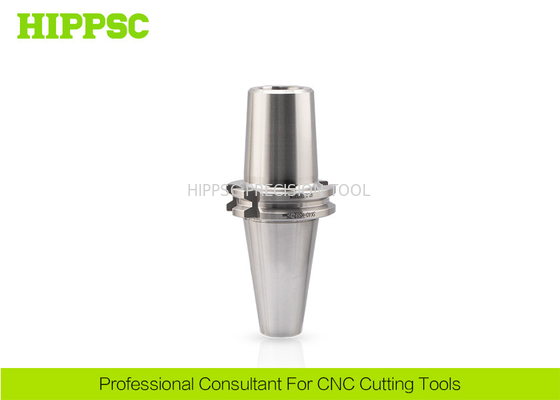

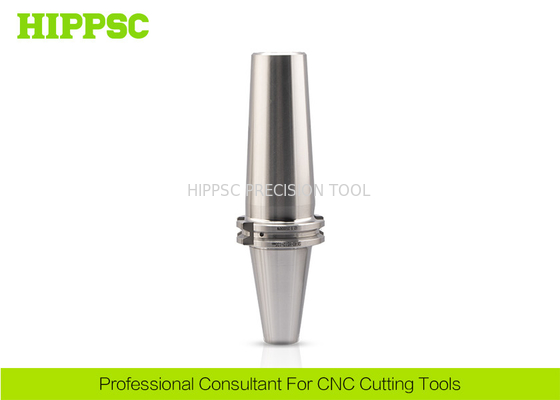

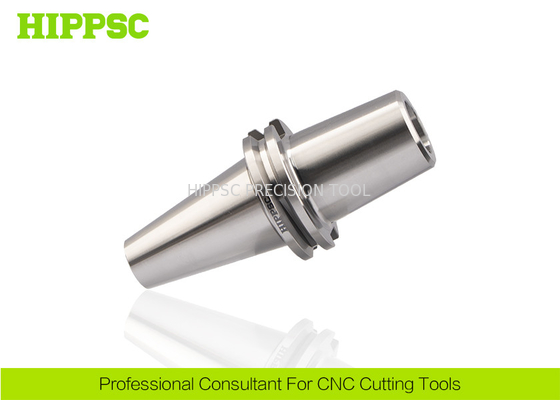

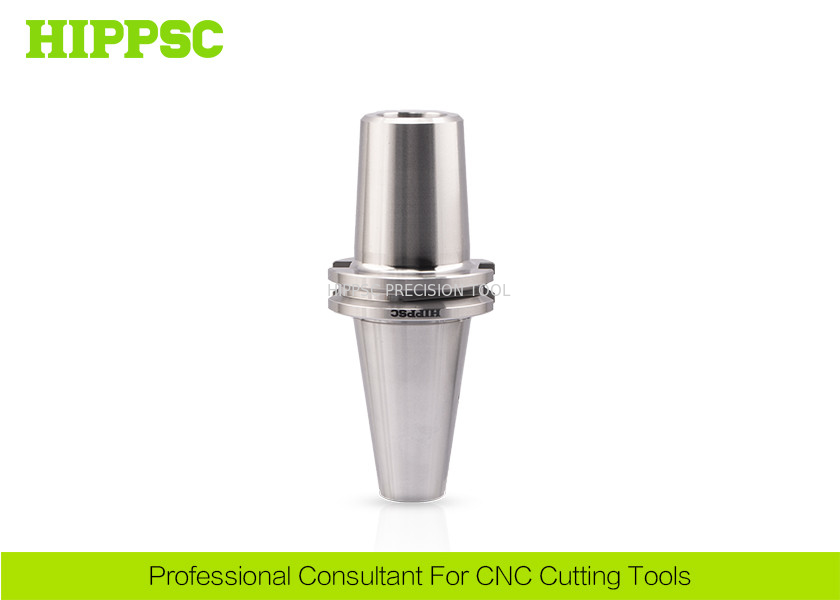

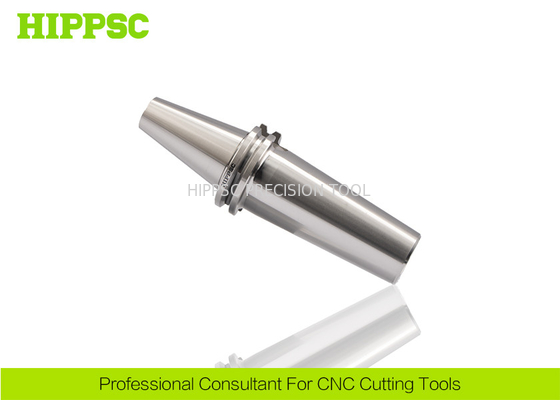

Electronics Automotive CNC Cutting Tools SK Shrink Fit Chuck Milling Machine
Ⅰ. Features And Advantages
1. Modular design structure,save tool cost
2. Back-pull design, simple locking mode
3. High rigidity, quick replacement
4. Wide applications, fits for most kinds of quick change tools
5. High precision, various specifications, high quality and sufficient stock
6. The toolholder clamp tools directly without collets or nuts
Ⅱ. Technical Parametes
|
Product Name |
Shrink Fit Chuck |
|
Spindle Type |
SK |
|
Clamping Range |
4mm~12mm |
|
Run-Out |
0.003mm |
|
Processing Type |
Endmilling, Face mill, Finishing, Drilling |
|
Product Material |
20Crnimo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Standard Items
| Type | D1 | D2 | L | L1 | L2 |
| SK40-HS12-45 | 38 | — | 45 | 25.9 | — |
| SK40-HS12-75 | 38 | — | 75 | 55.9 | — |
| SK50-HS12-75 | 38 | — | 75 | 55.9 | — |
| SK50-HS12-135 | 38 | — | 135 | 115.9 | — |
Ⅳ. Overview for HIPPSC Products
1. Back Lock/Side Lock Tool Holders.
2. Mirror Finishing Tool Holders.
3. Morse Taper/Tapering Tool Holders.
4. Face Milling Adapters/Cutter And Inserts/Blades.
5. Torque Tap/Tapping Chuck.
6. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
7. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
8. Torque/ Round/Circle Spanners/Wrenches/Keys.
Ⅴ. Shipmen
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. Packing
PE Bag. Slushing oil.
Plastic Box. Adhesive Tape.
Carton Box. Packing Belt.
Ⅶ. Warehouse
1. Quick response and On-time dispatchment, Fast Lead time.
2. Products Must be Inspected Several Times Before Sending To Customer.
3. High Standard Equipments and Gauges For Examing Technical Parameters.
Ⅷ. Manufacturing and Sales Service
1. Professional Equipments, Special Technology, Experienced Workers.
2. Supplying OEM&ODM , Custom Made, Professional suggestion and Consultation.
3. One Station Service For CNC Cutting Tools Using.
