Product Details:
Payment & Shipping Terms:
|
| Inventory: | In Stock | Material: | Tungsten Steel |
|---|---|---|---|
| Origin: | Dongguan, China | Application: | For Holding Cutter Head |
| Product Type: | Threaded Extension Tungsten Steel Rod | Packing: | PE Bag. Plastic Box. Carton Box. |
| Highlight: | cemented carbide rods,tungsten carbide round bar |
||
Sintered Tungsten Steel Rod Tungsten Steel Replaceable Head SCRG
Ⅰ. Features
1. Made from fully tungsten steel.
2. High rigidity and good shock resistance.
3. Super precision in deep hole machining.
4. Suits abundant indexable boring bar/head.
5. Extending cutting dept, improve the processing surface quality.
6. Easy operation and change tool quickly, saving time and improving efficiency.
Ⅱ. Technical Parametes
|
Product Name |
Tungsten Steel Replaceable Head |
|
Shank type |
Straight |
|
Extension length |
250 |
|
Contact type |
Screw bolt |
|
Product Material |
Tungsten steel |
|
Application |
Boring head, Milling and drilling cutter |

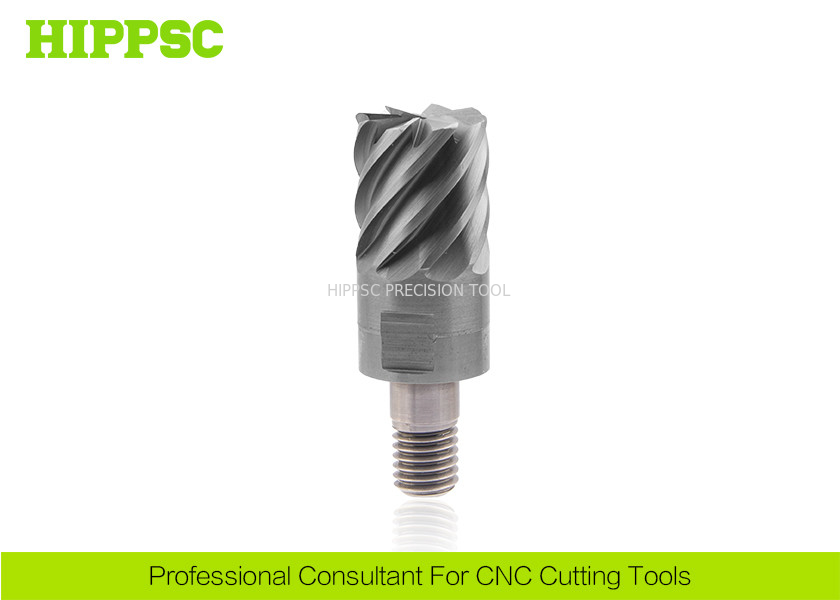

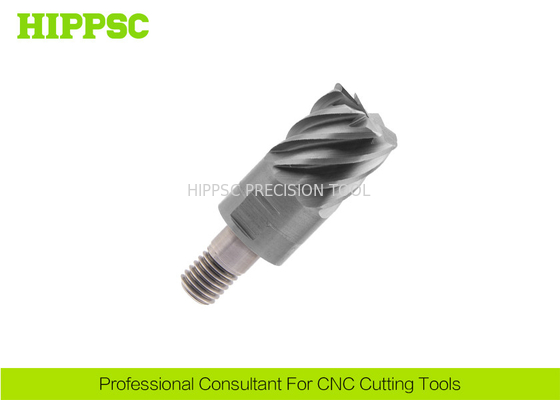

Ⅲ. Product Show
Available Standard Items
| Type | D | R | Z | L1 | L2 | Db | W | M |
| SCRG-61005-M06 | 10 | 0.5 | 6 | 10 | 24.5 | 9.5 | 8 | M06 |
| SCRG-61010-M06 | 10 | 1 | 6 | 10 | 24.5 | 9.5 | 8 | M06 |
| SCRG-61105-M06 | 11 | 0.5 | 6 | 11 | 24.5 | 9.5 | 8 | M06 |
| SCRG-61110-M06 | 11 | 1 | 6 | 11 | 24.5 | 9.5 | 8 | M06 |
| SCRG-61205-M06 | 12 | 0.5 | 6 | 12 | 26.5 | 11.5 | 10 | M06 |
| SCRG-61210-M06 | 12 | 1 | 6 | 12 | 26.5 | 11.5 | 10 | M06 |
| SCRG-61305-M06 | 13 | 0.5 | 6 | 13 | 26.5 | 11.5 | 10 | M06 |
| SCRG-61310-M06 | 13 | 1 | 6 | 13 | 26.5 | 11.5 | 10 | M06 |
| SCRG-81605-M08 | 16 | 0.5 | 8 | 16 | 31.8 | 15.4 | 13 | M08 |
| SCRG-81610-M08 | 16 | 1 | 8 | 16 | 31.8 | 15.4 | 13 | M08 |
| SCRG-81705-M08 | 17 | 0.5 | 8 | 17 | 31.8 | 15.4 | 13 | M08 |
| SCRG-81710-M08 | 17 | 1 | 8 | 17 | 31.8 | 15.4 | 13 | M08 |
| SCRG-82005-M10 | 20 | 0.5 | 8 | 20 | 38.8 | 19.4 | 17 | M10 |
| SCRG-82010-M10 | 20 | 1 | 8 | 20 | 38.8 | 19.4 | 17 | M10 |
| SCRG-82105-M10 | 21 | 0.5 | 8 | 21 | 38.8 | 19.4 | 17 | M10 |
| SCRG-82110-M10 | 21 | 1 | 8 | 21 | 38.8 | 19.4 | 17 | M10 |
| SCRG-82505-M12 | 25 | 0.5 | 8 | 25 | 44.8 | 24.4 | 22 | M12 |
| SCRG-82510-M12 | 25 | 1 | 8 | 25 | 44.8 | 24.4 | 22 | M12 |
| SCRG-82605-M12 | 26 | 0.5 | 8 | 26 | 44.8 | 24.4 | 22 | M12 |
| SCRG-82610-M12 | 26 | 1 | 8 | 26 | 44.8 | 24.4 | 22 | M12 |
| SCRG-83005-M16 | 30 | 0.5 | 8 | 30 | 58 | 29.4 | 27 | M16 |
| SCRG-83010-M16 | 30 | 1 | 8 | 30 | 58 | 29.4 | 27 | M16 |
| SCRG-83205-M16 | 32 | 0.5 | 8 | 32 | 58 | 29.4 | 27 | M16 |
| SCRG-83210-M16 | 32 | 1 | 8 | 32 | 58 | 29.4 | 27 | M16 |
Ⅳ. Products Overview
Slushing oil.
Adhesive Tape.
Packing Straps.
Ⅶ. Warehouse
Ⅷ. Warranty
