Hydraulic Precision Tool Holders ISO 20 Taper Tool Holders Hole Making

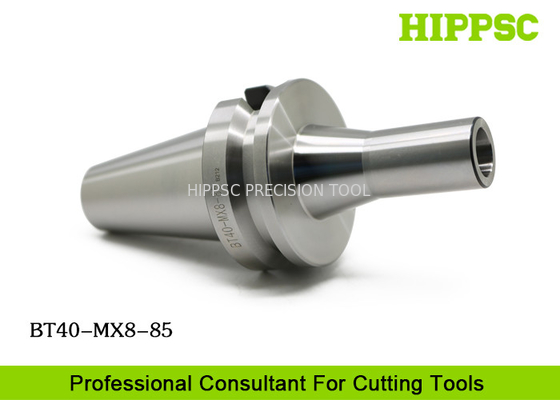

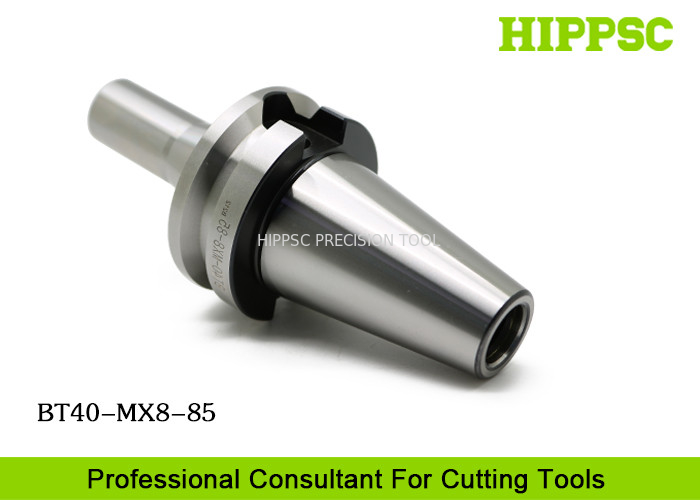

Large Image : Hydraulic Precision Tool Holders ISO 20 Taper Tool Holders Hole Making

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT40-MX8-85

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT40	Product Type:	MAS BT40 Slim-Fit Collet Chuck
Runing Accuracy:	0.003mm	Machining:	Deep Hole Machining, Milling, Finishing
Taper:	7:24	Balancing:	G2.5 30000RPM
Highlight:	universal tool holder , Taper Tool Holder

Hydraulic Precision Tool Holders ISO 20 Taper Tool Holders Hole Making

Ⅰ. Features And Advantages

MAS BT40 Slim-Fit collet chuck Precision Tool Holder.
High regidity and stability runout below 0.003mm.
Slim and long shank, avoid interference for deep hole machining.
Inserted MX Collet, easy and quick operation, save time.
Clamped by slim-fit collet, suitable for high-speed and high precision machining.

Ⅱ. Technical Parametes

Product Name	Slim-Fit Collet Chuck
Spindle Type	MAS BT40
Clamping Range	(3, 4, 5, 6, 8) mm
Runout	<0.003mm
Processing Type	High speed and precision machining.
Product Material	20CrNiMo
Hardness	HRC58~60°

Ⅲ. Product Introduction

Hydraulic Precision Tool Holders ISO 20 Taper Tool Holders Hole Making

Standard Items

Model Number	d	L	C	L1	Collet	Spanner
BT30-MX6-60	2.0-6.0	60	13	/	MX6	T4
BT30-MX6-90	2.0-6.0	90	13	/	MX6	T4
BT30-MX6-120	2.0-6.0	120	13	/	MX6	T4
BT30-MX8-60	2.0-8.0	60	15	/	MX8	T4
BT30-MX8-90	2.0-8.0	90	15	/	MX8	T4
BT30-MX8-120	2.0-8.0	120	15	/	MX8	T4
BT30-MX10-90	3.0-10.0	90	22	36	MX10	T4
BT30-MX10-105	3.0-10.0	105	22	35	MX10	T4
BT40-MX6-90	2.0-6.0	90	13	/	MX6	T4
BT40-MX6-120	2.0-6.0	120	13	/	MX6	T4
BT40-MX6-150	2.0-6.0	150	13	/	MX6	T4
BT40-MX8-90	2.0-8.0	90	15	/	MX8	T4
BT40-MX8-120	2.0-8.0	120	15	/	MX8	T4
BT40-MX10-75	3.0-10.0	75	22	/	MX10	T6
BT40-MX10-90	3.0-10.0	90	22	43	MX10	T6
BT40-MX10-120	3.0-10.0	120	22	35	MX10	T6
BT40-MX12-90	3.0-12.0	90	30	40	MX12	T5
BT40-MX12-120	3.0-12.0	120	30	43	MX12	T5
BT50-MX10-105	3.0-10.0	105	22	40	MX10	T6
BT50-MX10-135	3.0-10.0	135	22	43	MX10	T6
BT50-MX10-165	3.0-10.0	165	22	35	MX10	T6
BT50-MX12-105	3.0-12.0	105	30	35	MX12	T5
BT50-MX12-135	3.0-12.0	135	30	40	MX12	T5
BT50-MX12-165	3.0-12.0	165	30	40	MX12	T5

Collets

Item Name	Part No.	Runout	Run-out P CLASS	D	L
MX6	MX6-2/3/4/5/6/3.175	0.005	0.003	9.6	36
MX8	MX8-3/4/5/6/8	0.005	0.003	15	45
MX10	MX10-3/4/5/6/8/10	0.005	0.003	16	52
MX12	MX12-3/4/5/6/8/10/12	0.005	0.003	22	57

Ⅳ. Overview for HIPPSC Products

MAS BT40 MX8 Slim-Fit collet chuck 100mm Length.
High Speed GER, GSK Tool Holder for CNC Working.
Threaded Screw Tool Holders.
Pull Type And Side Lock Tool Holders.
Tool Holders for Mirror Finishing.
Morse Taper Tool Holders.
Face Milling Adapters.
Torque Floating Tap Chuck and Collet.
ER, SK, Hydraulic, Pull type, Floating tapping Collet

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials
Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
