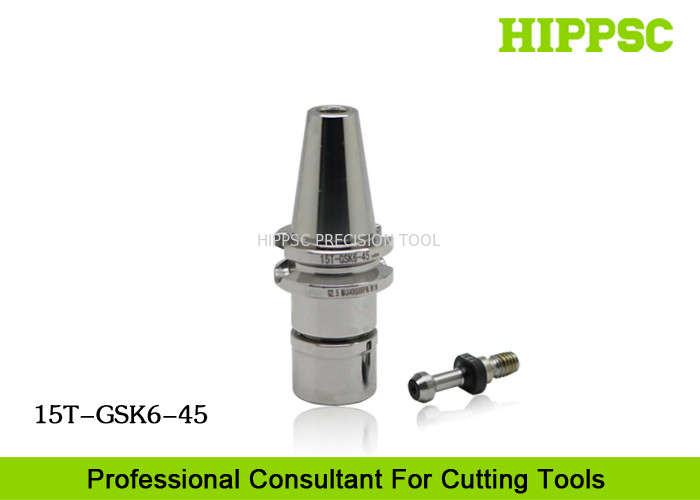

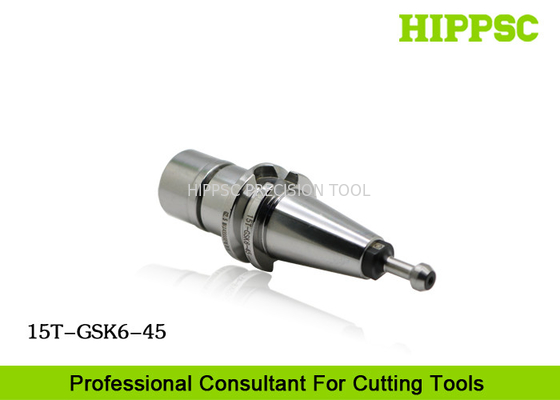

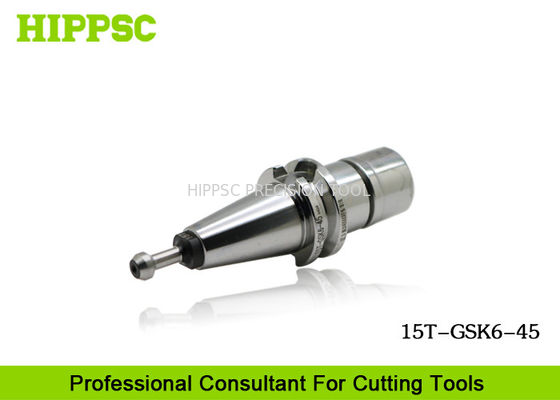

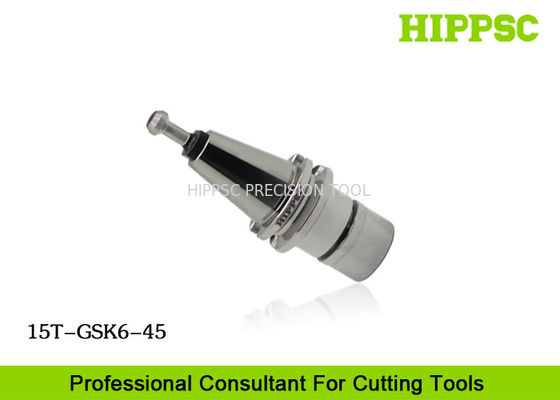

High Speed Precision Tool Holders Fits For Engraving Processing 15T - GSK6- 45

Large Image : High Speed Precision Tool Holders Fits For Engraving Processing 15T - GSK6- 45

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	15T-GSK6-45

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Taper:	7:24	Spindle Type:	15T
Product Type:	High Speed Tool Holder	Runing Accuracy:	0.005mm
Machining:	Milling And Presision Machining	Material:	20CrNiMo
Highlight:	adjustable tool holder , Taper Tool Holder

High Speed Precision Tool Holders Fits For Engraving Processing 15T - GSK6- 45

Ⅰ. Features And Advantages

Special tool for engraving and milling machining in high speed with low running noise
The body is very light, rotates very quickly and trippingly, for die, electronic parts, plastics and PCB processing.
Easy installation, save work time and cost.
High stability and high accuracy, contribute to high surface quality of work piece.
Pleae do not use it on hard machining and cutting.

Ⅱ. Technical Parametes

Product Name	15T-GSK6-45 Engraving and Milling Tool Holder
Spindle Type	15T
Clamping Range	(0.8,1,1.25,1.5,1.75,2,2.25,2.5,2.75,3,3.5,4,4.5,5,5.5,6) mm
Runout	<0.005mm
Processing Type	High speed and precision machining.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

High Speed Precision Tool Holders Fits For Engraving Processing 15T - GSK6- 45

Standard Items

Model Number	d	D1	D2	D3	L1	L2	M	Collet	Nut	Spanner
10T-GSK6-45	2.0-6.0	19.5	20	23	45	34	M15.5*1.0	SK6	HN-GSK6	GH19
10T-GSK10-45	3.0-10.0	27.1	27.6	23	45	34	M21.5*1.0	SK10	HN-GSK10	GH27
15T-GSK6-45	2.0-6.0	19.5	20	27	45	32.5	M15.5*1.0	SK6	HN-GSK6	GH19
15T-GSK10-45	3.0-10.0	27.1	27.6	27	45	32.5	M21.5*1.0	SK10	HN-GSK10	GH27
20T-GSK6-45	2.0-6.0	19.5	20	30	45	32.5	M15.5*1.0	SK6	HN-GSK6	GH19
20T-GSK10-45	3.0-10.0	27.1	27.6	30	45	32.5	M21.5*1.0	SK10	HN-GSK10	GH27
25T-GSK6-45	2.0-6.0	19.5	20	35	45	30	M15.5*1.0	SK6	HN-GSK6	GH19
25T-GSK10-45	3.0-10.0	27.1	27.6	35	45	30	M21.5*1.0	SK10	HN-GSK10	GH27
25T-GSK16-45	3.0-16.0	40	40.5	35	45	30	M32.0*1.5	SK16	HN-GSK16	GH40

GSK Nuts

Type of Nut	Part Number	D	L	M	Spanner
GSK NUT	HN-GSK6	19.5	21.3	M15.5*1.0	GSK6
	HN-GSK10	27.1	24	M21.5*1.0	GSK10
	HN-GSK13	33	24	M27*1.0	GSK13
	HN-GSK16	40	31	M32*1.5	GSK16
	HN-GSK20	48	50	M40*1.0	GSK20
	HN-GSK25	55	37.5	M45*1.5	GSK25

G Type Round Spanner

Type of spanner	Model Number	A	L	Weight(KG)
G-SPANNER	GH19	19.5	120	0.24
	GH25	25	135	0.3
	GH27	27.1	135	0.35
	GH30	30	150	0.7
	GH33	33	160	0.75
	GH35	35	170	0.11
	GH40	40	180	0.29
	GH48	48	210	0.39
	GH55	55	300	0.38

Ⅳ. Overview of HIPPSC product lines

15T-GSK6-45 Engraving and Milling Chucks.
High Speed GER And GSK Tool Holder Shank.
Heat Shrinking Tool Holders.
Threaded Screw Tool Holders.
Side Lock Tool Holders.
Tool Holders for Mirror Finishing.
Morse Taper Tool Holders.
Face Milling Adapters.
Torque Tapping Chuck and Collet.
ER, SK, Hydraulic, Floating tapping Collet.
Torque And Round G Type Spanners.
Nuts, Pull stud, Spindle taper wiper, Test bar.
Edge finder, Tool Holder Tightening Fixture.
Milling, Boring, PCBN Inserts.
Quick Change Ball nose, Triangle, Pentagon And Horseshoe Tool Bit.
Cutterhead, Cutter bar, Face Milling Cutter.
BT, BBT, SK, CAT, HSK, ISO And NT Spinder Tool Holder.
Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
