Turning Carbide Precision Tool Holders, Universal Collet Tool Holder

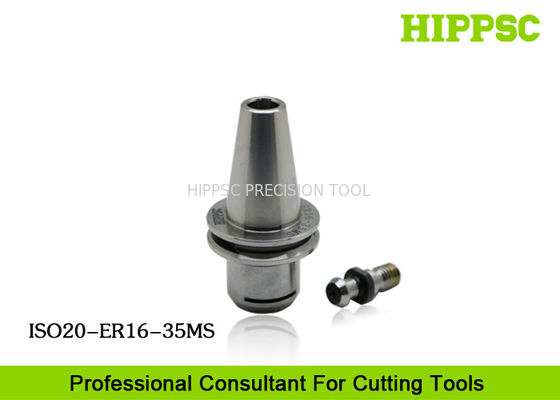

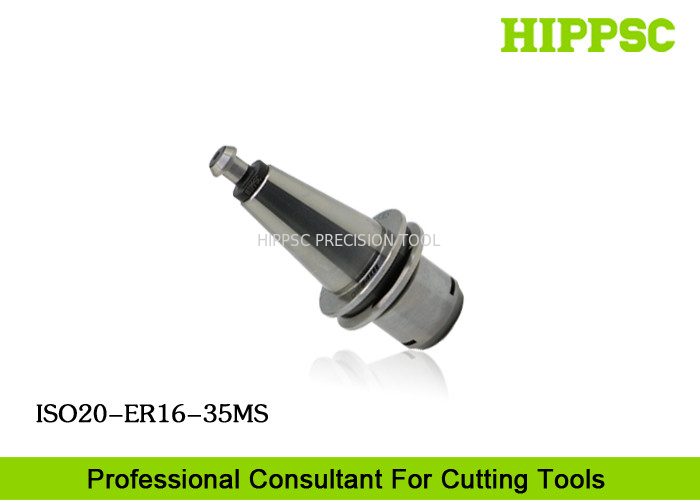

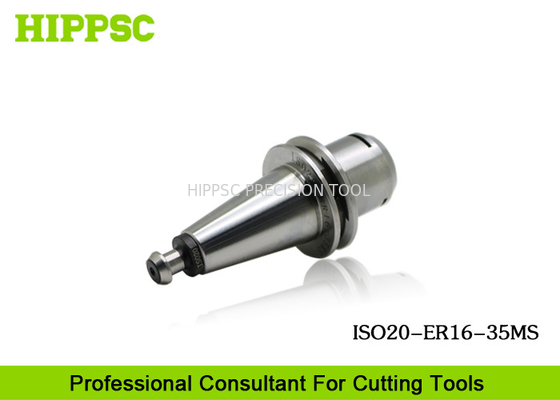

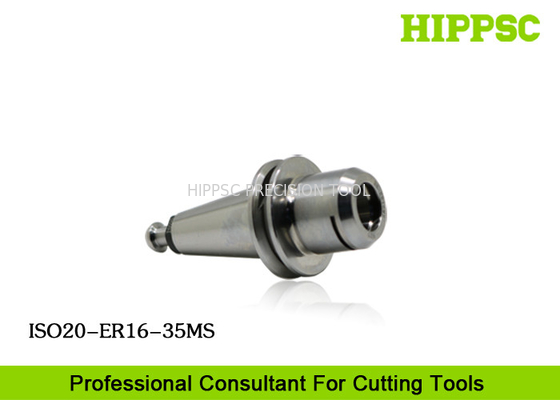

Large Image : Turning Carbide Precision Tool Holders, Universal Collet Tool Holder

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	ISO20-ER16-35

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Machining:	Milling And Presision Machining	Spindle Type:	ISO20
Material:	20CrNiMo	Taper:	7:24
Product Type:	ISO20 Engraving And Milling Holder	Runing Accuracy:	0.005mm
Highlight:	adjustable tool holder , universal tool holder

Turning Carbide Precision Tool Holders, Universal Collet Tool Holder

Ⅰ. Advantages

Suitable for using on engraving and milling machining, high speed, low running noise
Little weight, machining quickly and trippingly for die, electronic parts, plastics and PCB in high speed.
Easy installation, save work time and cost.
High stability and high accuracy, contribute to high surface quality of work piece.
Not suitable for hard heavy machining and cutting.

Ⅱ. Technical Parametes

Product Name	ISO20 Engraving and Milling Tool Holder
Spindle Type	ISO20
Clamping Range	(3,4,5,6,7,8,9,10) mm
Runout	<0.005mm
Processing Type	High speed and precision machining.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

Turning Carbide Precision Tool Holders, Universal Collet Tool Holder

Standard Items

Model Number	d	D1	D2	L1	L2	M	Nut	Collet	Spanner	Locking Device
ISO20-ER16-35MS	3.0-10.0	22	33	35	27	M19*1.0	HN-ER16MS	ER16	HS-ER16MS	ISO20
ISO20-ER20-35MS	3.0-13.0	28	33	35	27	M24*1.0	HN-ER20MS	ER20	HS-ER20MS	ISO20
ISO25-ER16-35MS	3.0-10.0	22	37	35	27	M19*1.0	HN-ER16MS	ER16	HS-ER16MS	ISO25
ISO25-ER20-35MS	3.0-13.0	28	37	35	27	M24*1.0	HN-ER20MS	ER20	HS-ER20MS	ISO25
ISO25-ER25-35MS	3.0-16.0	35	37	35	27	M30*1.0	HN-ER25MS	ER25	HS-ER25MS	ISO25
ISO30-ER16-60MS	3.0-10.0	22	50	60	44.1	M19*1.0	HN-ER16MS	ER16	HS-ER16MS	ISO30
ISO30-ER20-60MS	3.0-13.0	28	50	60	44.1	M24*1.0	HN-ER20MS	ER20	HS-ER20MS	ISO30
ISO30-ER25-60MS	3.0-16.0	35	50	60	44.1	M30*1.0	HN-ER25MS	ER25	HS-ER25MS	ISO30

Ⅳ. Overview for HIPPSC Products

1.    ISO20-ER16-35MS Engraving and Milling Chucks.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
