High Speed Precision Tool Holders For CNC Milling MachineHardness ISO20 ER Chuck

China High Speed Precision Tool Holders For CNC Milling MachineHardness ISO20 ER Chuck supplier
High Speed Precision Tool Holders For CNC Milling MachineHardness ISO20 ER Chuck supplier High Speed Precision Tool Holders For CNC Milling MachineHardness ISO20 ER Chuck supplier High Speed Precision Tool Holders For CNC Milling MachineHardness ISO20 ER Chuck supplier High Speed Precision Tool Holders For CNC Milling MachineHardness ISO20 ER Chuck supplier

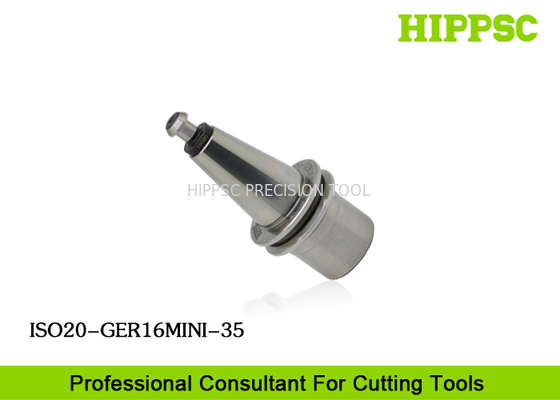

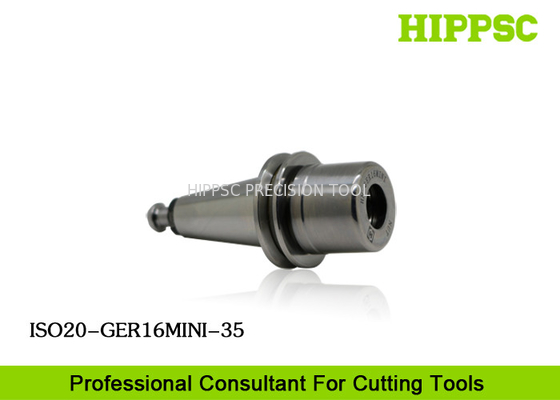

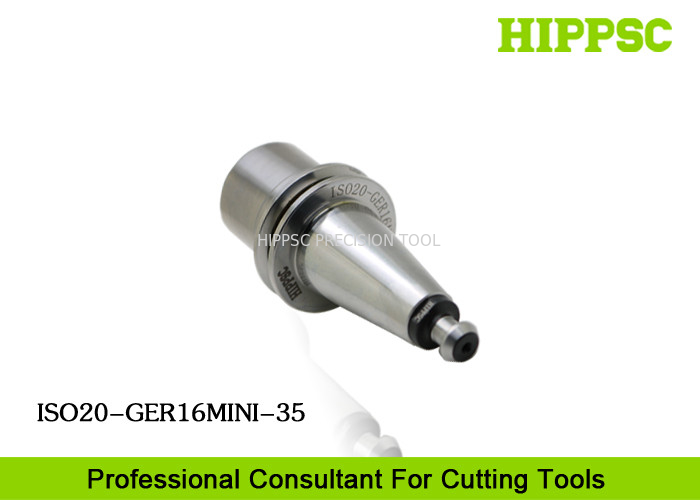

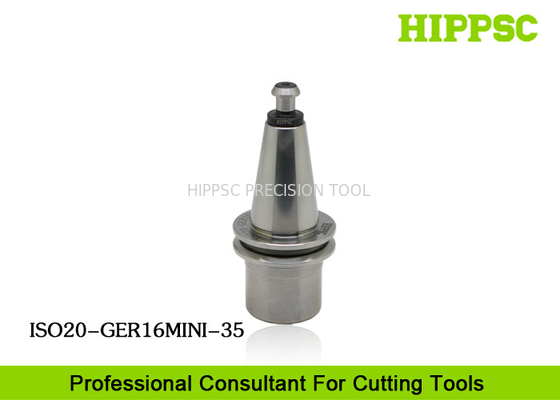

Large Image :  High Speed Precision Tool Holders For CNC Milling MachineHardness ISO20 ER Chuck

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: ISO20-GER16MINI-35

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Detailed Product Description
Product Type: MINI Engraving And Milling Holder Spindle Type: ISO20
Runing Accuracy: 0.005mm Machining: High Speed Milling And Presision Machining
Material: Special Steel Taper Standard: 7:24
Highlight:

adjustable tool holder

,

universal tool holder

High Speed Precision Tool Holders For CNC Milling MachineHardness ISO20 ER Chuck



Ⅰ​. Features And Advantages

  • Suitable for using on engraving and milling machining, high speed, low running noise
  • Little weight, machining quickly and trippingly for die, electronic parts, plastics and PCB in high speed.
  • Easy installation, save work time and cost.
  • High stability and high accuracy, contribute to high surface quality of work piece.
  • Do not use it for hard heavy machining and cutting.


Ⅱ. Technical Parametes


Product Name

ISO20-GER16MINI-35MS

Spindle Type

ISO20

Clamping Range

(3,4,5,6,7,8,9,10) mm

Running Accuracy

<0.005mm

Processing Type

High speed and precision machining.

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product Introduction


High Speed Precision Tool Holders For CNC Milling MachineHardness ISO20 ER Chuck

Standard Items

Model Number d D1 D2 D3 L1 L2 M Nut Collet Spanner Lock Device
ISO20-GER16MINI-35 3.0-10.0 25 25.5 33 35 26.2 M20*1.0 HN-GER16MINI ER16 GH25 ISO20
ISO25-GER16MINI-35 3.0-10.0 25 25.5 37 35 26.2 M20*1.0 HN-GER16MINI ER16 GH25 ISO25
ISO25-GER20MINI-35 3.0-13.0 30 30.5 37 35 26.2 M24*1.0 HN-GER20MINI ER20 GH30 ISO25
ISO30-GER20MINI-60 3.0-13.0 25 25.5 50 60 40.9 M24*1.0 HN-GER20MINI ER20 GH25 ISO30
ISO30-GER25MINI-60 3.0-16.0 35 35.5 50 60 40.9 M30*1.0 HN-GER25MINI ER25 GH35 ISO30


Ⅳ. Overview for HIPPSC Products




1.    ISO20-GER16-35MS Engraving and Milling Chucks.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11.  ER/SK/Hydraulic/Back lock/Floating tapping Collet
12.  Torque/ Round/Circle Spanners/Wrenches/Keys.

13.  ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14.  Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15.  Edge finder/Tool Holder Tightening Fixture/Table.
16.  Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17.  Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18.  Cutterhead/ Cutter heard/bar, face milling cutter.
19.  BT/BBT/SK/CAT/HSK/ISO/NT/NBT Spinder Type Tool Holder/Shank/Arbor


Ⅴ​. Shipmen


By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse


1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service


1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
