Cutting Milling Machine Tool Holder / ISO 25 Tool Holder High Stability

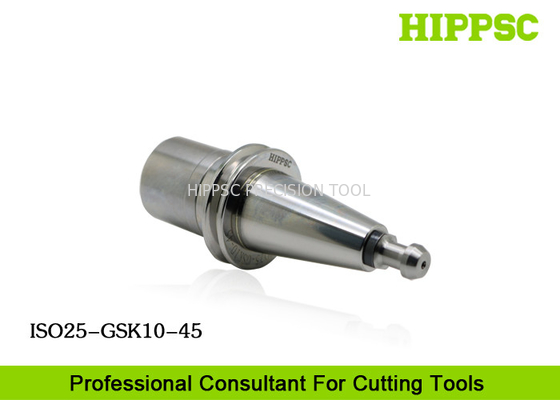

Large Image : Cutting Milling Machine Tool Holder / ISO 25 Tool Holder High Stability

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	ISO25-GSK10-45

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	ISO25	Product Type:	ISO25-GSK10-45 Engraving And Milling Holder
Runing Accuracy:	0.005mm	Machining:	High Speed Milling And Presision Machining
Material:	Special Steel	Taper:	7:24
Highlight:	universal tool holder , Taper Tool Holder

Cutting Milling Machine Tool Holder / ISO 25 Tool Holder High Stability

Ⅰ. Features And Advantages

Suitable for using on engraving and milling machining, high speed, low running noise
Little weight, machining quickly and trippingly for die, electronic parts, plastics and PCB in high speed.
Easy installation, save work time and cost.
High stability and high accuracy, contribute to high surface quality of work piece.
Not suitable for hard heavy machining and cutting.

Ⅱ. Technical Parametes

Product Name	ISO25-GSK10-45
Spindle Type	ISO25
Clamping Range	(2,2.25,2.5,2.75,3,3.5,4,4.5,5,5.5,6,6.5,7,7.5,8,8.5,9,9.5,10) mm
Runout	<0.005mm
Processing Type	High speed and precision machining.
Product Material	Special steel
Hardness	HRC58~60°
Taper Tolerance	AT3

Ⅲ. Product Introduction

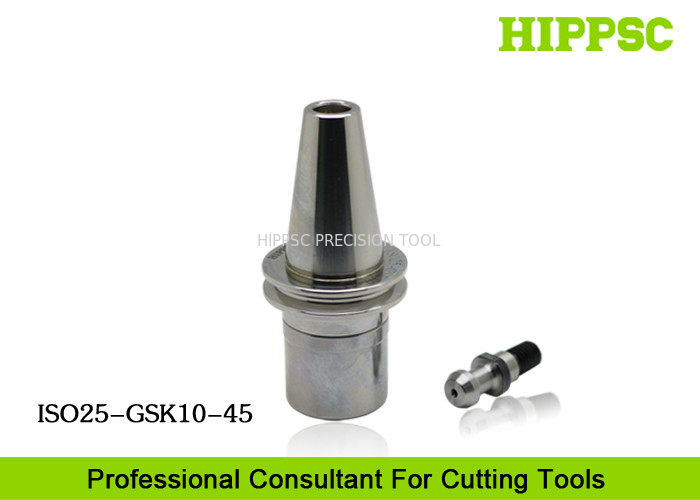

Cutting Milling Machine Tool Holder / ISO 25 Tool Holder High Stability

Standard Items

Model Number	d	D1	D2	D3	L1	L2	Nut	Collet	COLLET PULLER	Spanner	Lock Device
ISO20-GSK06-35	2.0-6.0	19.5	20	33	35	29.5	HN-GSK06	SK06	CX06	GH19	ISO20
ISO25-GSK10-45	3.0-10.0	27.1	27.6	37	45	26.2	HN-GSK10	SK10	CX10	GH27	ISO20
ISO30-GSK10-45	3.0-10.0	27.1	27.6	50	45	26.2	HN-GSK10	SK10	CX10	GH27	ISO25
ISO30-GSK10-60	3.0-10.0	27.1	27.6	50	60	40.9	HN-GSK10	SK10	CX10	GH27	ISO30
ISO30-GSK16-60	3.0-16.0	40	40.5	50	60	40.9	HN-GSK16	SK16	CX16	GH40	ISO30

GSK Nuts

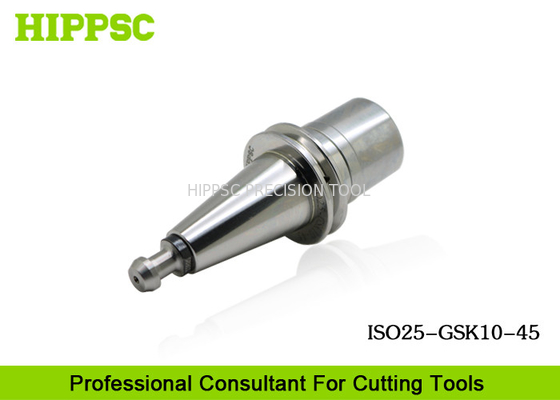

Cutting Milling Machine Tool Holder / ISO 25 Tool Holder High Stability

Type of Nut	Part Number	D	L	M	Spanner
GSK NUT	HN-GSK6	19.5	21.3	M15.5*1.0	GSK6
	HN-GSK10	27.1	24	M21.5*1.0	GSK10
	HN-GSK13	33	24	M27*1.0	GSK13
	HN-GSK16	40	31	M32*1.5	GSK16
	HN-GSK20	48	50	M40*1.0	GSK20
	HN-GSK25	55	37.5	M45*1.5	GSK25

Ⅳ. Overview for HIPPSC Products

1.    ISO25-GSK10-45 Engraving and Milling Chucks.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
