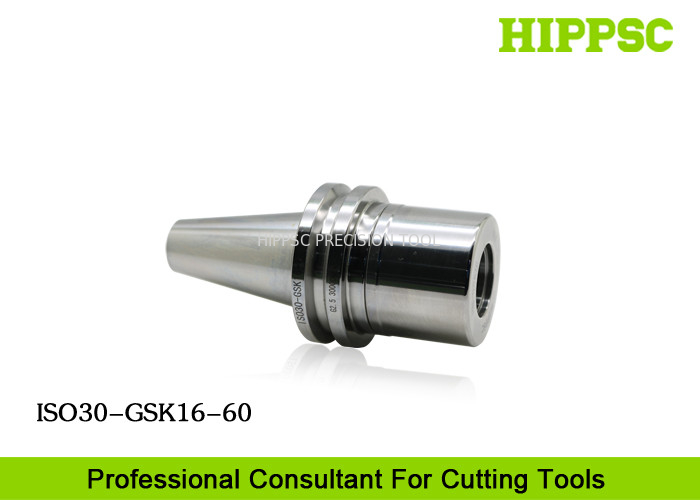

Special Steel Material High Speed Tool Holder for CNC Machines Adjustable ISO30

: Large Image : Special Steel Material High Speed Tool Holder for CNC Machines Adjustable ISO30

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	ISO30-GSK16-60

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Taper:	7:24	Spindle Type:	ISO30
Product Type:	ISO30-GSK16-60 Engraving And Milling Holder	Runing Accuracy:	0.005mm
Machining:	High Speed And Presision Machining	Material:	20CrNiMo
Highlight:	universal tool holder , Taper Tool Holder

Special Steel Material High Speed Tool Holder for CNC Machines Adjustable ISO30

Ⅰ. Features And Advantages

Suitable for using on engraving and milling machining, high speed, low running noise
Little weight, machining quickly and trippingly for die, electronic parts, plastics and PCB in high speed.
Easy installation, save work time and cost.
High stability and high accuracy, contribute to high surface quality of work piece.
Not suitable for hard heavy machining and cutting.

Ⅱ. Technical Parametes

Product Name	ISO30-GSK10-45
Spindle Type	ISO30
Clamping Range	(2,2.25,2.5,2.75,3,3.5,4,4.5,5,5.5,6,6.5,7,7.5,8,8.5,9,9.5,10) mm
Runout	<0.005mm
Processing Type	High speed and precision machining.
Product Material	Special steel
Hardness	HRC58~60°
Taper Tolerance	AT3

Ⅲ. Product Introduction

Special Steel Material High Speed Tool Holder for CNC Machines Adjustable ISO30

Products List

Model Number

Nut

Collet

COLLET PULLER

Spanner

Lock Device

ISO20-GSK06-35

2.0-6.0

19.5

29.5

M15.5*1.0

HN-GSK06

SK06

CX06

GH19

ISO20

ISO25-GSK10-45

3.0-10.0

27.1

27.6

26.2

M21.5*1.0

HN-GSK10

SK10

CX10

GH27

ISO20

ISO30-GSK10-45

3.0-10.0

27.1

27.6

26.2

M21.5*1.0

HN-GSK10

SK10

CX10

GH27

ISO25

ISO30-GSK10-60

3.0-10.0

27.1

27.6

40.9

M21.5*1.0

HN-GSK10

SK10

CX10

GH27

ISO30

ISO30-GSK16-60

3.0-16.0

40.5

40.9

M32*1.5

HN-GSK16

SK16

CX16

GH40

ISO30

Ⅳ. Overview for HIPPSC Products

1.    ISO30-GSK16-60 Engraving and Milling Chucks.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing
PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1. Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
3. Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Providing One-Stop Considerate and Satisfying Service To You.
