| Shank Type: | Straight | OEM Service: | Available |
|---|---|---|---|
| Product Type: | Threaded Extension Tungsten Steel Rod | Application: | Holding Cutter Head |
| Material: | Tungsten Steel | Extension Capacity: | 250mm |
| Highlight: | cemented carbide rods,tungsten carbide round bar |
||

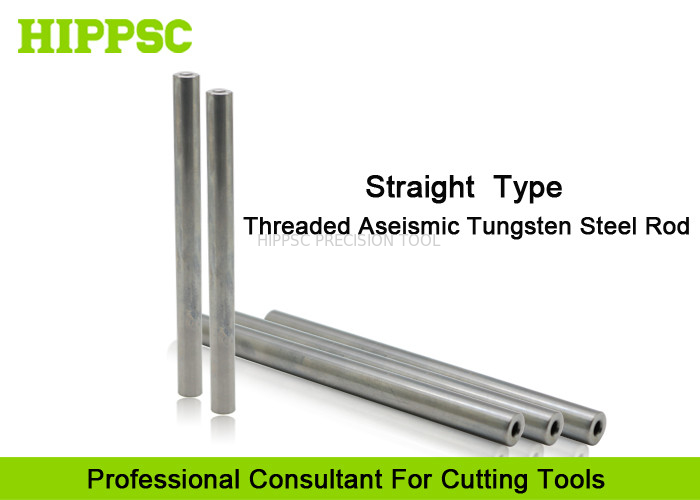

Straight Solid Tungsten Carbide Rod Screw Hole For Cutter Head
Ⅰ. Features
Made from 100% tungsten steel.
High rigidity and good shock resistance.
Extending cutting dept, improve surface quality.
Super precision in deep hole machining.
Suits abundant indexable boring heard.
Easy operation and change tool quickly, saving time and improving efficiency.
Ⅱ. Technical Parametes
|
Product Name |
Straight Shank Tungsten Steel Rod |
|
Shank type |
Straight |
|
Clamping size |
12 |
|
Extension length |
250 |
|
Contact type |
Screw bolt |
|
Product Material |
Tungsten steel |
|
Application |
Boring head, Milling and drilling cutter |
Ⅲ. Product Show
Available Standard Items
| Model Number | L | D3 | D2 | D1 | M |
| C08-M04-75 | 75 | 2 | 4.5 | 8 | M04 |
| C08-M04-105 | 105 | 2 | 4.5 | 8 | M04 |
| C10-M05-75 | 75 | 3 | 5.5 | 10 | M05 |
| C10-M05-105 | 105 | 3 | 5.5 | 10 | M05 |
| C10-M05-135 | 135 | 3 | 5.5 | 10 | M05 |
| C10-M05-165 | 165 | 3 | 5.5 | 10 | M05 |
| C10-M06-75 | 75 | 3 | 6.5 | 10 | M06 |
| C10-M06-105 | 105 | 3 | 6.5 | 10 | M06 |
| C10-M06-135 | 135 | 3 | 6.5 | 10 | M06 |
| C10-M06-165 | 165 | 3 | 6.5 | 10 | M06 |
| C12-M06-75 | 75 | 3 | 6.5 | 12 | M06 |
| C12-M06-105 | 105 | 3 | 6.5 | 12 | M06 |
| C12-M06-135 | 135 | 3 | 6.5 | 12 | M06 |
| C12-M06-165 | 165 | 3 | 6.5 | 12 | M06 |
| C12-M07-75 | 75 | 3 | 7.5 | 12 | M07 |
| C12-M07-105 | 105 | 3 | 7.5 | 12 | M07 |
| C12-M07-135 | 135 | 3 | 7.5 | 12 | M07 |
| C12-M07-165 | 165 | 3 | 7.5 | 12 | M07 |
| C16-M08-100 | 100 | 4 | 8.5 | 16 | M08 |
| C16-M08-150 | 150 | 4 | 8.5 | 16 | M08 |
| C16-M08-200 | 200 | 4 | 8.5 | 16 | M08 |
| C16-M10-100 | 100 | 4 | 10.5 | 16 | M10 |
| C16-M10-150 | 150 | 4 | 10.5 | 16 | M10 |
| C16-M10-200 | 200 | 4 | 10.5 | 16 | M10 |
| C20-M10-100 | 100 | 4 | 10.5 | 20 | M10 |
| C20-M10-150 | 150 | 4 | 10.5 | 20 | M10 |
| C20-M10-200 | 200 | 4 | 10.5 | 20 | M10 |
| C20-M10-250 | 250 | 4 | 10.5 | 20 | M10 |
| C25-M12-150 | 150 | 6 | 12.5 | 25 | M12 |
| C25-M12-200 | 200 | 6 | 12.5 | 25 | M12 |
| C25-M12-250 | 250 | 6 | 12.5 | 25 | M12 |
| C25-M12-300 | 300 | 6 | 12.5 | 25 | M12 |
| C32-M16-200 | 200 | 8 | 17 | 32 | M16 |
| C32-M16-250 | 250 | 8 | 17 | 32 | M16 |
| C32-M16-300 | 300 | 8 | 17 | 32 | M16 |
| C32-M16-350 | 350 | 8 | 17 | 32 | M16 |
| C32-M16-400 | 400 | 8 | 17 | 32 | M16 |
Ⅳ. Products Overview
Slushing oil.
Adhesive Tape.
Packing Straps.
