Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine

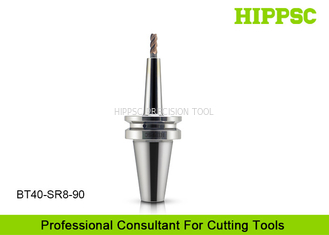

: Large Image : Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT40-SR8-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Runing Accuracy:	0.003mm	Machining:	Deep Hole Precision Machining
Spindle Type:	BT40	Material:	20CrNiMo
Taper:	7:24	Product Type:	BT40 Shrink Fit Tool Holder
Heat Time:	5 Seconds
Highlight:	adjustable tool holder , Taper Tool Holder

Heat Shrinking Fit Tool Holders For BT40 CNC Machine With High Repeat Acccuracy

Ⅰ. Features And Advantages

High regidity and stability, runout 0.003mm.

Durable, increase tool's life.

The toolholder clamp tools directly without collets or nuts, provides high accuracy.
High repeat accuracy, 2000 times more clamping tools.
Slim clamp part, this type holder is very suitable for hole making machining.

High surface quality and quick change tools, save time and cost.

Ⅱ. Technical Parametes

Product Name	Shrink Fit Tool Holder
Spindle Type	BT40
Clamping Range	8 mm
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine

Standard Items

Model No.	D1	D2	D3	L1	L2	L3
BT40-SR03-80	3	9	15.6	80	53	7.8
BT40-SR03-130	3	9	23.5	130	103	7.8
BT40-SR04-80	4	10.5	14.9	80	53	7.8
BT40-SR04-130	4	10.5	20.2	130	103	7.8
BT40-SR06-80	6	12	16	80	53	7.8
BT40-SR06-130	6	12	21.7	130	103	7.8
BT40-SR08-80	8	16	21	80	53	7.8
BT40-SR08-130	8	16	25.7	130	103	7.8
BT40-SR10-80	10	20	24.4	80	53	7.8
BT40-SR10-130	10	20	29.7	130	103	7.8
BT40-SR12-80	12	24	29	80	53	7.8
BT40-SR12-130	12	24	33.7	130	103	7.8
BT40-SR16-80	16	32	36.4	80	53	7.8
BT40-SR16-130	16	32	41.7	130	103	7.8
BT40-SR20-80	20	40	44.4	80	53	7.8
BT40-SR25-90	25	46	46	90	63	7.8

BBT30-SR03-75	3	9	15.6	75	54	7.8
BBT30-SR03-125	3	9	23.5	125	104	7.8
BBT30-SR04-75	4	10.5	14.9	75	54	7.8
BBT30-SR04-125	4	10.5	20.2	125	104	7.8
BBT30-SR06-75	6	12	16.4	75	54	7.8
BBT30-SR06-125	6	12	21.7	125	104	7.8
BBT30-SR08-75	8	16	20.4	75	54	7.8
BBT30-SR08-125	8	16	25.7	125	104	7.8
BBT30-SR10-75	10	20	24.4	75	54	7.8
BBT30-SR10-125	10	20	30	125	104	7.8
BBT30-SR12-75	12	24	28.4	75	54	7.8
BBT30-SR12-125	12	24	33.7	125	104	7.8
BBT30-SR16-75	16	32	36.4	75	54	7.8
BBT30-SR16-125	16	32	41.7	125	104	7.8

BT50-SR06-90	6	12	17	90	52	7.8
BT50-SR06-140	6	12	21.7	140	102	7.8
BT50-SR06-190	6	12	27	190	152	7.8
BT50-SR06-240	6	12	32	240	202	7.8
BT50-SR08-90	8	16	21	88	52	7.8
BT50-SR08-140	8	16	26	138	102	7.8
BT50-SR08-190	8	16	30.9	188	152	7.8
BT50-SR08-240	8	16	36	238	202	7.8
BT50-SR10-90	10	20	25	88	52	7.8
BT50-SR10-140	10	20	30	138	102	7.8
BT50-SR10-190	10	20	35	188	152	7.8
BT50-SR10-240	10	20	40	238	202	7.8
BT50-SR12-90	12	24	28.4	88	52	7.8
BT50-SR12-140	12	24	33.7	138	102	7.8
BT50-SR12-190	12	24	39	188	152	7.8
BT50-SR12-240	12	24	44	238	202	7.8
BT50-SR16-90	16	32	36.4	88	52	7.8
BT50-SR16-140	16	32	41.7	138	102	7.8
BT50-SR16-190	16	32	46.9	188	152	7.8
BT50-SR16-240	16	32	52	238	202	7.8
BT50-SR20-90	20	40	44.4	88	52	7.8
BT50-SR20-140	20	40	50	138	102	7.8
BT50-SR25-100	25	46	46	98	62	7.8
BT50-SR25-140	25	46	56	138	102	7.8
BT50-SR32-100	32	44	53	98	62	7.8

Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine

Head Shrinking Machine

Ⅳ. Overview for HIPPSC Products

BT40 90mm Clamping Shrink fit Tool Holder.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.
Threaded/Screw-on/Thread Screw Tool Holders.
Back Lock/Side Lock Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Morse Taper/Tapering Tool Holders/Shanks.
Face Milling Adapters.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
