Milling Machine Tool Holders / Special Steel Tool Holder Specular Chamfering , BT30- HFB18-33

Large Image : Milling Machine Tool Holders / Special Steel Tool Holder Specular Chamfering , BT30- HFB18-33

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30- HFB18-33

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT30	OEM/ODM:	Yes
Product Type:	Specular Chamfering Tool Holder	Runout:	0.003mm
Machining:	Face Milling And Precesion Milling	Material:	20CrNiMo
Taper Tolerance:	AT3	Size:	16.22.27.32.40
Highlight:	universal tool holder , Taper Tool Holder

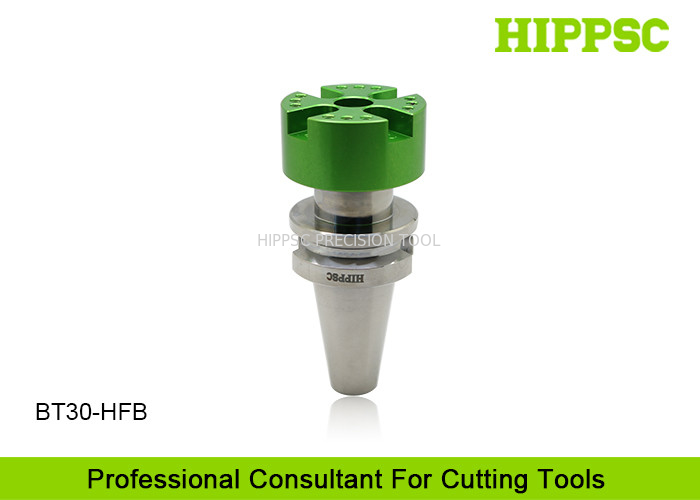

Face Milling Precision Steel Tool Holder BT30 - HFB18 - 32 Specular Chamfering

Ⅰ. Features And Advantages

It is equiped with BT30 Arbor, work with cutters holder disk by screw bolt.
Usually used for machining on workpiece with material of Non-fereous
metals, Copper and Aluminum.
This abor provides high quality of specular chamfering.

Ⅱ. Technical Parametes

Product Name	BT30 Face Milling Tool Hoder
Spindle Type	BT30
Clamping Range	18 mm
Runout	0.003mm
Processing Type	Face Milling, specular chamfering
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

Milling Machine Tool Holders / Special Steel Tool Holder Specular Chamfering , BT30- HFB18-33

Standard Items

Catalog No.	L1	L2	L3	L4	D1	D2	M
BT30-HFB18-38	3.6	26.5	38	16	18	32	M8

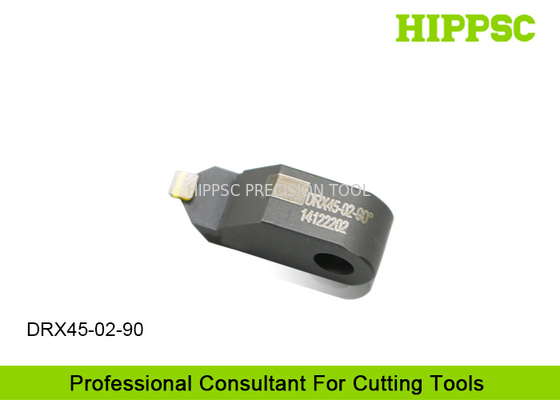

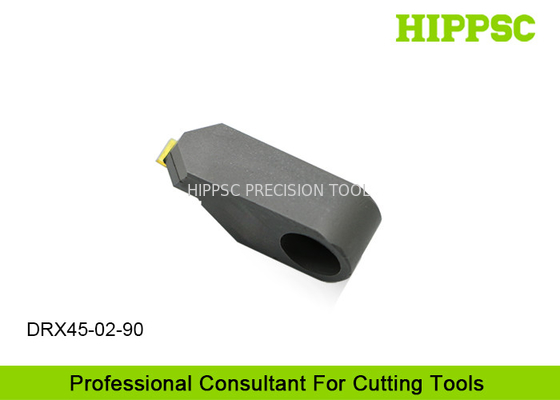

Cutters holder disk
Cutterhead	Hexagon screw	Locating pin
	M8*30	Φ3.5*11.5

Ⅳ. Overview for HIPPSC Products

1. BT30 Specular Chamfering and Face Milling Tool Holder.

2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.

3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.

4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.

6. Tool Holders/Arbors/Shanks for Mirror Finishing.

7. Morse Taper/Tapering Tool Holders/Shanks.

8. Face Milling Adapters/Tool Holders/Arbors/Shanks.

9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

10. Torque Floating Tap/Tapping Chuck and Collet.

11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.

13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.

14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

15. Edge finder/Tool Holder Tightening Fixture/Table.

16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.

17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

18. Cutterhead/ Cutter heard/bar, face milling cutter.

19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Exhibition records

Every year, we take part in some exhibitions relating to our business, indluding both abroad and

domestic exhibitions.

Milling Machine Tool Holders / Special Steel Tool Holder Specular Chamfering , BT30- HFB18-33

In 2016, we already arranged more than 8 exhibitions, including in Russia, Japan, USA and India.

We hope to meet you during the period of exhibitions.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
