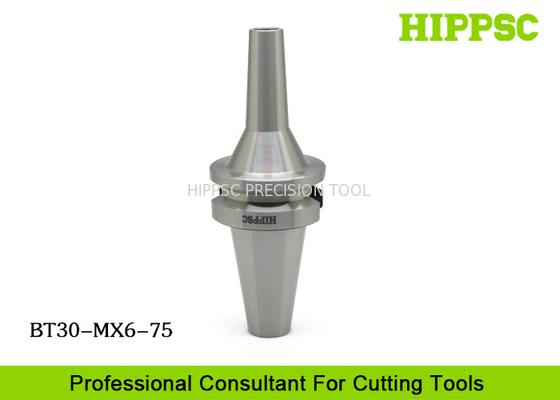

0.003mm Runing Accuracy Steel Tool Holder For High Precision Machining , BT30 - MX6 - 75

Large Image : 0.003mm Runing Accuracy Steel Tool Holder For High Precision Machining , BT30 - MX6 - 75

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-MX6-75

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT30	Product Type:	BT30 Slim-Fit Tool Holder
Runing Accuracy:	0.003mm	Machining:	High Speed And High Precision Machining
Material:	Special Steel	Taper:	7:24
Balance Quality:	G2.5 30000RPM
Highlight:	universal tool holder , Taper Tool Holder

BT30 - MX6 - 75 Steel Tool Holder For High Precision Machining

Ⅰ. Features And Advantages

Slim-Fit collet sleeve , high regidity and stability.

High Accuracy below 0.003mm, work with high precision collet.

Vimineous tool shank, reduce interference of machining.

MX Collet is inserted into holder, easy to put in and out, no need any aided tools.

Slim-fit collet chuck is clamped by slim-fit collet, it is applied for high-speed and high

precision machining.

Ⅱ. Technical Parametes

Product Name	BT30 - MX6 -75 Slim-Fit Tool Hoder
Spindle Type	BT30
Clamping Range	2mm~6 mm
Runout	<0.003mm
Processing Type	High speed and precision machining.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

0.003mm Runing Accuracy Steel Tool Holder For High Precision Machining , BT30 - MX6 - 75

Standard Items

Model Number	d	L	C	L1	Collet	Spanner
BT30-MX6-60	2.0-6.0	60	13	/	MX6	T4
BT30-MX6-90	2.0-6.0	90	13	/	MX6	T4
BT30-MX6-120	2.0-6.0	120	13	/	MX6	T4
BT30-MX8-60	2.0-8.0	60	15	/	MX8	T4
BT30-MX8-90	2.0-8.0	90	15	/	MX8	T4
BT30-MX8-120	2.0-8.0	120	15	/	MX8	T4
BT30-MX10-90	3.0-10.0	90	22	36	MX10	T4
BT30-MX10-105	3.0-10.0	105	22	35	MX10	T4
BT40-MX6-90	2.0-6.0	90	13	/	MX6	T4
BT40-MX6-120	2.0-6.0	120	13	/	MX6	T4
BT40-MX6-150	2.0-6.0	150	13	/	MX6	T4
BT40-MX8-90	2.0-8.0	90	15	/	MX8	T4
BT40-MX8-120	2.0-8.0	120	15	/	MX8	T4
BT40-MX10-75	3.0-10.0	75	22	/	MX10	T6
BT40-MX10-90	3.0-10.0	90	22	43	MX10	T6
BT40-MX10-120	3.0-10.0	120	22	35	MX10	T6
BT40-MX12-90	3.0-12.0	90	30	40	MX12	T5
BT40-MX12-120	3.0-12.0	120	30	43	MX12	T5
BT50-MX10-105	3.0-10.0	105	22	40	MX10	T6
BT50-MX10-135	3.0-10.0	135	22	43	MX10	T6
BT50-MX10-165	3.0-10.0	165	22	35	MX10	T6
BT50-MX12-105	3.0-12.0	105	30	35	MX12	T5
BT50-MX12-135	3.0-12.0	135	30	40	MX12	T5
BT50-MX12-165	3.0-12.0	165	30	40	MX12	T5

Collet Specifications

Item Name	Part No.	Runout	Run-out P CLASS	D	L
MX6	MX6-2/3/4/5/6/3.175	0.005	0.003	9.6	36
MX8	MX8-3/4/5/6/8	0.005	0.003	15	45
MX10	MX10-3/4/5/6/8/10	0.005	0.003	16	52
MX12	MX12-3/4/5/6/8/10/12	0.005	0.003	22	57

Ⅳ. Overview for HIPPSC Products

BT30 75mm Clamping Slim-fit tool holder with ring high precision collet.
High Speed ER SK GER GSK Tool Holder Shank Arbor for CNC Working.
Heat Shrink-Fit Shrinking Tool Holders Shanks/Arbors.
Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
Back Lock/Side Lock Tool Holders/Arbors/Shanks.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Morse Taper/Tapering Tool Holders/Shanks.
Face Milling Adapters/Tool Holders/Arbors/Shanks.
Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
Torque/ Round/Circle Spanners/Wrenches/Keys.
ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
Edge finder/Tool Holder Tightening Fixture/Table.
Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
Cutterhead/ Cutter heard/bar, face milling cutter.
BT, BBT, SK, CAT, HSK/ISO, NT Spinder Type Tool Holder, Shank, Arbor
Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

0.003mm Runing Accuracy Steel Tool Holder For High Precision Machining , BT30 - MX6 - 75

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
