Special Steel Iso 30 Tool Holders With 30000RPM - 40000RPM High Speed , High Precision

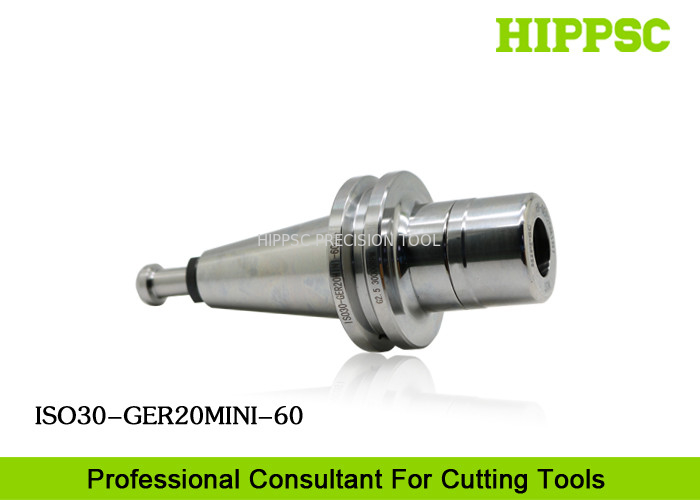

Large Image : Special Steel Iso 30 Tool Holders With 30000RPM - 40000RPM High Speed , High Precision

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	ISO30-GER20MINI-60

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	ISO30	Maximun Speed:	30000RPM~40000RPM
Runing Accuracy:	0.005mm	Machining:	Engraving And Milling Holder
Material:	Special Steel	Taper:	7:24
Highlight:	adjustable tool holder , Taper Tool Holder

ISO 30 Milling Machine Tool Holder 30000RPM - 40000RPM High Speed

Ⅰ. Features And Advantages

Suitable for using on engraving and milling machining, high speed, low working noise
Little weight, machining quickly and trippingly for die, electronic parts, plastics and PCB in high speed.
Easy installation, save work time and cost.
High stability and high accuracy, contribute to high surface quality of work piece.
Not suitable for hard heavy machining and cutting.

Ⅱ. Technical Parametes

Product Name	ISO30 Engraving and Milling Chucks
Spindle Type	ISO30
Clamping Range	(2,3,4,5,6,7,8,9,10,11,12,13) mm
Runout	<0.005mm
Processing Type	Light and High Speed Processing
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

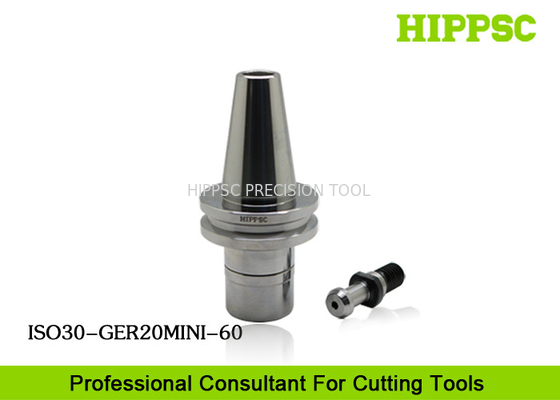

Special Steel Iso 30 Tool Holders With 30000RPM - 40000RPM High Speed , High Precision

Standard Items

Model Number	d	D1	D2	D3	L1	L2	M	Nut	Collet	Spanner	Locking Device
ISO20-GER16MINI-35	3.0-10.0	25	25.5	33	35	26.2	M20*1.0	HN-GER16MINI	ER16	GH25	ISO20
ISO25-GER16MINI-35	3.0-10.0	25	25.5	37	35	26.2	M20*1.0	HN-GER16MINI	ER16	GH25	ISO25
ISO25-GER20MINI-35	3.0-13.0	30	30.5	37	35	26.2	M24*1.0	HN-GER20MINI	ER20	GH30	ISO25
ISO30-GER20MINI-60	3.0-13.0	25	25.5	50	60	40.9	M24*1.0	HN-GER20MINI	ER20	GH25	ISO30
ISO30-GER25MINI-60	3.0-16.0	35	35.5	50	60	40.9	M30*1.0	HN-GER25MINI	ER25	GH35	ISO30

Ⅳ. Overview for HIPPSC Products

1.    ISO30-GER20MINI-60 Engraving and Milling Chucks.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea, By Air Or By Land Transportation.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
