Screw - In Type NC Tool Holder With HSK63A Tapper Shank Working With Carbide Cutter For Mould Industries

China Screw - In Type NC Tool Holder With HSK63A Tapper Shank Working With Carbide Cutter For Mould Industries supplier

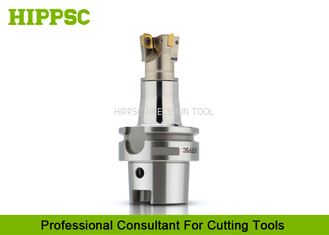

Large Image :  Screw - In Type NC Tool Holder With HSK63A Tapper Shank Working With Carbide Cutter For Mould Industries

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: HSK63A-M12-60

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 2000pcs Per Month
Contact Now
Detailed Product Description
Product Type: Theading Tool Holder Spindle Type: HSK63A
Runout: 0.003mm Cutting Type: EndMilling, Reaming, Drilling
Material: Special Steel Application: Precision Finishing
Customized Service: Available
Highlight:

CNC Cutting Tool Holder

,

cnc mill tool holders

Screw - In Type NC Tool Holder With HSK63A Tapper Shank Working With Carbide Cutter For Mould Industries



Ⅰ​. Features

  1. Holding variety of milling and drilling tools with screw bolt.
  2. Through the screw thread lock, simple and convenient.
  3. The Arbor is holded tightly through taper shank and end face two sides, the
    accuracy and stability are much higher than others.
  4. Better surface quality and runout.

Ⅱ. Technical Parametes ​



Product Name

Thread Screw Tool Holder

Spindle Type

HSK63A

Screw hole size

M16

Beat accuracy

<3μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special steel

Hardness

HRC58~60°
Taper tolerance AT3


Ⅲ. Product Information




Screw - In Type NC Tool Holder With HSK63A Tapper Shank Working With Carbide Cutter For Mould Industries



Model Number L1 L2 D1 d M α
BT30-M08-60 60 12 12.8 8.5 M8 7°
BBT30-M08H-60 60 12 15.4 8.5 M8 7°
BBT30-M08-90 90 12 12.8 8.5 M8 7°
BBT30-M08H-90 90 12 15.4 8.5 M8 7°
BBT30-M10S-60 60 12 15.4 10.5 M10 7°
BBT30-M10-60 60 12 17.8 10.5 M10 7°
BBT30-M10S-90 90 12 15.4 10.5 M10 7°
BBT30-M10-90 90 12 17.8 10.5 M10 7°
BBT30-M12-60 60 12 20.8 12.5 M12 6°
BBT30-M12H-60 60 12 23 12.5 M12 6°
BBT30-M12-90 90 12 20.8 12.5 M12 6°
BBT30-M12H-90 90 12 23 12.5 M12 6°
BBT30-M16-60 60 12 28.8 17 M16 6°
BBT30-M16H-60 60 12 38 17 M16 6°
BBT30-M16-90 90 12 28.8 17 M16 6°
BBT30-M16H-90 90 12 38 17 M16 3°
BBT40-M08-60 60 12 12.8 8.5 M8 7°
BBT40-M08H-60 60 12 15.4 8.5 M8 7°
BBT40-M08-90 90 12 12.8 8.5 M8 7°
BBT40-M08H-90 90 12 15.4 8.5 M8 7°
BBT40-M08-110 110 12 12.8 8.5 M8 7°
BBT40-M08H-110 110 12 15.4 8.5 M8 7°
BBT40-M08-135 135 12 12.8 8.5 M8 7°
BBT40-M08H-135 135 12 15.4 8.5 M8 7°
BBT40-M10S-60 60 12 15.4 10.5 M10 7°
BBT40-M10-60 60 12 17.8 10.5 M10 7°
BBT40-M10S-90 90 12 15.4 10.5 M10 7°
BBT40-M10-90 90 12 17.8 10.5 M10 7°
BBT40-M10S-110 110 12 15.4 10.5 M10 7°
BBT40-M10-110 110 12 17.8 10.5 M10 7°
BBT40-M10S-135 135 12 15.4 10.5 M10 7°
BBT40-M10-135 135 12 17.8 10.5 M10 7°
BBT40-M12-60 60 12 20.8 12.5 M12 6°
BBT40-M12H-60 60 12 23 12.5 M12 6°
BBT40-M12-90 90 12 20.8 12.5 M12 6°
BBT40-M12H-90 90 12 23 12.5 M12 6°
BBT40-M12-110 110 12 20.8 12.5 M12 6°
BBT40-M12H-110 110 12 23 12.5 M12 6°
BBT40-M12-135 135 12 20.8 12.5 M12 6°
BBT40-M12H-135 135 12 23 12.5 M12 6°
BBT40-M16-60 60 12 28.8 17 M16 6°
BBT40-M16H-60 60 12 38 17 M16 6°
BBT40-M16-90 90 12 28.8 17 M16 6°
BBT40-M16H-90 90 12 38 17 M16 3°
BBT40-M16-110 110 12 28.8 17 M16 6°
BBT40-M16-135 135 12 28.8 17 M16 6°


Ⅳ. Products Overview

  1. BT40 Threading Tool Holder.
  2. BT,BBT,SK,CAT,MAT,APU,NT,NBT,ISO,ST.
  3. Hydraulic Expansion Tool holder of BT/SK/HSK.
  4. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  5. Threaded/Screw-on/Thread Screw Tool Holders.
  6. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  7. Morse Tap AdapterTools Holder.
  8. Torque Tap/Tapping Chuck.
  9. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  10. Torque/Round/Circle Spanner Wrenche/Keys.
  11. Edge finder/Tool Holder Tightening Fixture/Table.
  12. CNC Indexable Cutting Tools.
  13. Rapid Changing CNC Tool Bits.



Ⅴ​. Shipment​


By Sea; By Air; By Train.


TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty


  • High Accuracy Measuring Instruments and Technology.
  • Custom Made Service of Products and Packing.
  • Customer can find any products relating to CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
