Semi Precision Finishing Cnc Machine Tool Holders For Clamping Screw Hole Milling

China Semi Precision Finishing Cnc Machine Tool Holders For Clamping Screw Hole Milling supplier
Semi Precision Finishing Cnc Machine Tool Holders For Clamping Screw Hole Milling supplier Semi Precision Finishing Cnc Machine Tool Holders For Clamping Screw Hole Milling supplier

Large Image :  Semi Precision Finishing Cnc Machine Tool Holders For Clamping Screw Hole Milling

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BT30-MC08-45

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: HSK-MC Material: 20CrNiMo
Chucking Dia: M06~M16 Color: Silver White
Product Type: Theading Tool Holder Usage: Semi Precision Finishing
Highlight:

CNC Cutting Tool Holder

,

cnc mill tool holders

High Precision Threading Tool Holder For Clamping Screw Hole Milling



Ⅰ​. Features

  1. Nice rigidity, cutting fast, high efficient.
  2. Connectible multi-form changeable head
  3. Double Positioning of Thread and End Face
  4. Thread cutter head and the tungsten steel cutter tool.
  5. Through the screw thread lock, simple and convenient.
  6. Wide range of applications, suits for many kinds of quick change tools.


Ⅱ. Technical Parametes ​



Product Name

Threading Tool Holder

Spindle Type

HSK-E

Screw hole size

M06~M16

Beat accuracy

≤ 0.003 μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20Crnimo

Hardness

HRC58~60°


Ⅲ. Product Show

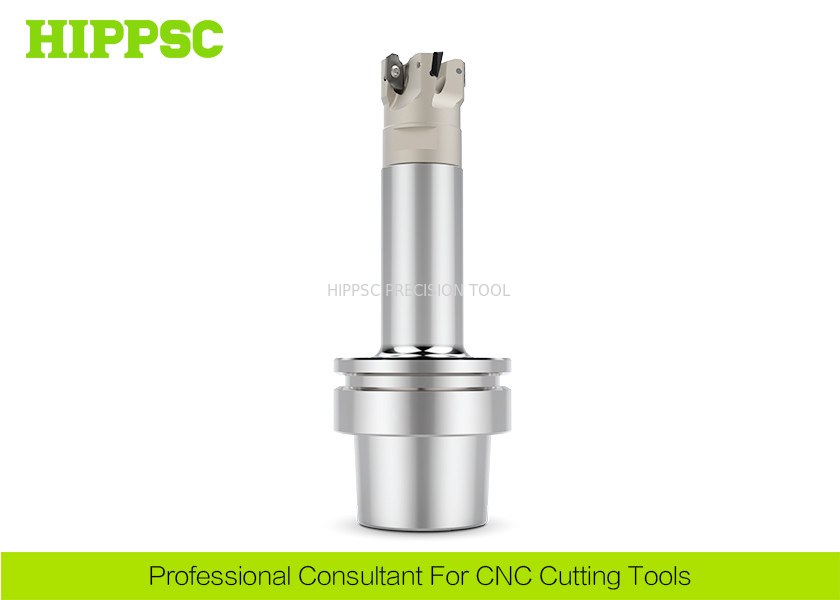

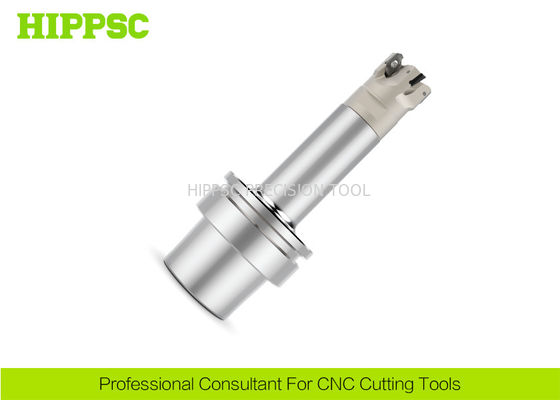

Semi Precision Finishing Cnc Machine Tool Holders For Clamping Screw Hole Milling
Available Standard Items




Cat.No		 L1 L2 R D1 D2 M
HSK40E-MC08-60 60 40 4 15.4 8.5 M8
HSK40E-MC10-60 60 40 4 19 10.5 M10
HSK40E-MC12-60 60 40 4 24 12.5 M12
HSK50E-MC08-60 60 34 5 15.4 8.5 M8
HSK50E-MC08-90 90 64 5 15.4 8.5 M8
HSK50E-MC10-60 60 34 5 19 10.5 M10
HSK50E-MC10-90 90 64 5 19 10.5 M10
HSK50E-MC12-60 60 34 5 24 12.5 M12
HSK50E-MC12-90 90 64 5 24 12.5 M12
HSK50E-MC16-60 60 34 5 29 17 M16
HSK50E-MC16-90 90 64 5 29 17 M16



Ⅳ. Products Overview

  1. CNC Indexable Cutting Tools.
  2. BT40 Threading Tool Holder.
  3. Hydro Expansion Tool holder of BT/SK/HSK.
  4. Torque/Round/Circle Spanner Wrenche/Keys.
  5. Edge finder/Tool Holder Tightening Fixture/Table.
  6. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  7. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.



Ⅴ​. Shipment​


By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.
Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty


  • We use imported famous professional instruments to do quality control.
  • Our workers are experienced and well trained.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
