Clamp Screw Hole Lathe Machine Cutting Tool Holder 20 CrNiMo Material 3μM Runout

China Clamp Screw Hole Lathe Machine Cutting Tool Holder 20 CrNiMo Material 3μM Runout supplier
Clamp Screw Hole Lathe Machine Cutting Tool Holder 20 CrNiMo Material 3μM Runout supplier Clamp Screw Hole Lathe Machine Cutting Tool Holder 20 CrNiMo Material 3μM Runout supplier

Large Image :  Clamp Screw Hole Lathe Machine Cutting Tool Holder 20 CrNiMo Material 3μM Runout

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BT30-MC08-45

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Runout: 3μm Spindle Type: BT-MC
Material: 20CrNiMo Product Type: Theading Tool Holder
Cutting Type: EndMilling, Reaming, Drilling Application: Semi Precision Finishing
Highlight:

CNC Cutting Tool Holder

,

cnc mill tool holders

High Precision Threading Tool Holder Clamp Screw Hole For Milling



Ⅰ​. Features

  1. Nice rigidity, cutting fast, high efficient.
  2. Thread cutter head and the tungsten steel cutter tool.
  3. Through the screw thread lock, simple and convenient.
  4. Wide range of applications, suits for many kinds of quick change tools.


Ⅱ. Technical Parametes ​



Product Name

Threading Tool Holder

Spindle Type

BT

Screw hole size

M06~M16

Beat accuracy

≤ 0.003 μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20Crnimo

Hardness

HRC58~60°


Ⅲ. Product Show

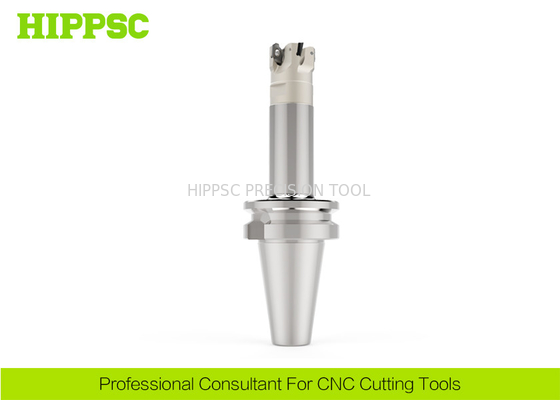

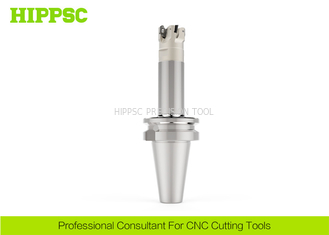

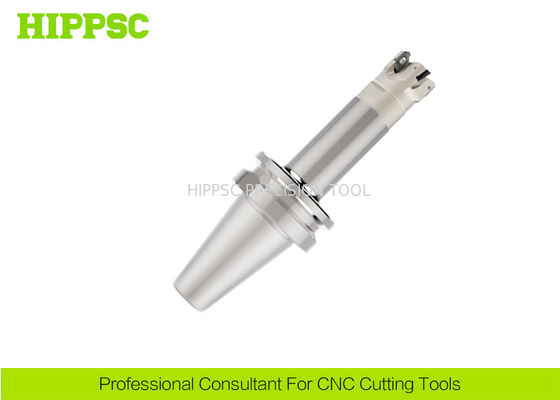

Clamp Screw Hole Lathe Machine Cutting Tool Holder 20 CrNiMo Material 3μM Runout


Available Standard Items






Cat.No		 L1 L2 R D1 D2 M
BT30-MC08-45 45 23 4 15.4 8.5 M8
BT30-MC08-60 60 38 4 15.4 8.5 M8
BT30-MC08-90 90 68 4 15.4 8.5 M8
BT30-MC08-110 110 88 4 15.4 8.5 M8
BT30-MC10-45 45 23 4 19 10.5 M10
BT30-MC10-60 60 38 4 19 10.5 M10
BT30-MC10-90 90 68 4 19 10.5 M10
BT30-MC10-110 110 88 4 19 10.5 M10
BT30-MC12-45 45 23 4 24 12.5 M12
BT30-MC12-60 60 38 4 24 12.5 M12
BT30-MC12-90 90 68 4 24 12.5 M12
BT30-MC12-110 110 88 4 24 12.5 M12
BT30-MC16-45 45 23 4 29 17 M16
BT30-MC16-60 60 38 4 29 17 M16
BT30-MC16-90 90 68 4 29 17 M16
BT40-MC08-45 45 18 5 15.4 8.5 M8
BT40-MC08-60 60 33 5 15.4 8.5 M8
BT40-MC08-90 90 63 5 15.4 8.5 M8
BT40-MC08-110 110 83 5 15.4 8.5 M8
BT40-MC10-45 45 18 5 19 10.5 M10
BT40-MC10-60 60 33 5 19 10.5 M10
BT40-MC10-90 90 63 5 19 10.5 M10
BT40-MC10-110 110 83 5 19 10.5 M10
BT40-MC12-45 45 18 5 24 12.5 M12
BT40-MC12-60 60 33 5 24 12.5 M12
BT40-MC12-90 90 63 5 24 12.5 M12
BT40-MC12-110 110 83 5 24 12.5 M12
BT40-MC16-45 45 18 5 29 17 M16
BT40-MC16-60 60 33 5 29 17 M16
BT40-MC16-90 90 63 5 29 17 M16
BT40-MC16-110 110 83 5 29 17 M16
BT50-MC08-60 60 22 10 15.4 8.5 M8
BT50-MC08-90 90 52 10 15.4 8.5 M8
BT50-MC08-110 110 72 10 15.4 8.5 M8
BT50-MC10-60 60 22 10 19 10.5 M10
BT50-MC10-90 90 52 10 19 10.5 M10
BT50-MC10-110 110 72 10 19 10.5 M10
BT50-MC12-60 60 22 10 24 12.5 M12
BT50-MC12-90 90 52 10 24 12.5 M12
BT50-MC12-110 110 72 10 24 12.5 M12
BT50-MC16-60 60 22 10 29 17 M16
BT50-MC16-90 90 52 10 29 17 M16
BT50-MC16-110 110 72 10 29 17 M16


Ⅳ. Products Overview


  1. CNC Indexable Cutting Tools.
  2. BT40 Threading Tool Holder.
  3. Hydro Expansion Tool holder of BT/SK/HSK.
  4. Torque/Round/Circle Spanner Wrenche/Keys.
  5. Edge finder/Tool Holder Tightening Fixture/Table.
  6. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  7. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.



Ⅴ​. Shipment​


By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.
Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty


  • We use imported famous professional instruments to do quality control.
  • Our workers are experienced and well trained.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
