Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing

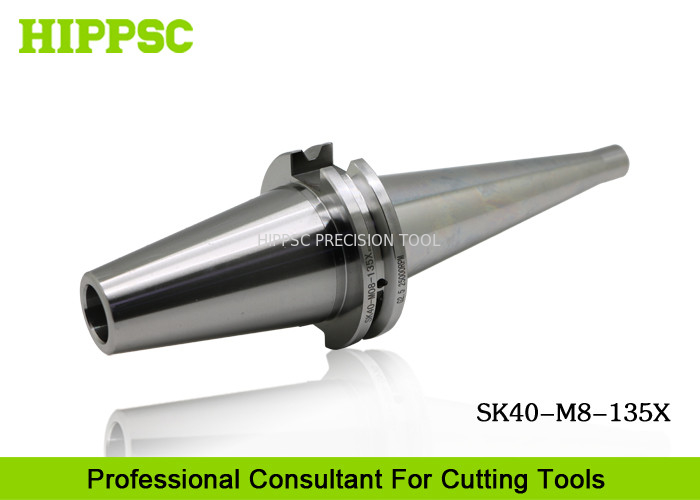

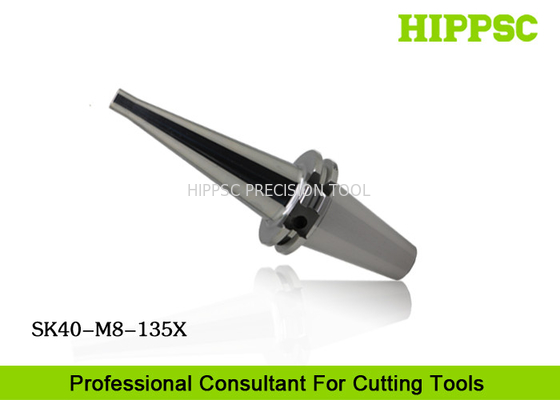

Large Image : Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	SK40-M8 -135X

Payment & Shipping Terms:

Minimum Order Quantity:	3pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	3~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Product Type:	Theading Tool Holder	Spindle Type:	SK40
Runout:	Below 0.003μm	Cutting Type:	EndMilling, Reaming, Drilling
Material:	Special Steel	Customized Service:	Available
Application:	Semi Precision Finishing	Screw Hole:	M8
Highlight:	CNC Cutting Tool Holder , cnc mill tool holders

Special Steel White Drilling Threading Tool Holder Adjustable Semi Precision Finishing

Ⅰ. Features

The Tool Hold holds cutting tools through thread screw with high stability.
It is very easy to lock and unlock tools, high efficient and save time.
The arbor have nice rigidity with slim shank for hole making.
Wide range of applications, suits for many kinds of quick change tools.
Very less interference happened during machining.

Ⅱ. Technical Parametes

Product Name	Threading Tool Holder
Spindle Type	SK40
Screw hole	M08
Beat accuracy	3μm
Processing Type	Endmilling, Reaming, Drilling, Finishing
Product Material	Special steel
Hardness	HRC58~60°
Taper tolerance	AT3

Ⅲ. Product Show

CAD Products structure
Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing

Products catalog form

Part Number	L1	L2	D1	M	α
SK40-M08-60	60	12	12.8	M08	7°
SK40-M08H-60	60	12	15.4	M08	7°
SK40-M08-90	90	12	12.8	M08	7°
SK40-M08H-90	90	12	15.4	M08	7°
SK40-M08-135	135	12	12.8	M08	7°
SK40-M08H-135	135	12	15.4	M08	7°
SK40-M10S-60	60	12	15.4	M10	7°
SK40-M10-60	60	12	17.8	M10	7°
SK40-M10S-90	90	12	15.4	M10	7°
SK40-M10-90	90	12	17.8	M10	7°
SK40-M10S-135	135	12	15.4	M10	7°
SK40-M10-135	135	12	17.8	M10	7°
SK40-M12-60	60	12	20.8	M12	6°
SK40-M12H-60	60	12	23	M12	6°
SK40-M12-90	90	12	20.8	M12	6°
SK40-M12H-90	90	12	23	M12	6°
SK40-M12-135	135	12	20.8	M12	6°
SK40-M12H-135	135	12	23	M12	6°
SK40-M16-60	60	12	28.8	M16	6°
SK40-M16H-60	60	12	38	M16	6°
SK40-M16-90	90	12	28.8	M16	6°
SK40-M16H-90	90	12	38	M16	3°
SK40-M16-135	135	12	28.8	M16	6°

Part number	L1	L2	D1	M	α
SK50-M08-60	60	12	12.8	M08	7°
SK50-M08H-60	60	12	15.4	M08	7°
SK50-M08-90	90	12	12.8	M08	7°
SK50-M08H-90	90	12	15.4	M08	7°
SK50-M08-135	135	12	12.8	M08	7°
SK50-M08H-135	135	12	15.4	M08	7°
SK50-M10S-60	60	12	15.4	M10	7°
SK50-M10-60	60	12	17.8	M10	7°
SK50-M10S-90	90	12	15.4	M10	7°
SK50-M10-90	90	12	17.8	M10	7°
SK50-M10S-135	135	12	15.4	M10	7°
SK50-M10-135	135	12	17.8	M10	7°
SK50-M12-60	60	12	20.8	M12	6°
SK50-M12H-60	60	12	23	M12	6°
SK50-M12-90	90	12	20.8	M12	6°
SK50-M12H-90	90	12	23	M12	6°
SK50-M12-135	135	12	20.8	M12	6°
SK50-M12H-135	135	12	23	M12	6°
SK50-M16-60	60	12	28.8	M16	6°
SK50-M16H-60	60	12	38	M16	6°
SK50-M16-90	90	12	28.8	M16	6°
SK50-M16H-90	90	12	38	M16	3°
SK50-M16-135	135	12	28.8	M16	6°

Ⅳ. Products Overview

DIN6987/SK40 7:24 Taper Threading Tool Holder.
Hydraulic Expansion Tool holder of BT/SK/HSK.
Shrink-Fit/Heat Shrinking/Heat Expansion Tool Holders.
Threaded/Screw-on/Thread Screw Tool Holders.
Pull type /Side Lock and Mirror Finishing Toolholders.
Morse Tap Adapter/Tools Holder.
Torque Tap/Tapping Chuck.
ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
Torque/Circle/hook Spanner/Wrench.
Edge finder/Tool Holder Lock Fixture.
CNC Indexable Cutting Tools.
Quick change CNC Tool Bits.

Ⅴ. Shipment

Our goods could be sent to all over the work through:

By Sea, By Air, By Train/Truck, or by TNT, EMS, DHL, UPS and FedEx.

For international express, we offer door to door service. We can even pay

shipping cost according to order quantity and value.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

Arrange Delivery Within 2 days at soonest After order and payment are confirmed and received..
Strict and Careful Inspection Before Delivering Goods to Our customers .
Use Imported Advanced Gauges For Examing Accuracy and Technical Factors.
We are always committed to achieve 0 percents error.

Ⅷ. Warranty

High Accuracy Equipments and Technology, Experienced Workers.
Custom Made Service, Professional suggestions.
Customer can find any products relating CNC Cutting here.
Warranty 12 Months, Free Repairing Service.
Best Service, Considerate and Sincere.
