Minimum Order Quantity:	5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	HSK63A	OEM:	Yes
Product Type:	Hydraulic Tool Holder With Ultra Short Clamping	Runout:	0.003μm
Cutting Type:	End Milling, Reaming, Drilling	Material:	Special Steel
Application:	Hole Making Process And Precision Finishing	Torque Value:	450 Nm
Collet Type:	HM
Highlight:	machine tool holders , mill tool holders

Super Nice Quality Hydraulic Chuck HSK63A Spindle For CNC Machine Center

Ⅰ. Features

Up up to true running and repeat accuracy < 0.003 mm-Increase the tool’s service life
Excellent vibration damping Improved surface quality, Prevents chipping of tool cutting edge
Versatile clamping range thanks to intermediate straight shank colle.
Accurate length presetting axially or radially
Suitable for finishing and semi-finishing machining.
Easy handling and operation - no need peripheral equipment- Change tools within seconds
Precision-balanced as standard G 2.5 / 25000 1/min.

Ⅱ. Technical Parametes

Product Name	Compact Hydraulic Tool Holder
Spindle Type	HSK63A
Clamping Range	6/8/10/12/16/20/25mm (Diameter)
Beat accuracy	< 0.003 mm
Processing Type	Endmilling, Reaming, Drilling, Finishing
Product Material	20CrNiMo
Hardness	HRC58~60°

Ⅲ. Product Show

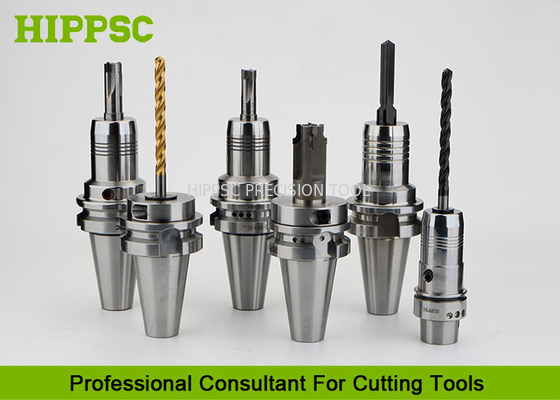

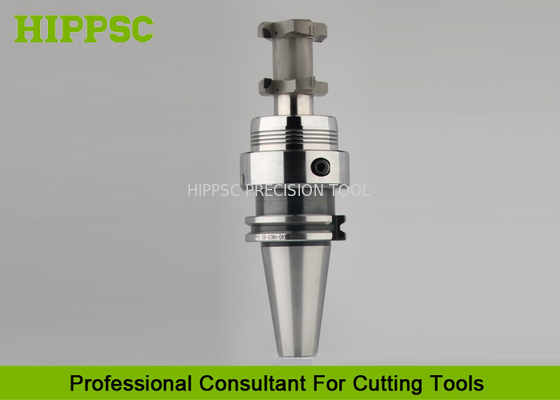

Long Tool Life Of Hydraulic Expansion Tool Holder HSK63A For Automobile Industries Machining

Price List

Ⅳ. Products Overview

B40 Economical Hydraulic Tool holder.
Hydro Expansion Tool holder of BT/SK/HSK.
Shrinking-fit Tool Holders.
Screw-in Tool Holders.
Toolholders For Mirror Finishing.
Morse Tap Adapter.
All Standard Collets-ER/SK/C Power type/Slim straight shank.
All kinds of wrenches/spanners.
Auxiliary equipment-Arbor tester, tool lock fixture, taper wiper and edge sensor maching.
CNC Indexable Cutting Inserts.
Other standard accessories.
We offer EOM/ODM service to every customer.
