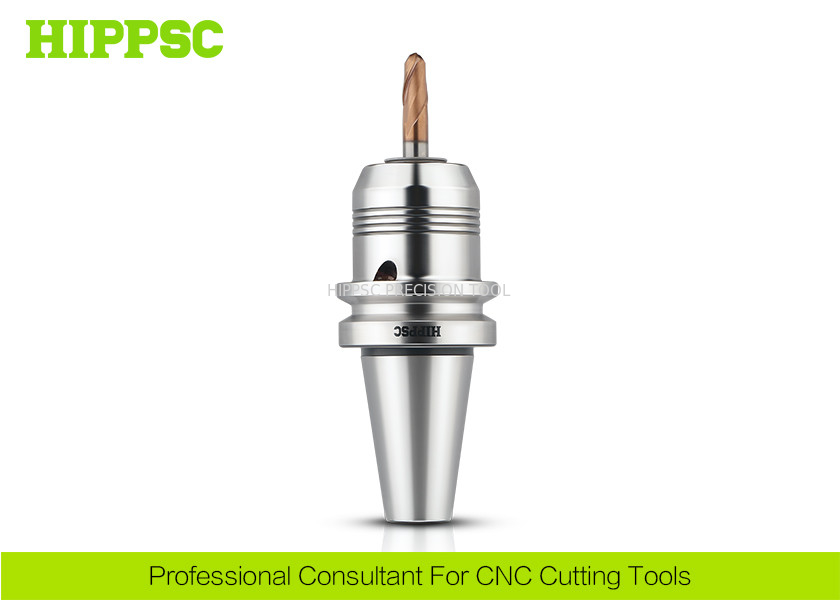

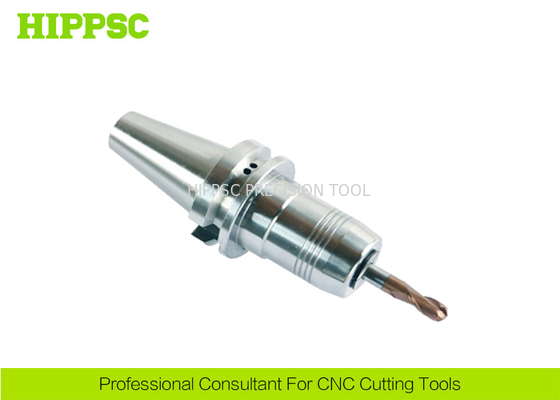

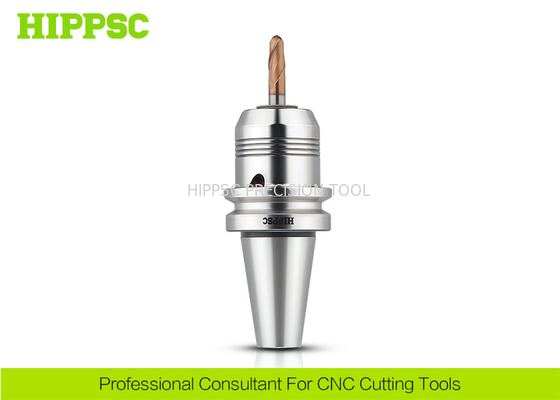

Collet Holder Milling Machine Hydraulic Tool Holder For Automobile Machining

China Collet Holder Milling Machine Hydraulic Tool Holder For Automobile Machining supplier
Collet Holder Milling Machine Hydraulic Tool Holder For Automobile Machining supplier Collet Holder Milling Machine Hydraulic Tool Holder For Automobile Machining supplier

Large Image :  Collet Holder Milling Machine Hydraulic Tool Holder For Automobile Machining

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BT40-HM6(P)-140

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: BT-HM-P Clamping: 3~32mm
Material: Special Steel Product Type: Hydraulic Tool Holder
Packing: PE Bag. Plastic Box. Carton Box. Usage: Hole Making Process And Precision Finishing
Highlight:

machine tool holders

,

boring tool holder

Collet Holder Milling Machine Hydraulic Tool Holder For Automobile Machining



Ⅰ​. Features

  1. Run-out ≤ 0.003 μm
  2. Come out high surface quality
  3. Dynamic Balance G2.5, 25000 RPM
  4. traightening clamp design, strong clamping force
  5. High precision, many specifications, high quality, sufficient stock
  6. Hydraulic design, simple locking, easy to operate, fast and convenient

Ⅱ. Technical Parametes ​


Product Name

Hydraulic Tool Holder

Spindle Type

 BT

Clamping Range

3~32mm

Beat accuracy

< 0.003 mm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special Steel

Hardness

HRC58~60°


Ⅲ. Product Show


Collet Holder Milling Machine Hydraulic Tool Holder For Automobile Machining



Cat. No		 D1 D2 D3 L1 L2MAX L2MIN M Collet Spanner Type
BT40-HM6-140 6 25 28 140 37.5 27.5 M5×0.8 — T4 FIG1
BT40-HM8-140 8 27 30 140 37.5 27.5 M6×1.0 —
BT40-HM10-140 10 29 32 140 42.5 37.5 M8×1.0 —
BT40-HM12-140 12 31 34 140 47.5 37.5 M8×1.0 HM12/OHM12
BT40-HM14-140 14 33 36 140 47.5 37.5 M8×1.0 -
BT40-HM16-140 16 35 38 140 52.5 42.5 M10*1.0 -
BT40-HM18-140 18 38 41 140 52.5 42.5 M10*1.0 -
BT40-HM20-140 20 40 43 140 52.5 42.5 M10*1.0 HM20/OHM20
BT40-HM25-140 25 57 - 140 61 51 M16*1.0 - T5 FIG2
BT40-HM32-140 32 63 - 140 65 55 M16*1.0 HM32/OHM32
BT50-HM6-140 6 25 28 140 37.5 27.5 M5×0.8 - T4 FIG1
BT50-HM8-140 8 27 30 140 37.5 27.5 M6×1.0 -
BT50-HM10-140 10 29 32 140 42.5 37.5 M8×1.0 -
BT50-HM12-140 12 31 34 140 47.5 37.5 M8×1.0 HM12/OHM12
BT50-HM14-140 14 33 36 140 47.5 37.5 M8×1.0 —
BT50-HM16-140 16 35 38 140 52.5 42.5 M10*1.0 —
BT50-HM18-140 18 38 41 140 52.5 42.5 M10*1.0 —
BT50-HM20-140 20 40 43 140 52.5 42.5 M10*1.0 HM20/OHM20
BT50-HM25-150 25 57 - 150 61 51 M16×1.0 — T5 FIG2
BT50-HM32-150 32 63 - 150 65 55 M16×1.1 HM32/OHM32





Ⅳ. Products Overview

  1. Morse Tap Adapter.
  2. Screw-in Tool Holders.
  3. Shrinking-fit Tool Holders.
  4. B40 Economical Hydraulic Tool holder.
  5. Hydro Expansion Tool holder of BT/SK/HSK.
  6. All Standard Collets-ER/SK/C Power type/Slim straight shank.
Ⅴ​. Flexible Shipment Ways​

Collet Holder Milling Machine Hydraulic Tool Holder For Automobile Machining

1. By Sea.  By Air.  By Train/Truck.


2. TNT.   EMS.  UPS.  FedEx.  DHL.



3. Custom decide.


Ⅵ. Packing

Basic:
PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.



Custom made available.
Tell us what kinds of packing material and design you want, we can

do as your requirements.


Ⅶ. Warehouse

  1. Super less error on delivering Goods and Items of Order.
  2. Use Gauges For Examing Accuracy and Technical Factors.
  3. Strict and Careful Inspection Before Delivering Goods to Our customers .
  4. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.

Collet Holder Milling Machine Hydraulic Tool Holder For Automobile Machining


Ⅷ. Warranty

  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • First Grade Service, Considerate and Sincere.
