| Clam Diameter: | 3~32mm | Color: | Silver |
|---|---|---|---|
| Spindle Type: | CAT-HM | Appearance: | Coating Treatment |
| Precision: | 0.003mm | Application: | Electronics, Automotive, Die/mould And Aerospace |
| Highlight: | machine tool holders,boring tool holder |
||

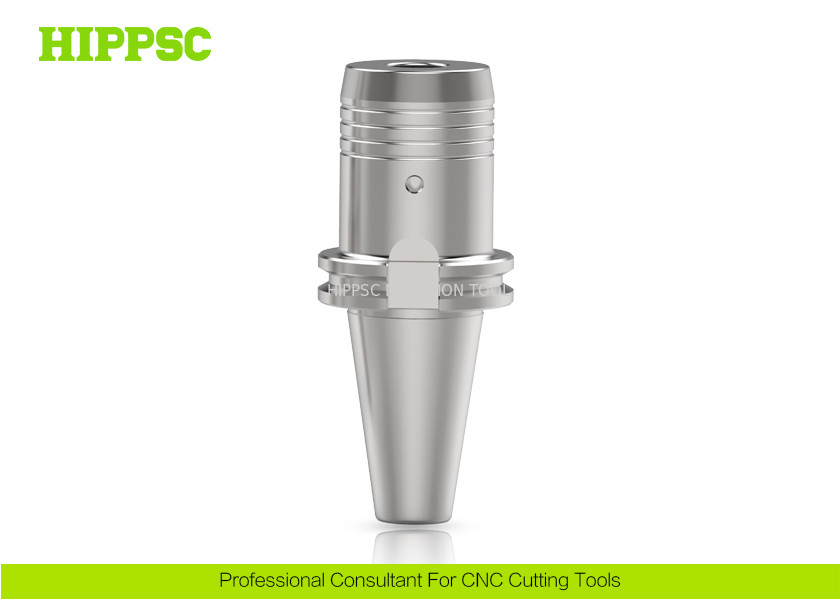

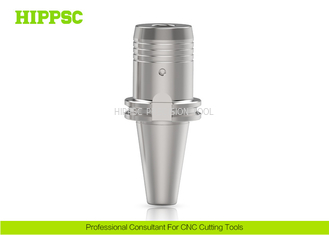

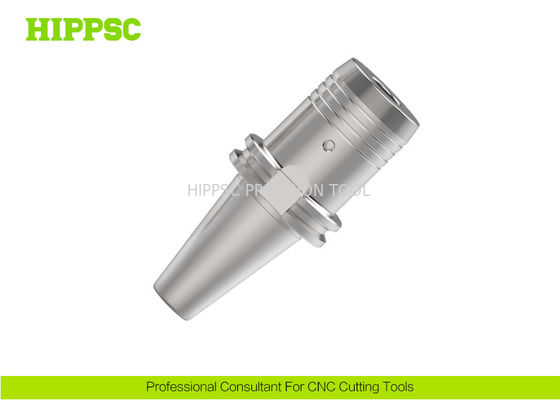

Milling Machine Tool Holders Hydraulic Tool Holders With High Speed Cutting
Ⅰ. Advantages
Ⅱ. Technical Parametes
|
Product Name |
Hydraulic Tool Holder |
|
Spindle Type |
CAT |
|
Clamping Range |
3mm~16mm (diameter) |
|
Beat accuracy |
< 0.003mm |
|
Processing Type |
Endmilling, Reaming, Drilling, Finishing |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |
Ⅲ. Product Show
Available Standard Items
Cat. No |
D1 | D2 | D3 | L1 | L2MAX | L2MIN | L3 | M | Collet | Spanner |
| CAT40-HM6-80.5 | 6 | 28 | 50 | 80.5 | 37.5 | 27.5 | 44 | M5*0.8 | -- | T4 |
| CAT40-HM8-80.5 | 8 | 30 | 50 | 80.5 | 37.5 | 27.5 | 44 | M6*1 | -- | |
| CAT40-HM10-80.5 | 10 | 32 | 50 | 80.5 | 42.5 | 32.5 | 44 | M8*1 | -- | |
| CAT40-HM12-80.5 | 12 | 34 | 50 | 80.5 | 47.5 | 37.5 | 44 | M8*1 | HM12/OHM12 | |
| CAT40-HM14-80.5 | 14 | 36 | 50 | 80.5 | 47.5 | 37.5 | 44 | M10*1 | -- | |
| CAT40-HM16-80.5 | 16 | 38 | 50 | 80.5 | 52.5 | 42.5 | 48 | M10*1 | -- | |
| CAT40-HM18-80.5 | 18 | 41 | 50 | 80.5 | 52.5 | 42.5 | 48 | M10*1 | -- | |
| CAT40-HM20-80.5 | 20 | 44 | 50 | 80.5 | 52.5 | 42.5 | 48 | M10*1 | HM20/OHM20 | |
| CAT40-HM25-80.5 | 25 | 65 | 66 | 80.5 | 61 | 51 | 22 | M16*1 | -- | T5 |
| CAT40-HM32-80.5 | 32 | 63 | 80 | 80.5 | 65 | 55 | 26 | M16*1 | HM32/OHM32 | |
| CAT50-HM6-90 | 6 | 28 | 50 | 90 | 37.5 | 27.5 | 30 | M5*0.8 | -- | T4 |
| CAT50-HM8-90 | 8 | 30 | 50 | 90 | 37.5 | 27.5 | 30 | M6*1 | -- | |
| CAT50-HM10-90 | 10 | 32 | 50 | 90 | 42.5 | 32.5 | 30 | M8*1 | -- | |
| CAT50-HM12-90 | 12 | 34 | 50 | 90 | 47.5 | 37.5 | 30 | M8*1 | HM12/OHM12 | |
| CAT50-HM14-90 | 14 | 36 | 50 | 90 | 47.5 | 37.5 | 30 | M8*1 | -- | |
| CAT50-HM16-90 | 16 | 38 | 50 | 90 | 52.5 | 42.5 | 30 | M10*1 | -- | |
| CAT50-HM18-90 | 18 | 41 | 50 | 90 | 52.5 | 42.5 | 30 | M10*1 | -- | |
| CAT50-HM20-90 | 20 | 43 | 50 | 90 | 52.5 | 42.5 | 34 | M10*1 | HM20/OHM20 | |
| CAT50-HM25-90 | 25 | 57 | -- | 90 | 52.5 | 42.5 | 85.9 | M16*1 | -- | T5 |
| CAT50-HM32-115 | 32 | 63 | -- | 115 | 65 | 55 | 95.9 | M16*1 | HM32/OHM32 |
Ⅳ. Products Overview
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. Packing
Main Material
PE Bag.
Plastic Box.
Carton Box.
Other Materials
Slushing oil.
Adhesive Tape.
Packing Straps.
Ⅶ. Warehouse
1. We usually arrange delivery within 2 days for standard products after payment confirmed.
2. OQC and IQC are always used to control and exam products quality.
3. We have special test gauges and equipments to measure products technical parameter.
Ⅷ. Warranty
12 Months warranty for free repairing and replacement.
