SK Shrink Fit Tool Holders , 0.003μM Machine Tool Holders For Automobile Machining

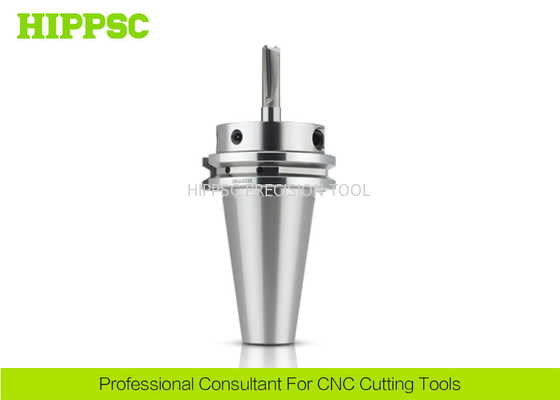

Large Image : SK Shrink Fit Tool Holders , 0.003μM Machine Tool Holders For Automobile Machining

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	SK40-EHM20-50

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	SK	Product Type:	Hydraulic Tool Holder With Ultra Short Clamping
Runout:	0.003μm	Cutting Type:	End Milling, Reaming, Drilling
Material:	Special Steel	Application:	Hole Making Process And Precision Finishing
Highlight:	machine tool holders , boring tool holder

SK Shrink Fit Tool Holders Hydraulic Tool Holder For Automobile Machining

Ⅰ. Features

Up up to true running and repeat accuracy < 0.003 mm-Increase the tool’s service life.
Excellent vibration damping Improved surface quality, Prevents chipping of tool cutting edge.
Versatile clamping range thanks to intermediate straight shank colle.
Suitable for finishing and semi-finishing machining.
Easy handling and operation - no need peripheral equipment- Change tools within seconds.
Precision-balanced as standard G 2.5 / 25000 1/min.

Ⅱ. Technical Parametes

Product Name	Compact Hydraulic Tool Holder
Spindle Type	SK
Clamping Range	6/8/10/12/16/20/25mm (Diameter)
Beat accuracy	< 0.003 mm
Processing Type	Endmilling, Reaming, Drilling, Finishing
Product Material	Special Steel
Hardness	HRC58~60°

Ⅲ. Product Show

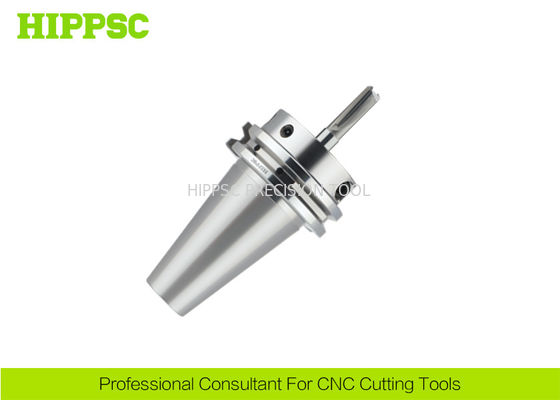

SK Shrink Fit Tool Holders , 0.003μM Machine Tool Holders For Automobile Machining
Price List

Cat. No	D1	D2	L1	L2MAX	L2MIN	M	Collet	Spanner
SK40-EHM20-50	20	51.5	50	52	42	M10*1.5	HM20/OHM20	T5
SK50-EHM20-33	20	51.5	33.1	52	42	M10*1.5	HM20/OHM20
SK50-EHM25-33	25	58	33.1	56	46	M10*1.5	/
SK50-EHM32-33	32	68.5	33.1	60	50	M10*1.5	OHM32

Ⅳ. Products Overview

B40 Economical Hydraulic Tool holder.
Hydro Expansion Tool holder of BT/SK/HSK.
Shrinking-fit Tool Holders.
Screw-in Tool Holders.
Toolholders For Mirror Finishing.
Morse Tap Adapter.
All Standard Collets-ER/SK/C Power type/Slim straight shank.
All kinds of wrenches/spanners.
Auxiliary equipment-Arbor tester, tool lock fixture, taper wiper and edge sensor maching.
CNC Indexable Cutting Inserts.
Other standard accessories.
We offer EOM/ODM service to every customer.

Ⅴ. Flexible Shipment Ways

1.By Sea.By Air.By Train/Truck.

2.TNT.EMS.DHL.UPS.FedEx.

3.Custom decide.
Ⅵ. Packing
Basic: PE Bag.Plastic Box.Carton Box.
Other Materials: Slushing oil.Adhesive Tape.Packing Straps.

Custom made available:
Tell us what kinds of packing material and design you want, we can
do as your requirements.
