20CrNiMo Hydraulic Tool Holder / HSK100A Tool Holders High Accuracy 3μm
Ⅰ. Features
Ⅱ. Technical Parametes
|
Product Name |
Hydraulic Tool Holder |
|
Spindle Type |
HSK100A |
|
Clamping Range |
4/6/8/10/12/16/20mm (diameter) |
|
Beat accuracy |
≤ 0.003 μm |
|
Processing Type |
Endmilling, Reaming, Drilling, Finishing |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |

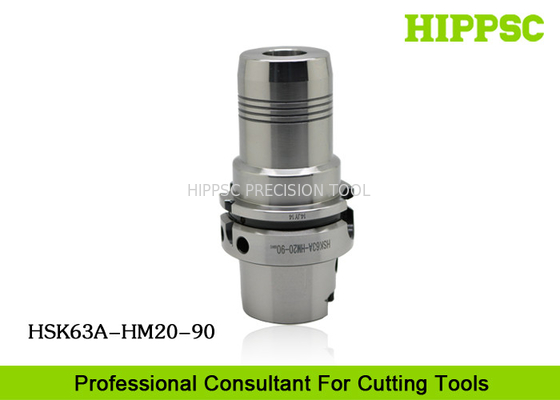

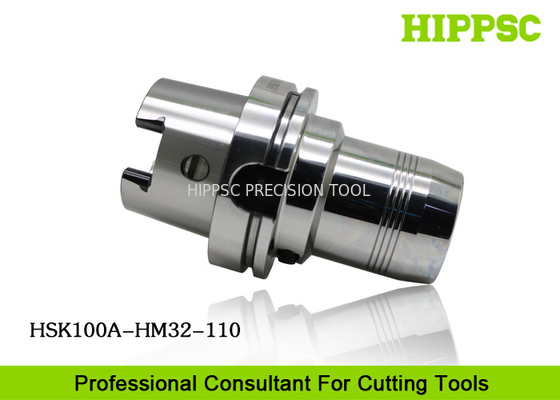

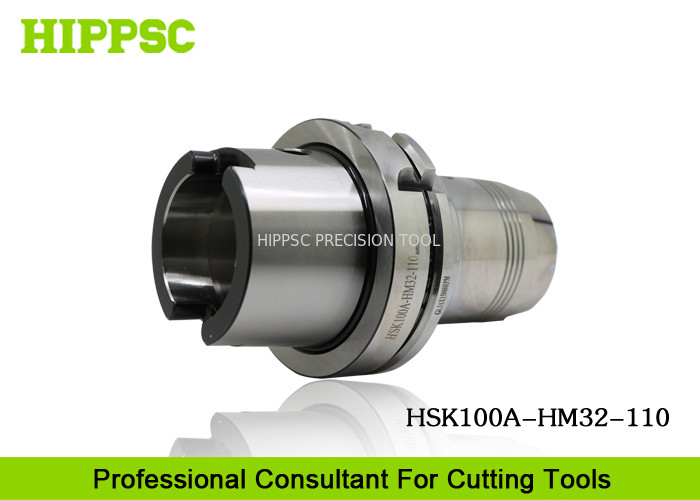

Ⅲ. Product Show
Product List
| Model Number | D | D1 | C | D4 | L | L2max | L2min | L4 | Collet | Spanner | G |
| HSK63A-HM6-70 | 6 | 25 | 28 | 50 | 70 | 37.5 | 27.5 | 44 | - | T4 | M5X0.8 |
| HSK63A-HM8-70 | 8 | 27 | 30 | 50 | 70 | 37.5 | 27.5 | 44 | - | T4 | M6X1.0 |
| HSK63A-HM10-80 | 10 | 29 | 32 | 50 | 80 | 42.5 | 32.5 | 54 | - | T4 | M8X1.0 |
| HSK63A-HM12-85 | 12 | 31 | 34 | 50 | 85 | 47.5 | 37.5 | 59 | OHM12 | T4 | M8X1.0 |
| HSK63A-HM14-90 | 14 | 33 | 36 | 50 | 85 | 47.5 | 37.5 | 64 | - | T4 | M8X1.0 |
| HSK63A-HM16-90 | 16 | 35 | 38 | 50 | 90 | 52.5 | 42.5 | 64 | - | T4 | M8X1.0 |
| HSK63A-HM18-90 | 18 | 38 | 41 | 50 | 90 | 52.5 | 42.5 | 64 | - | T4 | M8X1.0 |
| HSK63A-HM20-90 | 20 | 40 | 43 | 50 | 90 | 52.5 | 42.5 | 64 | OHM20 | T4 | M10X1.0 |
| HSK63A-HM25-120 | 25 | 53 | 57 | 63 | 120 | 57 | 47 | 94 | - | T5 | M16X1.0 |
| HSK63A-HM32-125 | 32 | 60 | 64 | 75 | 125 | 61 | 51 | 99 | OHM32 | T5 | M16X1.0 |
| HSK63A-HM12-95 | 12 | 31 | 34 | 5 | 95 | 47.5 | 37.5 | 66 | OHM12 | T4 | M8X1.0 |
| HSK63A-HM20-105 | 20 | 40 | 43 | 50 | 105 | 52.5 | 42.5 | 76 | OHM20 | T4 | M10X1.0 |
| HSK63A-HM25-110 | 25 | 53 | 57 | 63 | 110 | 61 | 51 | 81 | - | T5 | M16X1.0 |
| HSK63A-HM32-110 | 32 | 60 | 63 | 75 | 110 | 65 | 55 | 81 | OHM32 | T5 | M16X1.0 |
