| Spindle Type: | SK-HM | Clamping: | 3~32mm |
|---|---|---|---|
| Coating: | Coating Treatment | Material: | Special Steel |
| Product Type: | Hydraulic Tool Holder | Application: | Hole Making Process And Precision Finishing |
| Highlight: | machine tool holders,boring tool holder |
||

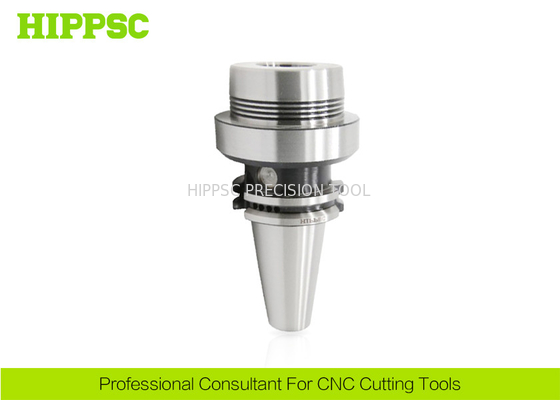

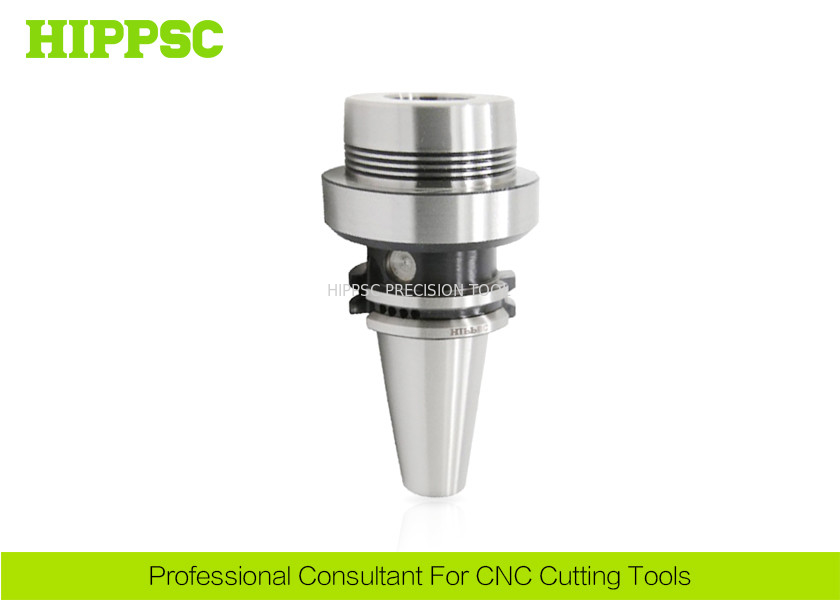

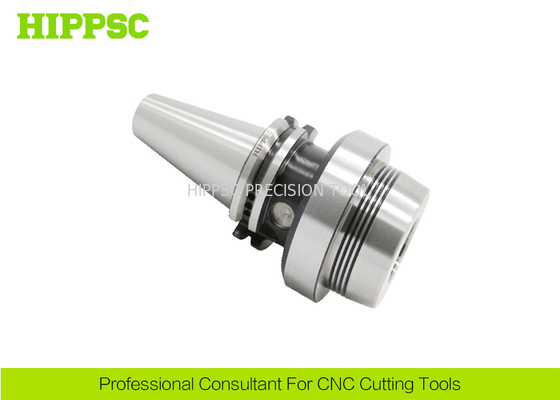

CNC Tool Holder Hydraulic Tool Holder For Automobile Industries Machining
Ⅰ. Features
Ⅱ. Technical Parametes
|
Product Name |
Hydraulic Tool Holder |
|
Spindle Type |
SK |
|
Clamping Range |
3~32mm |
|
Beat accuracy |
< 0.003 mm |
|
Processing Type |
Endmilling, Reaming, Drilling, Finishing |
|
Product Material |
Special Steel |
|
Hardness |
HRC58~60° |
Ⅲ. Product Show
Cat. No |
D1 | D2 | D3 | L1 | L2MAX | L2MIN | L3 | G | Collet | Spanner |
| SK40-HM6-80.5 | 6 | 28 | 50 | 80.5 | 37.5 | 27.5 | 44 | M5*0.8 | - | T4 |
| SK40-HM8-80.5 | 8 | 30 | 50 | 80.5 | 37.5 | 27.5 | 44 | M6*1 | -- | |
| SK40-HM10-80.5 | 10 | 32 | 50 | 80.5 | 42.5 | 32.5 | 44 | M8*1 | -- | |
| SK40-HM12-80.5 | 12 | 34 | 50 | 80.5 | 47.5 | 37.5 | 44 | M8*1 | HM12/OHM12 | |
| SK40-HM14-80.5 | 14 | 36 | 50 | 80.5 | 47.5 | 37.5 | 44 | M10*1 | -- | |
| SK40-HM16-80.5 | 16 | 38 | 50 | 80.5 | 52.5 | 42.5 | 48 | M10*1 | -- | |
| SK40-HM18-80.5 | 18 | 41 | 50 | 80.5 | 52.5 | 42.5 | 48 | M10*1 | -- | |
| SK40-HM20-80.5 | 20 | 44 | 50 | 80.5 | 52.5 | 42.5 | 48 | M10*1 | HM20/OHM20 | |
| SK40-HM25-80.5 | 25 | 65 | 66 | 80.5 | 61 | 51 | 22 | M16*1 | -- | T5 |
| SK40-HM32-80.5 | 32 | 63 | 80 | 80.5 | 65 | 55 | 26 | M16*1 | HM32/OHM32 | |
| SK50-HM6-90 | 6 | 28 | 50 | 90 | 37.5 | 27.5 | 30 | M5*0.8 | -- | T4 |
| SK50-HM8-90 | 8 | 30 | 50 | 90 | 37.5 | 27.5 | 30 | M6*1 | -- | |
| SK50-HM10-90 | 10 | 32 | 50 | 90 | 42.5 | 32.5 | 30 | M8*1 | -- | |
| SK50-HM12-90 | 12 | 34 | 50 | 90 | 47.5 | 37.5 | 30 | M8*1 | HM12/OHM12 | |
| SK50-HM14-90 | 14 | 36 | 50 | 90 | 47.5 | 37.5 | 30 | M8*1 | -- | |
| SK50-HM16-90 | 16 | 38 | 50 | 90 | 52.5 | 42.5 | 30 | M10*1 | -- | |
| SK50-HM18-90 | 18 | 41 | 50 | 90 | 52.5 | 42.5 | 30 | M10*1 | -- | |
| SK50-HM20-90 | 20 | 43 | 50 | 90 | 52.5 | 42.5 | 34 | M10*1 | HM20/OHM20 | |
| SK50-HM25-90 | 25 | 57 | -- | 90 | 52.5 | 42.5 | 85.9 | M16*1 | -- | T5 |
| SK50-HM32-115 | 32 | 63 | -- | 115 | 65 | 55 | 95.9 | M16*1 | HM32/OHM32 |
