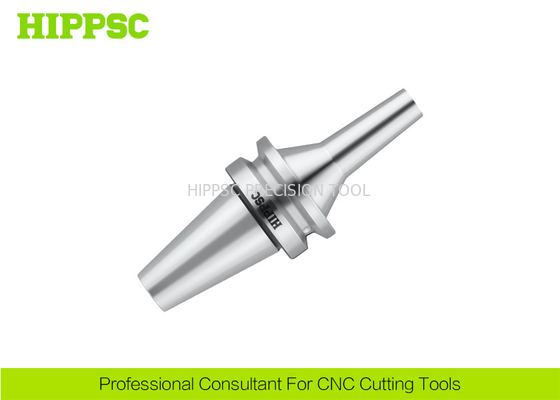

Long Tool Life Of Slim Type Collet Chuck For Automobile Industries Machining

China Long Tool Life Of Slim Type Collet Chuck For Automobile Industries Machining supplier
Long Tool Life Of Slim Type Collet Chuck For Automobile Industries Machining supplier Long Tool Life Of Slim Type Collet Chuck For Automobile Industries Machining supplier

Large Image :  Long Tool Life Of Slim Type Collet Chuck For Automobile Industries Machining

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BT30-MX06-60

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: BT-MX Runout: 0.003μm
Material: 20Crnimo Cutting Type: End Milling, Reaming, Drilling
Product Type: Slim Type Collet Chuck Application: Hole Making Process And Precision Finishing
Highlight:

cnc lathe cutting tools

,

cnc milling cutters

Long Tool Life Of Slim Type Collet Chuck For Automobile Industries Machining




Ⅰ​. Features

  1. Accurate length presetting axially or radially
  2. Suitable for finishing and semi-finishing machining.
  3. High precision, many specifications, high quality, sufficient stock
  4. Back-pull design, simple locking, fast and convenient operation
  5. Built-in turbine worm, smooth rotation, suitable for deep cavity processing
  6. Easy handling and operation - no need peripheral equipment- Change tools within seconds

Ⅱ. Technical Parametes ​


Product Name

Slim Type Collet Chuck

Spindle Type

 BT-MX

Clamping Range

3~12mm

Beat accuracy

< 0.003 mm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20CrNiMo

Hardness

HRC58~60°


Ⅲ. Product Show

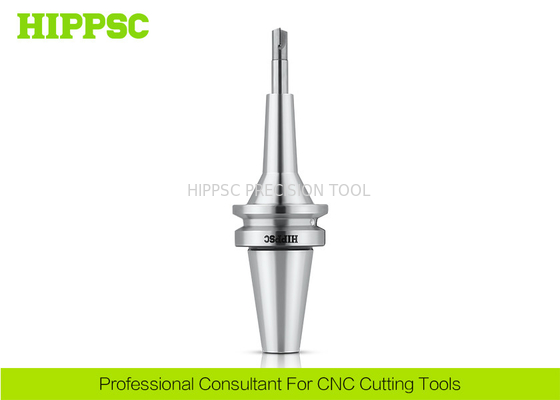

Long Tool Life Of Slim Type Collet Chuck For Automobile Industries Machining




Model No
Capacity		 d1 d2 d3 L A FIG
Screw
Torque
BT30-MX06-60 2.0-6.0 14 16 21.5 60 28 1 M5×30 5Nm
BT30-MX06-90 2.0-6.0 14 18 29 90 52 1 M5×60 5Nm
BT30-MX06-120 2.0-6.0 14 20.5 38 120 62 1 M5×90 5Nm
BT30-MX06-150 2.0-6.0 14 31 / 150 125 1 M5×120 5Nm
BT30-MX08-60 2.0-10.0 22 26 / 60 36 1 M6×30 7Nm
BT30-MX08-90 2.0-10.0 22 29 / 90 66 1 M6×60 7Nm
BT30-MX08-130 2.0-10.0 22 33 / 130 106 1 M6×100 7Nm
BT30-MX12-80 3.0-12.0 34 34 / 80 55 2 M10×30 15Nm
BT30-MX12-120 3.0-12.0 32 35 / 120 95 2 M10×60 15Nm






Model No
Capacity		 d1 d2 d3 L A FIG
Screw
Torque
BT40-MX06-90 2.0-6.0 14 18 25 90 47 1 M5×70 5Nm
BT40-MX06-120 2.0-6.0 14 19.5 35 120 63 1 M5×100 5Nm
BT40-MX06-150 2.0-6.0 14 21 48 150 79 1 M5×130 5Nm
BT40-MX06-200 2.0-6.0 14 44 / 200 170 1 M5×180 5Nm
BT40-MX08-90 2.0-10.0 22 27.5 32 90 55 1 M6×60 7Nm
BT40-MX08-120 2.0-10.0 22 29 44 120 71 1 M6×90 7Nm
BT40-MX08-150 2.0-10.0 12 31 55 150 90 1 M6×120 7Nm
BT40-MX08-200 2.0-10.0 22 36.5 53 200 141 1 M6×170 7Nm
BT40-MX12-90 3.0-12.0 34 34 / 90 58 2 M10×30 15Nm
BT40-MX12-120 3.0-12.0 34 43.5 / 120 90 2 M10×60 15Nm
BT40-MX12-150 3.0-12.0 34 46.5 / 150 119 2 M10×90 15Nm
BT40-MX12-200 3.0-12.0 34 56 / 200 171 2 M10×140 15Nm






Model No
Capacity		 d1 d2 d3 L A FIG
Screw
Torque
BT50-MX06-120 2.0-6.0 14 20 32 120 58 1 M5×120 5Nm
BT50-MX06-150 2.0-6.0 14 21 49 150 67 1 M5×150 5Nm
BT50-MX06-200 2.0-6.0 14 24.5 55 200 102 1 M5×150 5Nm
BT50-MX06-250 2.0-6.0 14 49 / 250 202 1 M5×200 5Nm
BT50-MX06-300 2.0-6.0 14 59 / 300 256 1 M5×250 5Nm
BT50-MX08-120 2.0-10.0 22 29 36 120 67 1 M6×120 7Nm
BT50-MX08-150 2.0-10.0 22 30 52 150 78 1 M6×150 7Nm
BT50-MX08-200 2.0-10.0 22 33 69 200 102 1 M6×200 7Nm
BT50-MX08-250 2.0-10.0 22 57 / 250 202 1 M6×250 7Nm
BT50-MX08-300 2.0-10.0 22 66 / 300 252 1 M6×300 7Nm
BT50-MX12-120 3.0-12.0 34 34 / 120 78 2 M10×90 15Nm
BT50-MX12-150 3.0-12.0 34 45 / 150 105 2 M10×120 15Nm
BT50-MX12-200 3.0-12.0 34 50 / 200 155 2 M10×170 15Nm
BT50-MX12-250 3.0-12.0 34 55 / 250 202 2 M10×220 15Nm
BT50-MX12-300 3.0-12.0 34 60 / 300 252 2 M10×270 15Nm





Ⅳ. Products Overview

  1. Other standard accessories.
  2. All kinds of wrenches/spanners.
  3. CNC Indexable Cutting Inserts.
  4. B40 Economical Hydraulic Tool holder.
  5. Hydro Expansion Tool holder of BT/SK/HSK.
  6. We offer EOM/ODM service to every customer.
  7. All Standard Collets-ER/SK/C Power type/Slim straight shank.
  8. Auxiliary equipment-Arbor tester, tool lock fixture, taper wiper and edge sensor maching.
Ⅴ​. Flexible Shipment Ways​

1.
By Sea.
By Air.
By Train/Truck.

2.

TNT.

EMS.

DHL.

UPS.

FedEx.



3.

Custom decide.


Ⅵ. Packing

Basic:
PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.



Custom made available.
Tell us what kinds of packing material and design you want, we can

do as your requirements.


Ⅶ. Warehouse.

  1. Strict and Careful Inspection Before Delivering Goods to Our customers .
  2. Use Gauges For Examing Accuracy and Technical Factors.
  3. Super less error on delivering Goods and Items of Order.

Long Tool Life Of Slim Type Collet Chuck For Automobile Industries Machining


Ⅷ. Warranty

  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • First Grade Service, Considerate and Sincere.
