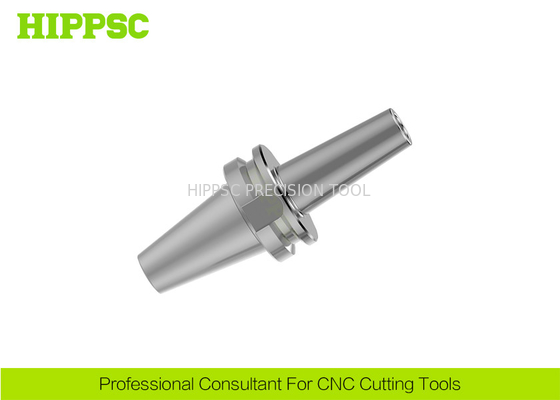

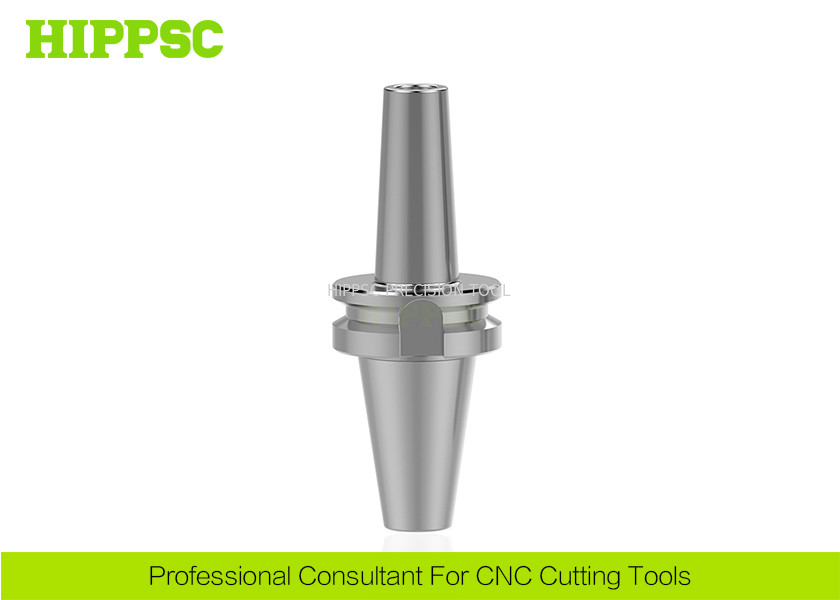

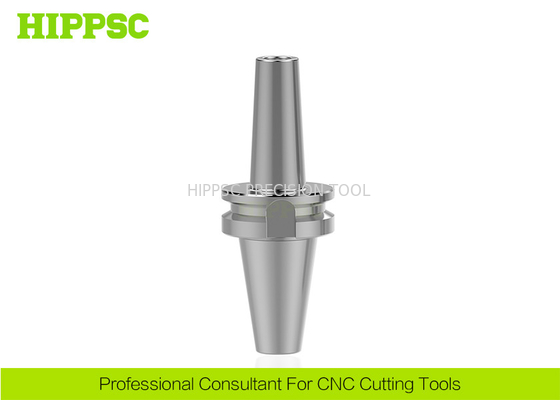

Indexable Milling Tools BT DM Base Handle For Electronics Automotive
Ⅰ. Features And Advantages
1 Good for finish machining.
2. Running accuracy ≤ 0.003mm.
3. It can go down to very deep place.
4. Modular design suitable for deep cavity processing
5. 450nm moment of force, improve rigidity and accuracy
6. Widely used in die, auto parts, aerospace and other industries
Ⅱ. Technical Parametes
|
Product Name |
DM Base Handle |
|
Spindle Type |
BT |
|
Chucking Range |
DM10K~DM20K |
|
Runout |
0.003 μm |
|
Processing Type |
Milling, Face mill, Finishing machining, Hole making. |
|
Product Material |
20Crnimo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Standard Items
Spanner and Collet are not included
Cat.No |
L1 | L2 | D1 | D2 | M | a |
| BT30-DM10K-50-A3 | 50 | 28 | 24 | 26.93 | M10 | 3︒ |
| BT40-DM10K-40-A3 | 40 | 13 | 24 | 25.36 | M10 | 3︒ |
| BT40-DM10K-77-A3 | 77 | 50 | 24 | 29.24 | M10 | 3︒ |
| BT40-DM10K-100-A3 | 100 | 73 | 24 | 31.65 | M10 | 3︒ |
| BT40-DM20K-40-A3 | 40 | 13 | 40 | 41.36 | M20 | 3︒ |
| BT40-DM20K-77-A3 | 77 | 50 | 40 | 45.24 | M20 | 3︒ |
| BT40-DM20K-100-A3 | 100 | 73 | 40 | 47.65 | M20 | 3︒ |
| BT40-DM20K-150-A3 | 150 | 123 | 40 | 52.89 | M20 | 3︒ |
| BT50-DM10K-88-A3 | 88 | 50 | 24 | 29.24 | M10 | 3︒ |
| BT50-DM10K-150-A3 | 150 | 112 | 24 | 35.74 | M10 | 3︒ |
| BT50-DM20K-88-A3 | 88 | 50 | 40 | 45.24 | M20 | 3︒ |
| BT50-DM20K-150-A3 | 150 | 112 | 40 | 51.74 | M20 | 3︒ |
| BT50-DM20K-200-A3 | 200 | 162 | 40 | 56.98 | M20 | 3︒ |
| BT50-DM20K-250-A3 | 250 | 212 | 40 | 62.22 | M20 | 3︒ |
Cat.No |
L1 | L2 | D1 | D2 | M | a |
| BT30-DM10K-50-A5 | 50 | 28 | 24 | 28.9 | M10 | 5︒ |
| BT40-DM10K-40-A5 | 40 | 13 | 24 | 26.27 | M10 | 5︒ |
| BT40-DM10K-77-A5 | 77 | 50 | 24 | 32.75 | M10 | 5︒ |
| BT40-DM10K-100-A5 | 100 | 73 | 24 | 36.77 | M10 | 5︒ |
| BT40-DM20K-40-A5 | 40 | 13 | 40 | 42.27 | M20 | 5︒ |
| BT40-DM20K-77-A5 | 77 | 50 | 40 | 48.75 | M20 | 5︒ |
| BT40-DM20K-100-A5 | 100 | 73 | 40 | 52.77 | M20 | 5︒ |
| BT50-DM10K-88-A5 | 88 | 50 | 24 | 32.75 | M10 | 5︒ |
| BT50-DM10K-150-A5 | 150 | 112 | 24 | 43.6 | M10 | 5︒ |
| BT50-DM20K-88-A5 | 88 | 50 | 40 | 48.75 | M20 | 5︒ |
| BT50-DM20K-150-A5 | 150 | 112 | 40 | 59.6 | M20 | 5︒ |
| BT50-DM20K-200-A5 | 200 | 162 | 40 | 68.35 | M20 | 5︒ |
