Product Details:
Payment & Shipping Terms:
|
| OEM/ODM: | Yes | Bore Diameter: | DM10K~DM20K |
|---|---|---|---|
| Spindle Type: | DM-GER | Material: | 20Crnimo |
| Product Type: | DM Base Holder | Cutting Type: | Turing, Milling, Boring, Drilling |
| Highlight: | milling machine cutting tools,cnc milling cutters |
||

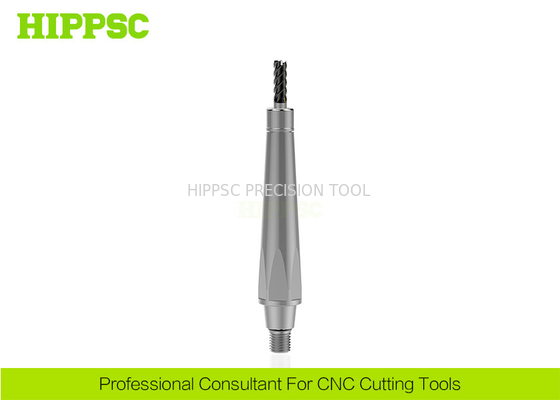

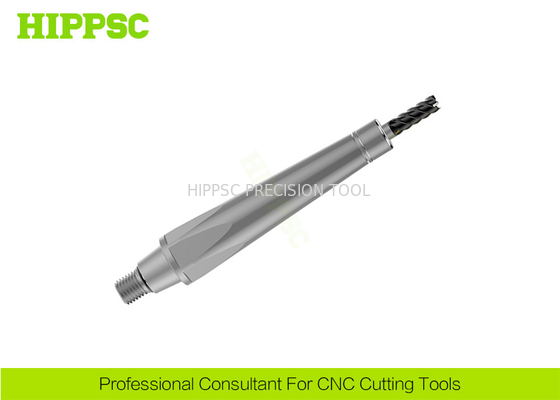

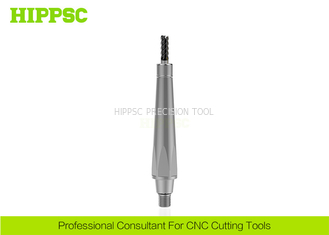

Material 20Crnimo Metal Lathe Cutting Tools DM GER High Accuracy
Ⅰ. Features And Advantages
1. 450 nm moment of force.
2. Good for finish machining
3. Beating accuracy ≤ 0.003mm.
4. Rapid operation and tooling changing.
5. Endmilling, Drilling and Reaming Working.
6. High gripping force, prevents tools from loosing.
Ⅱ. Technical Parametes
|
Product Name |
DM Base Holder |
|
Spindle Type |
DM-GER |
|
Clamping Diameter |
DM10K~DM20K |
|
Run-Out |
0.005mm |
|
Processing Type |
Endmilling, Face mill, Finishing, Drilling |
|
Product Material |
20Crnimo |
Ⅲ. Product Introduction
Standard Items
Cat.No |
Chucking Dia | D1 | D2 | L1 | L2 | L3 | L4 | a | M1 | Nut | Spanner | |
| DM10K-GER11MINI-100-A3 | 2-7 | 16.5 | 24 | 100 | 90 | 10 | 17 | 3.05︒ | M10 | 22 | ER11 | GH16 |
| DM20K-GER11MINI-240-A3 | 2-10 | 16.5 | 40 | 240 | 225 | 15 | 17 | 3.02︒ | M20 | 36 | ER11 | GH16 |
| DM20K-GER16MINI-180-A3 | 2-10 | 25.5 | 40 | 180 | 165 | 15 | 21.5 | 3.00︒ | M20 | 36 | ER16 | GH25 |
| DM10K-GER11MINI-75-A5 | 2-7 | 16.5 | 24 | 75 | 65 | 10 | 17 | 4.72︒ | M10 | 22 | ER11 | GH16 |
| DM20K-GER11MINI-160-A5 | 2-10 | 16.5 | 40 | 160 | 145 | 15 | 17 | 4.94︒ | M20 | 36 | ER11 | GH16 |
| DM20K-GER16MINI-120-A5 | 2-10 | 25.5 | 40 | 120 | 105 | 15 | 21.5 | 5.17︒ | M20 | 36 | ER16 | GH25 |
Ⅳ. Overview for HIPPSC Products
1. Mirror Finishing Tool Holders.
2. Morse Taper/Tapering Tool Holders.
3. Indexable PCBN/PCD Blade/Cutters/Inserts.
4. Torque/ Round/Circle Spanners/Wrenches/Keys.
5. Face Milling Adapters/Cutter And Inserts/Blades.
6. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
7. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
8. Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. Packing
PE Bag. Slushing oil.
Plastic Box. Adhesive Tape.
Carton Box. Packing Belt.
Ⅶ. Warehouse
1. Quick response and On-time dispatchment, Fast Lead time.
2. Products Must be Inspected Several Times Before Sending To Customer.
3. High Standard Equipments and Gauges For Examing Technical Parameters.
Ⅷ. Manufacturing and Sales Service
1. Professional Equipments, Special Technology, Experienced Workers.
2. Supplying OEM&ODM , Custom Made, Professional suggestion and Consultation.
3. One Station Service For CNC Cutting Tools Using.
