20Crnimol Material CNC Cutting Tools Shrink Fit Chuck With Good Coating of DM-SR

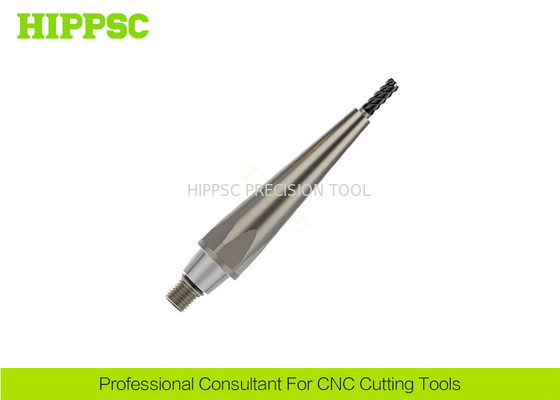

Large Image : 20Crnimol Material CNC Cutting Tools Shrink Fit Chuck With Good Coating of DM-SR

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	DM10K-SRS04-140-A3

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	Within 30 days
Payment Terms:	T/T,
Supply Ability:	3000 pcs Per Month

Contact Now

Detailed Product Description

Material:	20Crnimo	Runout:	<0.003mm
OEM:	Available	Appearance:	Coating Treatment
Product Type:	DM-SR Standard Shrink Fit Rod	Application:	Maching Of Mould, Electronics, Automotive
Highlight:	milling machine cutting tools , cnc milling cutters

20Crnimol Material CNC Cutting Tools Shrink Fit Chuck With Good Coating of DM-SR

Ⅰ. Features

Modular Design
Suitable for deep cavity processing
Routine drawing angle 3 degree, 5 degree, etc.
Widely used in die, auto parts, aerospace and other industries
Thermal expansion clamping, suitable for clamping milling cutter bit tapping, etc. The combined length can reach 450 MM.
High precision, many specifications, high quality, sufficient stockThreaded cutter head and the tungsten steel cutting tool are both suitable.

Ⅱ. Technical Parametes

Product Name	DM-SR Standard Shrink Fit Rod
Spindle Type	DM-SR
Clamping Range	4~16mm
Runout	0.003mm
Machining Type	Milling and drilling
Product Material	20Crnimo
Hardness	HRC58~60°
Taper Standard	AT3

Ⅲ. Product Show

20Crnimol Material CNC Cutting Tools Shrink Fit Chuck With Good Coating of DM-SR

Available Standard Items

Cat.No	D1	D2	D3	D4	L1	L2	L3	L4	a	M1	SW
DM10K-SRS04-140-A3	4	10	3	24	12	20	140	10	3.08°	M10	22
DM10K-SRS06-125-A3	6	12	3	24	18	36	125	10	2.99°	M10	22
DM10K-SRS08-105-A3	8	14	3	24	24	36	105	10	3.01°	M10	22
DM10K-SRS04-90-A5	4	10	3	24	12	20	90	10	5.00°	M10	22
DM10K-SRS06-90-A5	6	12	3	24	18	36	90	10	4.29°	M10	22
DM10K-SRS08-90-A5	8	14	3	24	24	36	90	10	3.58°	M10	22
DM10K-SRS10-90-A3	10	16	5	24	30	42	90	10	2.86°	M10	22
DM20K-SRS10-245-A3	10	16	5	40	30	42	245	15	2.99°	M20	36
DM20K-SR12-205-A3	12	20	5	40	30	47	205	15	3.01°	M20	36
DM20K-SR16-150-A3	16	26	5	40	32	50	150	15	2.97°	M20	36
DM20K-SRS04-185-A5	4	10	5	40	12	20	185	15	5.04°	M20	36
DM20K-SRS06-175-A5	6	12	5	40	18	36	175	15	5.00°	M20	36
DM20K-SRS08-165-A5	8	14	5	40	24	36	165	15	4.95°	M20	36
DM20K-SRS10-155-A5	10	16	5	40	30	42	155	15	4.90°	M20	36
DM20K-SR12-130-A5	12	20	5	40	30	47	130	15	4.97°	M20	36
DM20K-SR16-95-A5	16	26	5	40	32	50	95	15	5.00°	M20	36

Ⅳ. Products Overview

BT40 Shrink Fit Chuck
Hydraulic Expansion Chucks.
Torque/Round/Circle Spanner Wrenche/Keys.
Edge finder/Tool Holder Tightening Fixture/Table.
Threaded/Screw-on/Thread Screw Tool Holders.
Shrink-Fit/Heat Shrinking/Heat Expansion Toolholder.
Back Lock/Side Lock and Mirror Finishing Toolholders.
ER/GER/SK/GER/Hydraulic/Pull type/Torque tap Collet.

Ⅴ. Transportation

20Crnimol Material CNC Cutting Tools Shrink Fit Chuck With Good Coating of DM-SR

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Fast Delivery

Arrange Delivery Within 2 days at soonest after orders are received.
Strict and Careful Inspection Before Delivering Goods to Our customers .
We Use Advanced Instruments To Exam Accuracy And Technical Data.
For all standard items, there will be always enough stock for in-time delivery. For some
urgent order, we will do our best to achieve it.

Ⅷ. Warranty

High Precision Advanced Equipments and Technology.
Custom Made Service, Professional suggestions.
Best After Sales Service.
