High Accurancy DM Base Holder Metal Cutting Tools For Deep Hole Process

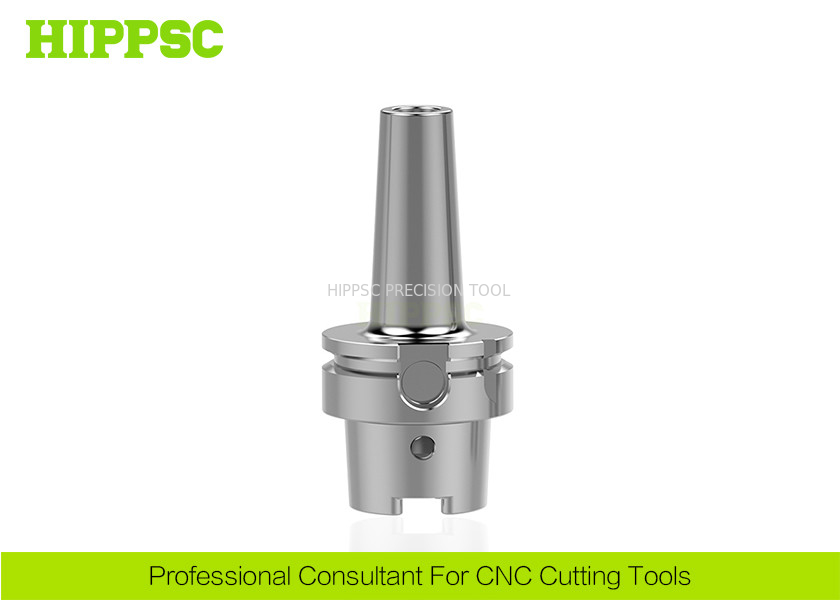

Large Image : High Accurancy DM Base Holder Metal Cutting Tools For Deep Hole Process

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	HSK63A-DM10K-76-A3

Payment & Shipping Terms:

Minimum Order Quantity:	1-5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Taper:	1:10	Spindle Type:	HSK-DM
Clamp Diameter:	DM10K~DM20K	Color:	Siliver White
Usage:	Suitable For Hole Processing And Milling	Feature:	The Combined Length Can Reach 450 MM
Highlight:	cnc lathe cutting tools , cnc milling cutters

High Accurancy DM Tool Holder HSK - DM For Deep Hole Process

Ⅰ. Features And Advantages

High regidity and stability.
Runout <0.003mm at 4X D.
Durable, increase tools life and save cost.
The toolholder clamp tools directly without collets or nuts.
High repeat accuracy, 2000 times more clamping tools.
High surface quality, finishing machinng.

Ⅱ. Technical Parametes

Product Name	DM Base Holder
Spindle Type	HSK-DM
Clamping Range	DM10K~DM20K
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Introduction

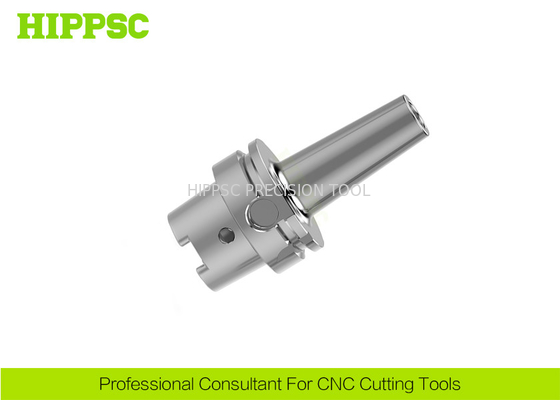

High Accurancy DM Base Holder Metal Cutting Tools For Deep Hole Process

Standard Items

Cat.No	L1	L2	D1	D2	M	a
HSK63A-DM10K-76-A3	76	50	24	29.24	M10	3︒
HSK63A-DM10K-100-A3	100	74	24	31.76	M10	3︒
HSK63A-DM20K-76-A3	76	50	40	45.24	M20	3︒
HSK63A-DM20K-100-A3	100	74	40	47.76	M20	3︒
HSK63A-DM20K-150-A3	150	124	40	53	M20	3︒
HSK100A-DM10K-79-A3	79	50	24	29.24	M10	3︒
HSK100A-DM10K-150-A3	150	121	24	36.68	M10	3︒
HSK100A-DM20K-79-A3	79	50	40	45.24	M20	3︒
HSK100A-DM20K-150-A3	150	121	40	52.68	M20	3︒
HSK100A-DM20K-200-A3	200	171	40	57.92	M20	3︒
HSK100A-DM20K-250-A3	250	221	40	63.16	M20	3︒

Cat.No	L1	L2	D1	D2	M	a
HSK63A-DM10K-76-A5	76	50	24	32.75	M10	5︒
HSK63A-DM10K-100-A5	100	74	24	36.95	M10	5︒
HSK63A-DM20K-76-A5	76	50	40	48.75	M20	5︒
HSK63A-DM20K-100-A5	100	74	40	52.95	M20	5︒
HSK100A-DM10K-79-A5	79	50	24	32.75	M10	5︒
HSK100A-DM10K-150-A5	150	121	24	45.17	M10	5︒
HSK100A-DM20K-79-A5	79	50	40	48.75	M20	5︒
HSK100A-DM20K-150-A5	150	121	40	61.17	M20	5︒
HSK100A-DM20K-200-A5	200	171	40	69.93	M20	5

Ⅳ. Overview for HIPPSC Products

Back Lock/Side Lock Tool Holders.
Morse Taper/Tapering Tool Holders/Shanks.
Torque Floating Tap/Tapping Chuck and Collet.
Threaded/Screw-on/Thread Screw Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

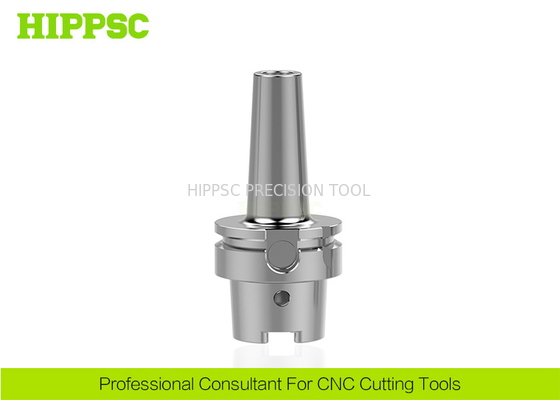

High Accurancy DM Base Holder Metal Cutting Tools For Deep Hole Process

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
