DM10K~DM20K CNC Cutting Tools High Precision Dream Base Holder SK-DM For Milling

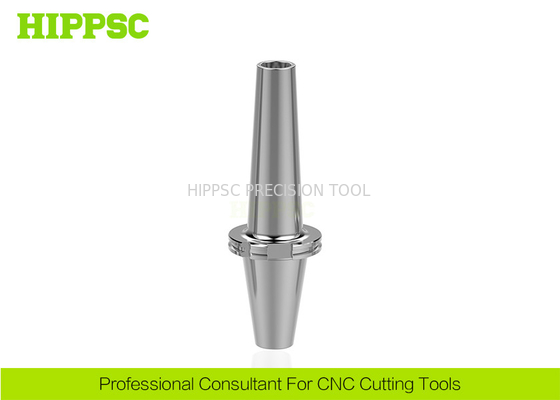

Large Image : DM10K~DM20K CNC Cutting Tools High Precision Dream Base Holder SK-DM For Milling

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	SK40-DM10K-40-A3

Payment & Shipping Terms:

Minimum Order Quantity:	1-5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	SK-DM	Taper:	7:24
Inventory:	In Stock	Product Type:	DM Base Holder
Clamp Diameter:	DM10K~DM20K	Machining:	Finishing Maching And Deep Hole Processing
Highlight:	milling machine cutting tools , cnc lathe cutting tools

DM10K~DM20K CNC Cutting Tools High Precision Dream Base Holder SK-DM For Milling

Ⅰ. Features And Advantages

1. Modular Design
2. Suitable for deep cavity processing
3. Routine drawing angle 3 degree, 5 degree, etc

4. Suitable for clamping milling cutter bit tapping, etc.
5. Widely used in die, auto parts, aerospace and other industries
6. High precision, many specifications, high quality, sufficient stock

Ⅱ. Technical Parametes

Product Name	DM Base Holder
Spindle Type	SK-DM
Clamping Range	DM10K~DM20K
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Introduction

DM10K~DM20K CNC Cutting Tools High Precision Dream Base Holder SK-DM For Milling

Standard Items

Cat.No	L1	L2	D1	D2	M	a
SK40-DM10K-40-A3	40	21	24	26.19	M10	3︒
SK40-DM10K-69-A3	69	50	24	29.23	M10	3︒
SK40-DM10K-100-A3	100	81	24	32.49	M10	3︒
SK40-DM20K-40-A3	40	21	40	42.19	M20	3︒
SK40-DM20K-69-A3	69	50	40	45.23	M20	3︒
SK40-DM20K-100-A3	100	81	40	48.49	M20	3︒
SK40-DM20K-150-A3	150	130.9	40	53.72	M20	3︒
SK50-DM10K-69-A3	69	50	24	29.23	M10	3︒
SK50-DM10K-150-A3	150	131	24	37.72	M10	3︒
SK50-DM20K-69-A3	69	50	40	45.23	M20	3︒
SK50-DM20K-150-A3	150	131	40	53.73	M20	3︒
SK50-DM20K-200-A3	200	180.9	40	58.96	M20	3︒
SK50-DM20K-250-A3	250	230.9	40	64.20	M20	3︒

Cat.No	L1	L2	D1	D2	M	a
SK40-DM10K-40-A5	40	21	24	27.66	M10	5︒
SK40-DM10K-69-A5	69	50	24	32.73	M10	5︒
SK40-DM10K-100-A5	100	81	24	38.16	M10	5︒
SK40-DM20K-40-A5	40	21	40	43.66	M20	5︒
SK40-DM20K-69-A5	69	50	40	48.73	M20	5︒
SK40-DM20K-100-A5	100	81	40	54.16	M20	5︒
SK50-DM10K-69-A5	69	50	24	32.73	M10	5︒
SK50-DM10K-150-A5	150	131	24	46.9	M10	5︒
SK50-DM20K-69-A5	69	50	40	48.73	M20	5︒
SK50-DM20K-150-A5	150	131	40	62.9	M20	5︒
SK50-DM20K-200-A5	200	180.9	40	71.65	M20	5︒

Ⅳ. Overview for HIPPSC Products

Face Milling Adapters.
Back Lock/Side Lock Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Threaded/Screw-on/Thread Screw Tool Holders.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
DM10K~DM20K CNC Cutting Tools High Precision Dream Base Holder SK-DM For Milling

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
