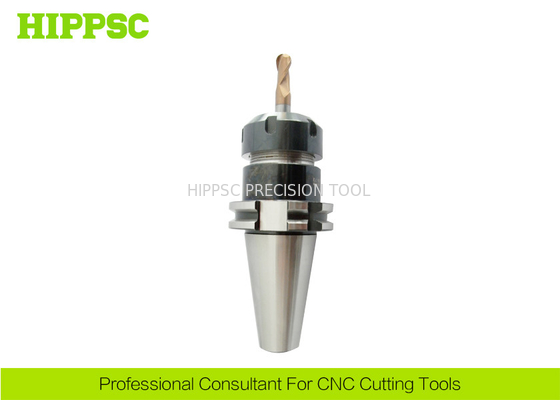

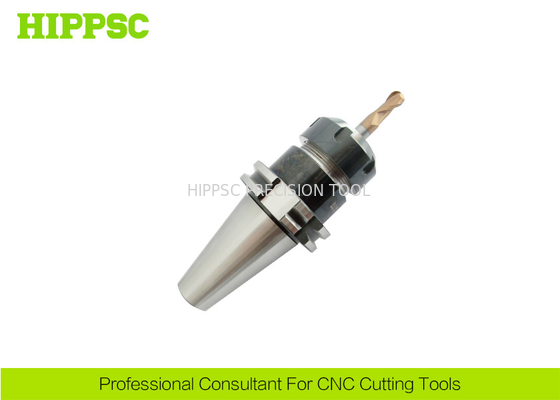

Metal Cutting Tools CNC Tool Holder CNC Machine SK For Milling and Drilling
Ⅰ. Features And Advantages
1. Non eccentric nut
2. High precision, various specifications
3. High surface quality, finishing machinng.
4. Rigidity is very high, cutting speed is fast.
5. Corrected by non-eccentricity, and preset dynamic balance
6. Little weight, machining quickly and trippingly for die, electronic parts
Ⅱ. Technical Parametes
|
Product Name |
ER Collet Chuck |
|
Spindle Type |
SK |
|
Clamping Range |
1mm~25mm |
|
Run-Out |
0.003mm |
|
Processing Type |
Endmilling, Face mill, Finishing, Drilling |
|
Product Material |
20Crnimo |
|
Hardness |
HRC48~52° |
Ⅲ. Product Introduction
Standard Items
Model No |
Chucking Dia | D1 | D2 | L1 | L2 | Clamp | Spanner | Nut |
| SK40-ER16-70 | 3.0-10.0 | 28 | 28 | 70 | 50.9 | ER16 | HS-ER16A | HN-ER16A |
| SK40-ER16-100 | 3.0-10.0 | 28 | 28 | 100 | 80.9 | ER16 | HS-ER16A | HN-ER16A |
| SK40-ER16-150 | 3.0-10.0 | 28 | 28 | 150 | 130.9 | ER16 | HS-ER16A | HN-ER16A |
| SK40-ER20-70 | 3.0-13.0 | 34 | 34 | 70 | 50.9 | ER20 | HS-ER20A | HN-ER20A |
| SK40-ER20-100 | 3.0-13.0 | 34 | 34 | 100 | 80.9 | ER20 | HS-ER20A | HN-ER20A |
| SK40-ER20-150 | 3.0-13.0 | 34 | 34 | 150 | 130.9 | ER20 | HS-ER20A | HN-ER20A |
| SK40-ER25-70 | 3.0-16.0 | 40 | 40 | 70 | 50.9 | ER25 | HS-ER25UM | HN-ER25UM |
| SK40-ER25-100 | 3.0-16.0 | 40 | 40 | 100 | 80.9 | ER25 | HS-ER25UM | HN-ER25UM |
| SK40-ER25-150 | 3.0-16.0 | 40 | 40 | 150 | 130.9 | ER25 | HS-ER25UM | HN-ER25UM |
| SK40-ER32-70 | 3.0-20.0 | 48 | 48 | 70 | 50.9 | ER32 | HS-ER32UM | HN-ER32UM |
| SK40-ER32-100 | 3.0-20.0 | 48 | 48 | 100 | 80.9 | ER32 | HS-ER32UM | HN-ER32UM |
| SK40-ER32-150 | 3.0-20.0 | 48 | 48 | 150 | 130.9 | ER32 | HS-ER32UM | HN-ER32UM |
| SK40-ER40-100 | 6.0-26.0 | 58 | 58 | 100 | 80.9 | ER40 | HS-ER40UM | HN-ER40UM |
| SK40-ER40-150 | 6.0-26.0 | 58 | 58 | 150 | 130.9 | ER40 | HS-ER40UM | HN-ER40UM |
| SK50-ER16-100 | 3.0-10.0 | 28 | 28 | 100 | 80.9 | ER16 | HS-ER16A | HN-ER16A |
| SK50-ER16-150 | 3.0-10.0 | 28 | 28 | 150 | 130.9 | ER16 | HS-ER16A | HN-ER16A |
| SK50-ER20-100 | 3.0-13.0 | 34 | 34 | 100 | 80.9 | ER20 | HS-ER20A | HN-ER20A |
| SK50-ER20-150 | 3.0-13.0 | 34 | 34 | 150 | 130.9 | ER20 | HS-ER20A | HN-ER20A |
| SK50-ER25-100 | 3.0-16.0 | 40 | 40 | 100 | 80.9 | ER25 | HS-ER25UM | HN-ER25UM |
| SK50-ER25-150 | 3.0-16.0 | 40 | 40 | 150 | 130.9 | ER25 | HS-ER25UM | HN-ER25UM |
| SK50-ER32-100 | 3.0-20.0 | 48 | 48 | 100 | 80.9 | ER32 | HS-ER32UM | HN-ER32UM |
| SK50-ER32-150 | 3.0-20.0 | 48 | 48 | 150 | 130.9 | ER32 | HS-ER32UM | HN-ER32UM |
| SK50-ER40-100 | 6.0-26.0 | 58 | 58 | 100 | 80.9 | ER40 | HS-ER40UM | HN-ER40UM |
| SK50-ER40-150 | 6.0-26.0 | 58 | 58 | 150 | 130.9 | ER40 | HS-ER40UM | HN-ER40UM |
Ⅳ. Overview for HIPPSC Products
1. Mirror Finishing Tool Holders.
2. Morse Taper/Tapering Tool Holders.
3. Torque/ Round/Circle Spanners/Wrenches/Keys.
4. Edge finder/Tool Holder Tightening Fixture/Table.
5. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
6. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
7. Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.
8. Enough Types of BT/BBT/SK/CAT/HSK/ISO/NT/NBT To Meet Customer's demand.
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. Packing
PE Bag. Slushing oil.
Plastic Box. Adhesive Tape.
Carton Box. Packing Belt.
Ⅶ. Warehouse
1. Quick response and On-time dispatchment, Fast Lead time.
2. Products Must be Inspected Several Times Before Sending To Customer.
3. High Standard Equipments and Gauges For Examing Technical Parameters.
Ⅷ. Manufacturing and Sales Service
1. Professional Equipments, Special Technology, Experienced Workers.
2. Supplying OEM&ODM , Custom Made, Professional suggestion and Consultation.
3. One Station Service For CNC Cutting Tools Using.
