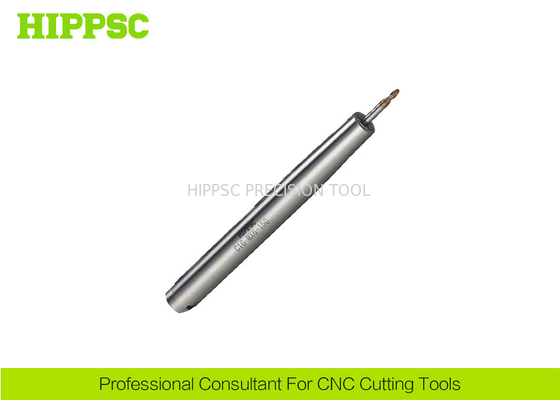

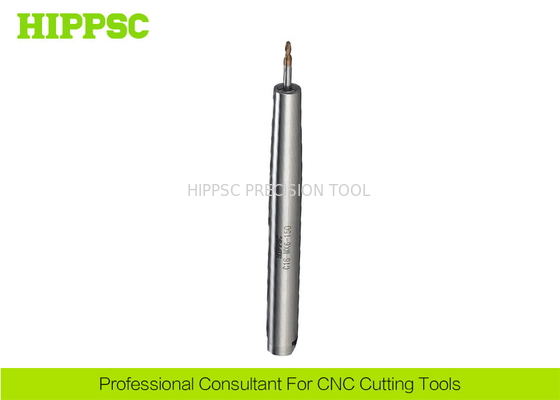

Indexable Milling Tools Slim Type Collet Chuck For Deep Hole Maching

China Indexable Milling Tools Slim Type Collet Chuck For Deep Hole Maching supplier
Indexable Milling Tools Slim Type Collet Chuck For Deep Hole Maching supplier Indexable Milling Tools Slim Type Collet Chuck For Deep Hole Maching supplier

Large Image :  Indexable Milling Tools Slim Type Collet Chuck For Deep Hole Maching

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: C10-MX06-120

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 2000pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: C-MX Runout: 0.003mm
Hardness: HRC58~60 Product Type: Slim Type Collet Chuck
Application: Precision Finishing Cutting Type: EndMilling, Reaming, Drilling
Highlight:

milling machine cutting tools

,

cnc lathe cutting tools

Indexable Milling Tools Slim Type Collet Chuck For Deep Hole Maching




Ⅰ​. Features

  1. No nut back-pull chuck design
  2. Better surface quality and runout
  3. Interference-proof, strong rigidity, high stability
  4. Back-pull design, simple locking, fast and convenient operation
  5. High precision, many specifications, high quality, sufficient stock
  6. Built-in turbine worm, smooth rotation, suitable for deep cavity processing

Ⅱ. Technical Parametes ​


Product Name

 Slim Type Collet Chuck

Spindle Type

 C

Screw hole size

M16

Beat accuracy

<3μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

 20Crnimo

Hardness

HRC58~60°
Taper tolerance AT3


Ⅲ. Product Information



Indexable Milling Tools Slim Type Collet Chuck For Deep Hole Maching




Model No		 Capacity d1 d2 L A
Screw
Torque
C10-MX06-120 2.0-6.0 10 13 120 93 M5×95 5Nm
C10-MX06-150 2.0-6.0 10 13 150 28 M5×125 5Nm
C12-MX06-120 2.0-6.0 12 13 120 62 M5×80 5Nm
C12-MX06-150 2.0-6.0 12 13 150 125 M5×110 5Nm
C12-MX06-200 2.0-6.0 12 13 200 36 M5×160 5Nm
C16-MX06-150 2.0-6.0 16 13 150 66 M5×100 5Nm
C16-MX06-200 2.0-6.0 16 13 200 106 M5×150 5Nm
C16-MX06-250 2.0-6.0 16 13 250 55 M5×200 5Nm
C16-MX08-150 2.0-10.0 16 20 150 58 M6×90 7Nm
C20-MX06-150 2.0-6.0 20 13 150 47 M5×100 5Nm
C20-MX06-200 2.0-6.0 20 13 200 63 M5×150 5Nm
C20-MX08-150 2.0-10.0 20 20 150 79 M6×90 7Nm
C20-MX08-200 2.0-10.0 20 20 200 170 M6×140 7Nm
C20-MX08-250 2.0-10.0 20 20 250 55 M6×190 7Nm
C25-MX06-150 2.0-6.0 25 13 150 71 M5×100 5Nm
C25-MX08-150 2.0-10.0 25 20 150 90 M6×90 7Nm
C25-MX08-200 2.0-10.0 25 20 200 141 M6×140 7Nm
C32-MX12-200 3.0-12.0 32 32 200 58 M10×120 15Nm
C32-MX12-250 3.0-12.0 32 32 250 90 M10×170 15Nm
C32-MX12-300 3.0-12.0 32 32 300 119 M10×220 15Nm


Ⅳ. Products Overview

  1. CNC Indexable Cutting Tools.
  2. BT40 Threading Tool Holder.
  3. BT,BBT,SK,CAT,MAT,APU,NT,NBT,ISO,ST.
  4. Hydraulic Expansion Tool holder of BT/SK/HSK.
  5. Threaded/Screw-on/Thread Screw Tool Holders.
  6. ​Edge finder/Tool Holder Tightening Fixture/Table.
  7. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  8. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
Ⅴ​. Shipment​

By Sea; By Air; By Train.


TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty

  • High Accuracy Measuring Instruments and Technology.
  • Custom Made Service of Products and Packing.
  • Customer can find any products relating to CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • We are always customers and service oriented.
