Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | BBT-DM | Balance: | Available |
|---|---|---|---|
| Clamp Range: | (3,4,5,6,7,8) Mm | Product Type: | DM Base Chuck |
| Application: | Hole Making Process And Precision Finishing | Packing: | PE Bag Inner Package. Plastic Box To Pocess Abor. |
| Highlight: | milling machine cutting tools,cnc milling cutters |
||

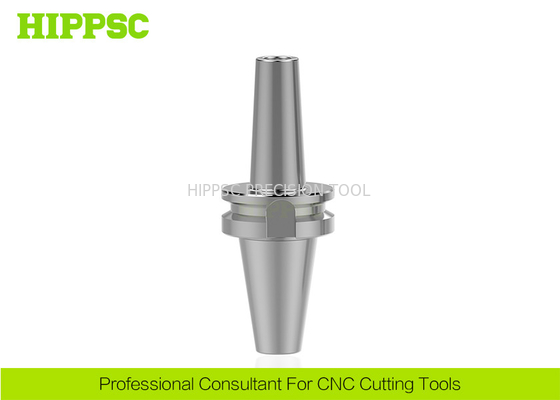

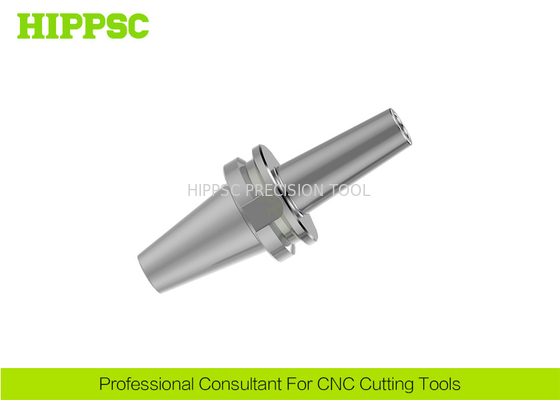

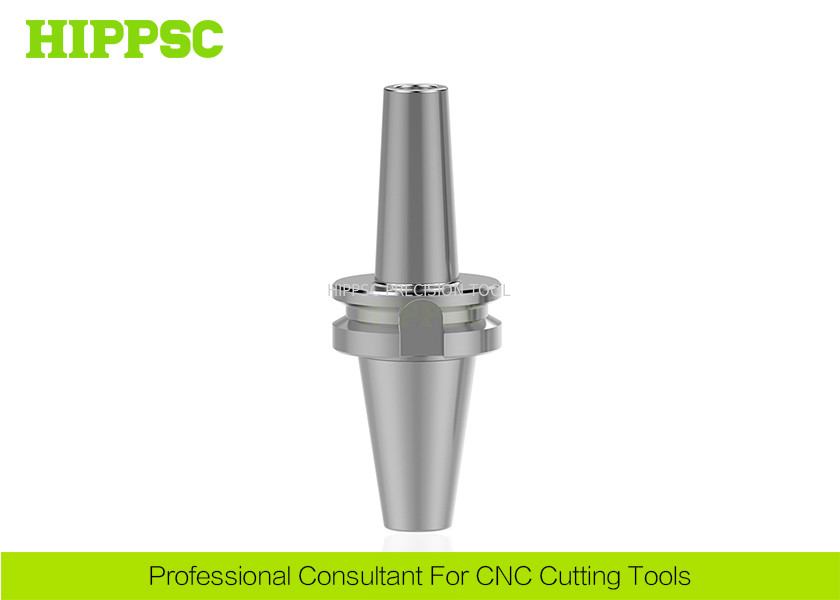

Reamer Tool DM Base Handle CNC Cutting Tools Durable For Electronics Automotive
Ⅰ. Features And Advantages
1. Modular design suitable for deep cavity processing
2. The designed drawing angle is 3 degree, 5 degree, etc.
3. Widely used in die, auto parts, aerospace and other industries
4. High precision, many specifications, high quality, sufficient stock
5. A variety of tool types can be clamped. By combining with other tool accessories, the length can reach 450 MM.
6. Through double positioning of internal thread and cone surface, stability is provided and machining vibration is reduced.
Ⅱ. Technical Parametes
|
Product Name |
DM Base Handle |
|
Spindle Type |
BBT |
|
Clamping Range |
4/6/8/10/12 mm (diameter) |
|
Runout |
0.003 μm |
|
Processing Type |
Milling, Face mill, Finishing machining, Hole making. |
|
Product Material |
20Crnimo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Cat.No |
L1 | L2 | D1 | D2 | M | a |
| BBT30-DM10K-49-A3 | 49 | 28 | 24 | 26.93 | M10 | 3︒ |
| BBT40-DM10K-40-A3 | 40 | 14 | 24 | 25.47 | M10 | 3︒ |
| BBT40-DM10K-76-A3 | 76 | 50 | 24 | 29.24 | M10 | 3︒ |
| BBT40-DM10K-100-A3 | 100 | 74 | 24 | 31.76 | M10 | 3︒ |
| BBT40-DM20K-40-A3 | 40 | 14 | 40 | 41.47 | M20 | 3︒ |
| BBT40-DM20K-76-A3 | 76 | 50 | 40 | 45.24 | M20 | 3︒ |
| BBT40-DM20K-100-A3 | 100 | 74 | 40 | 47.76 | M20 | 3︒ |
| BBT40-DM20K-150-A3 | 150 | 124 | 40 | 53 | M20 | 3︒ |
| BBT50-DM10K-88-A3 | 88 | 51.5 | 24 | 29.4 | M10 | 3︒ |
| BBT50-DM10K-150-A3 | 150 | 113.5 | 24 | 35.9 | M10 | 3︒ |
| BBT50-DM20K-88-A3 | 88 | 51.5 | 40 | 45.4 | M20 | 3︒ |
| BBT50-DM20K-150-A3 | 150 | 113.5 | 40 | 51.9 | M20 | 3︒ |
| BBT50-DM20K-200-A3 | 200 | 163.5 | 40 | 57.14 | M20 | 3︒ |
| BBT50-DM20K-250-A3 | 250 | 213.5 | 40 | 62.38 | M20 | 3︒ |
Cat.No |
L1 | L2 | D1 | D2 | M | a |
| BBT30-DM10K-49-A5 | 49 | 28 | 24 | 28.9 | M10 | 5︒ |
| BBT40-DM10K-40-A5 | 40 | 14 | 24 | 26.45 | M10 | 5︒ |
| BBT40-DM10K-76-A5 | 76 | 50 | 24 | 32.75 | M10 | 5︒ |
| BBT40-DM10K-100-A5 | 100 | 74 | 24 | 36.95 | M10 | 5︒ |
| BBT40-DM20K-40-A5 | 40 | 14 | 40 | 42.45 | M20 | 5︒ |
| BBT40-DM20K-76-A5 | 76 | 50 | 40 | 48.75 | M20 | 5︒ |
| BBT40-DM20K-100-A5 | 100 | 74 | 40 | 52.95 | M20 | 5︒ |
| BBT50-DM10K-88-A5 | 88 | 51.5 | 24 | 33.01 | M10 | 5︒ |
| BBT50-DM10K-150-A5 | 150 | 113.5 | 24 | 43.86 | M10 | 5︒ |
| BBT50-DM20K-88-A5 | 88 | 51.5 | 40 | 49.01 | M20 | 5︒ |
| BBT50-DM20K-150-A5 | 150 | 113.5 | 40 | 59.86 | M20 | 5︒ |
| BBT50-DM20K-200-A5 | 200 | 163.5 | 40 | 68.61 | M20 | 5︒ |
Ⅳ. Overview for HIPPSC Products
1. Indexable PCBN/PCD Blade/Cutters/Inserts.
2. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
3. Torque/ Round/Circle Spanners/Wrenches/Keys.
4. Edge finder/Tool Holder Tightening Fixture/Table.
5. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
6. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
7. BT30 With12mm Diameter Hydraulic Tool Holder/Arbor with L 90mm.
8. Enough Types of BT/BBT/DIN/SK/CAT/HSK/ISO/NT/NBT To Meet Customer Demand.
TNT, EMS, DHL, UPS, FedEx.
2. Customer advised
Ⅵ. Packing
With Slushing oil.
Fastened by adhesive Tape.
Packing Belt to Strap.
PE Bag Inner package.
Plastic Box to pocess abor.
Carton Box For All goods.
Ⅶ. Warehouse
1. Quick response and On-time dispatchment For Customers' Order, Within 2 days at soonest.
2. All Materials and Products Are Inspected Strictly and Carefully Before Shipping out.
