Deep Hole Machining GSK High Speed SK Collet Chuck With Coating Treatment

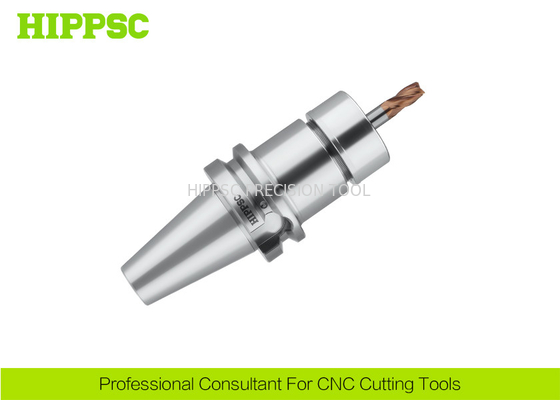

Large Image : Deep Hole Machining GSK High Speed SK Collet Chuck With Coating Treatment

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BBT30-GSK6-60

Payment & Shipping Terms:

Minimum Order Quantity:	1-5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Inventory:	In Stock	Spindle Type:	BBT-GSK
Coating:	Coating Treatment	Material:	20CrNiMo (Quality Alloy Steel)
Packing:	PE Bag. Plastic Box Carton Box.	Application:	End Mill, Finishing Maching, Metal, Metal Cutting Tools
Highlight:	cnc lathe cutting tools , cnc milling cutters

Deep Hole Machining GSK High Speed SK Collet Chuck With Coating Treatment

Ⅰ. Features And Advantages

1. Full circle windless nut
2. High regidity and stability.

3. Low noise and low wind resistance

4. High surface quality, finishing machinng.

5. Durable, increase tools life and save cost.
6. Single side 4 degree cylinder, clamp with large clamping force

Ⅱ. Technical Parametes

Product Name	GSK High Speed SK Collet Chuck
Spindle Type	BBT-GSK
Clamping Range	1~25mm
Runout	<0.003mm
Processing Type	Hole Machining and Milling
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Introduction

Deep Hole Machining GSK High Speed SK Collet Chuck With Coating Treatment

Standard Items

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Collet Puller	Spanner
BBT30-GSK6-60	2.0-6.0	19.5	20	38	60	M15.5*1.0	HN-GSK6	SK06	CX06	GH19
BBT30-GSK6-75	2.0-6.0	19.5	20	53	75	M15.5*1.0	HN-GSK6	SK06	CX06	GH19
BBT30-GSK6-90	2.0-6.0	19.5	20	68	90	M15.5*1.0	HN-GSK6	SK06	CX06	GH19
BBT30-GSK10-60	3.0-10.0	27.1	27.6	38	60	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT30-GSK10-75	3.0-10.0	27.1	27.6	53	75	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT30-GSK10-90	3.0-10.0	27.1	27.6	68	90	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT30-GSK10-120	3.0-10.0	27.1	27.6	98	120	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT30-GSK13-60	3.0-13.0	33	33.5	38	60	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT30-GSK13-75	3.0-13.0	33	33.5	53	75	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT30-GSK13-90	3.0-13.0	33	33.5	68	90	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT30-GSK13-120	3.0-13.0	33	33.5	98	120	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT30-GSK16-60	3.0-16.0	40	40.5	38	60	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT30-GSK16-75	3.0-16.0	40	40.5	53	75	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT30-GSK16-90	3.0-16.0	40	40.5	68	90	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT30-GSK16-120	3.0-16.0	40	40.5	98	120	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BBT30-GSK20-60	4.0-20.0	48	48.5	38	60	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT30-GSK20-75	4.0-20.0	48	48.5	53	75	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT30-GSK20-90	4.0-20.0	48	48.5	68	90	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT30-GSK20-120	4.0-20.0	48	48.5	98	120	M40.0*1.0	HN-GSK20	SK20	CX20	GH48

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Collet Puller	Spanner
BBT40-GSK6-75	2.0-6.0	19.5	20	48	75	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BBT40-GSK6-90	2.0-6.0	19.5	20	63	90	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BBT40-GSK6-120	2.0-6.0	19.5	20	93	120	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BBT40-GSK10-75	3.0-10.0	27.1	27.6	48	75	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT40-GSK10-90	3.0-10.0	27.1	27.6	63	90	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT40-GSK10-120	3.0-10.0	27.1	27.6	93	120	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT40-GSK10-150	3.0-10.0	27.1	27.6	123	150	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT40-GSK13-60	3.0-13.0	33	33.5	33	60	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT40-GSK13-75	3.0-13.0	33	33.5	48	75	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT40-GSK13-90	3.0-13.0	33	33.5	63	90	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT40-GSK13-120	3.0-13.0	33	33.5	93	120	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT40-GSK13-150	3.0-13.0	33	33.5	123	150	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT40-GSK16-60	3.0-16.0	40	40.5	33	60	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT40-GSK16-75	3.0-16.0	40	40.5	48	75	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT40-GSK16-90	3.0-16.0	40	40.5	63	90	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT40-GSK16-120	3.0-16.0	40	40.5	93	120	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT40-GSK16-150	3.0-16.0	40	40.5	123	150	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT40-GSK20-60	4.0-20.0	48	48.5	33	60	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT40-GSK20-75	4.0-20.0	48	48.5	48	75	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT40-GSK20-90	4.0-20.0	48	48.5	63	90	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT40-GSK20-120	4.0-20.0	48	48.5	93	120	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT40-GSK20-150	4.0-20.0	48	48.5	123	150	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT40-GSK25-90	6.0-25.0	55	55.5	63	90	M45.0*1.0	HN-GSK25	SK25	CX25	GH55
BBT40-GSK25-120	6.0-25.0	55	55.5	93	120	M45.0*1.0	HN-GSK25	SK25	CX25	GH55

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Collet Puller	Spanner
BBT50-GSK10-105	3.0-10.0	27.1	27.6	67	105	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT50-GSK10-135	3.0-10.0	27.1	27.6	97	135	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT50-GSK10-165	3.0-10.0	27.1	27.6	127	165	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BBT50-GSK13-105	3.0-13.0	33	33.5	67	105	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT50-GSK13-135	3.0-13.0	33	33.5	97	135	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT50-GSK13-165	3.0-13.0	33	33.5	127	165	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BBT50-GSK16-105	3.0-16.0	40	40.5	67	105	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT50-GSK16-135	3.0-16.0	40	40.5	97	135	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT50-GSK16-165	3.0-16.0	40	40.5	127	165	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT50-GSK16-200	3.0-16.0	40	40.5	162	200	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BBT50-GSK20-105	4.0-20.0	48	48.5	67	105	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT50-GSK20-135	4.0-20.0	48	48.5	97	135	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT50-GSK20-165	4.0-20.0	48	48.5	127	165	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT50-GSK20-200	4.0-20.0	48	48.5	162	200	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BBT50-GSK25-105	6.0-25.0	55	55.5	67	105	M45.0*1.5	HN-GSK25	SK25	CX25	GH55
BBT50-GSK25-135	6.0-25.0	55	55.5	97	135	M45.0*1.5	HN-GSK25	SK25	CX25	GH55
BBT50-GSK25-165	6.0-25.0	55	55.5	127	165	M45.0*1.5	HN-GSK25	SK25	CX25	GH55
BBT50-GSK25-200	6.0-25.0	55	55.5	162	200	M45.0*1.5	HN-GSK25	SK25	CX25	GH55

Ⅳ. Overview for HIPPSC Products

Back Lock/Side Lock Tool Holders.
Morse Taper/Tapering Tool Holders/Shanks.
Torque Floating Tap/Tapping Chuck and Collet.
Threaded/Screw-on/Thread Screw Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
Deep Hole Machining GSK High Speed SK Collet Chuck With Coating Treatment

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
