Milling Cutting Tools GSK High Speed SK Collet Chuck For Milling

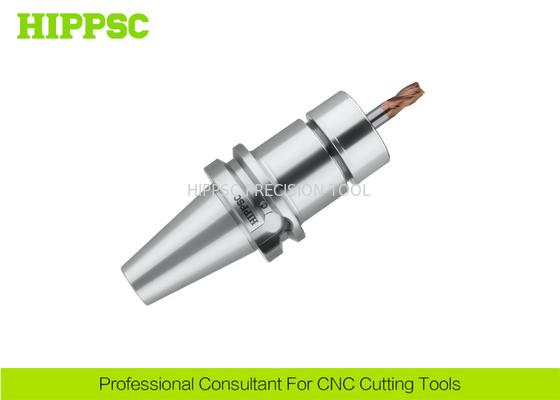

Large Image : Milling Cutting Tools GSK High Speed SK Collet Chuck For Milling

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-GSK6-60

Payment & Shipping Terms:

Minimum Order Quantity:	1-5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Taper:	7:24	Spindle Type:	BT-GSK
Hardness:	HRC58~60	Color:	Siliver White
Material:	20CrNiMo (Quality Alloy Steel)	Machining:	Finishing Maching And Deep Hole Processing
Highlight:	milling machine cutting tools , cnc lathe cutting tools

Milling Cutting Tools GSK High Speed SK Collet Chuck For Milling

Ⅰ. Features And Advantages

1. Full circle windless nut

2. High regidity and stability.

3. Low noise, low wind resistance

4. High surface quality, finishing machinng.

5. Durable, increase tools life and save cost.

6.Single side 4 degree cylinder, clamp with large clamping force

Ⅱ. Technical Parametes

Product Name	GSK High Speed SK Collet Chuck
Spindle Type	BT-GSK
Clamping Range	1~25mm
Runout	<0.003mm
Processing Type	Hole Machining and Milling
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Introduction

Milling Cutting Tools GSK High Speed SK Collet Chuck For Milling

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Collet Puller	Spanner
BT30-GSK6-60	2.0-6.0	19.5	20	38	60	M15.5*1.0	HN-GSK6	SK06	CX06	GH19
BT30-GSK6-75	2.0-6.0	19.5	20	53	75	M15.5*1.0	HN-GSK6	SK06	CX06	GH19
BT30-GSK6-90	2.0-6.0	19.5	20	68	90	M15.5*1.0	HN-GSK6	SK06	CX06	GH19
BT30-GSK10-60	3.0-10.0	27.1	27.6	38	60	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT30-GSK10-75	3.0-10.0	27.1	27.6	53	75	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT30-GSK10-90	3.0-10.0	27.1	27.6	68	90	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT30-GSK10-120	3.0-10.0	27.1	27.6	98	120	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT30-GSK13-60	3.0-13.0	33	33.5	38	60	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT30-GSK13-75	3.0-13.0	33	33.5	53	75	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT30-GSK13-90	3.0-13.0	33	33.5	68	90	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT30-GSK13-120	3.0-13.0	33	33.5	98	120	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT30-GSK16-60	3.0-16.0	40	40.5	38	60	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT30-GSK16-75	3.0-16.0	40	40.5	53	75	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT30-GSK16-90	3.0-16.0	40	40.5	68	90	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT30-GSK16-120	3.0-16.0	40	40.5	98	120	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT30-GSK20-60	4.0-20.0	48	48.5	38	60	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT30-GSK20-75	4.0-20.0	48	48.5	53	75	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT30-GSK20-90	4.0-20.0	48	48.5	68	90	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT30-GSK20-120	4.0-20.0	48	48.5	98	120	M40.0*1.0	HN-GSK20	SK20	CX20	GH48

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Collet Puller	Spanner
BT40-GSK6-60	2.0-6.0	19.5	20	33	60	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BT40-GSK6-75	2.0-6.0	19.5	20	48	75	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BT40-GSK6-90	2.0-6.0	19.5	20	63	90	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BT40-GSK6-120	2.0-6.0	19.5	20	93	120	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BT40-GSK10-60	3.0-10.0	27.1	27.6	33	60	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK10-75	3.0-10.0	27.1	27.6	48	75	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK10-90	3.0-10.0	27.1	27.6	63	90	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK10-120	3.0-10.0	27.1	27.6	93	120	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK10-150	3.0-10.0	27.1	27.6	123	150	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK13-60	3.0-13.0	33	33.5	33	60	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK13-75	3.0-13.0	33	33.5	48	75	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK13-90	3.0-13.0	33	33.5	63	90	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK13-120	3.0-13.0	33	33.5	93	120	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK13-150	3.0-13.0	33	33.5	123	150	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK16-60	3.0-16.0	40	40.5	33	60	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT40-GSK16-75	3.0-16.0	40	40.5	48	75	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT40-GSK16-90	3.0-16.0	40	40.5	63	90	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT40-GSK16-120	3.0-16.0	40	40.5	93	120	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT40-GSK16-150	3.0-16.0	40	40.5	123	150	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT40-GSK20-60	4.0-20.0	48	48.5	33	60	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK20-75	4.0-20.0	48	48.5	48	75	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK20-90	4.0-20.0	48	48.5	63	90	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK20-120	4.0-20.0	48	48.5	93	120	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK20-150	4.0-20.0	48	48.5	123	150	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK25-90	6.0-25.0	55	55.5	63	90	M45.0*1.0	HN-GSK25	SK25	CX25	GH55
BT40-GSK25-120	6.0-25.0	55	55.5	93	120	M45.0*1.0	HN-GSK25	SK25	CX25	GH55

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Collet Puller	Spanner
BT50-GSK10-105	3.0-10.0	27.1	27.6	67	105	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT50-GSK10-135	3.0-10.0	27.1	27.6	97	135	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT50-GSK10-165	3.0-10.0	27.1	27.6	127	165	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT50-GSK13-105	3.0-13.0	33	33.5	67	105	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT50-GSK13-135	3.0-13.0	33	33.5	97	135	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT50-GSK13-165	3.0-13.0	33	33.5	127	165	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT50-GSK16-105	3.0-16.0	40	40.5	67	105	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT50-GSK16-135	3.0-16.0	40	40.5	97	135	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT50-GSK16-165	3.0-16.0	40	40.5	127	165	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT50-GSK16-200	3.0-16.0	40	40.5	162	200	M32.0*1.5	HN-GSK16	SK16	CX16	GH40
BT50-GSK20-105	4.0-20.0	48	48.5	67	105	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT50-GSK20-135	4.0-20.0	48	48.5	97	135	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT50-GSK20-165	4.0-20.0	48	48.5	127	165	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT50-GSK20-200	4.0-20.0	48	48.5	162	200	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT50-GSK25-105	6.0-25.0	55	55.5	67	105	M45.0*1.5	HN-GSK25	SK25	CX25	GH55
BT50-GSK25-135	6.0-25.0	55	55.5	97	135	M45.0*1.5	HN-GSK25	SK25	CX25	GH55
BT50-GSK25-165	6.0-25.0	55	55.5	127	165	M45.0*1.5	HN-GSK25	SK25	CX25	GH55
BT50-GSK25-200	6.0-25.0	55	55.5	162	200	M45.0*1.5	HN-GSK25	SK25	CX25	GH55

Ⅳ. Overview for HIPPSC Products

Back Lock/Side Lock Tool Holders.
Morse Taper/Tapering Tool Holders/Shanks.
Threaded/Screw-on/Thread Screw Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅳ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅴ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅵ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
Milling Cutting Tools GSK High Speed SK Collet Chuck For Milling

Ⅶ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
