| Spindle Type: | CAT-FMB | Inventory: | In Stock |
|---|---|---|---|
| Hardness: | HRC58~60 | Origin: | Dongguan, China |
| Application: | Hole Making Process And Precision Finishing | Feature: | Round Axle And Bilateral Clamp Positioning |
| Highlight: | milling machine cutting tools,cnc milling cutters |
||

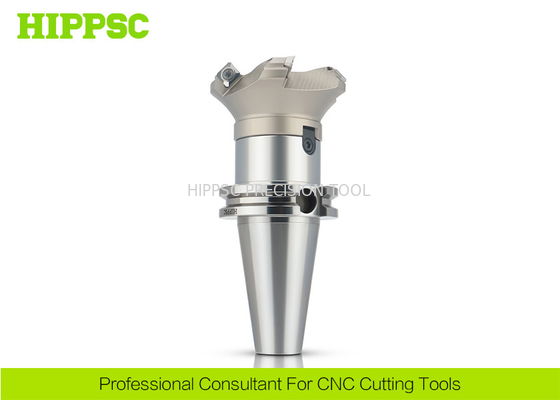

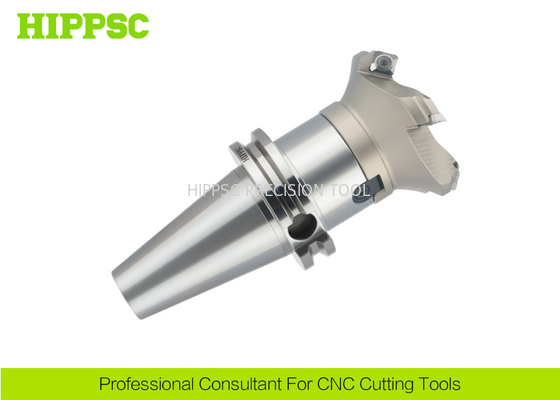

0.003mm Runout CNC Cutting Tools , Milling Cutters SK Collet Type
Ⅰ. Features And Advantages
1. Beating accuracy ≤ 0.003mm.
2. Fine grinding of inner and outer circles
3. Round axle and bilateral clamp positioning,
4. High gripping force, prevents tools from loosing.
5. Easy to operate, fast and convenient clamping
6. High precision, many specifications, high quality, sufficient stock
Ⅱ. Technical Parametes
|
Product Name |
Face Milling Chuck |
|
Spindle Type |
CAT |
|
Run-Out |
0.003mm |
|
Processing Type |
Endmilling, Face mill, Finishing, Drilling |
|
Product Material |
20Crnimo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Standard Items
Cat. No |
D1 | D2 | D3 | L1 | L2 | M | K1 | K2 |
| CAT40-FMB22-60 | 22 | 26 | 48 | 60 | 18 | M10*1.5 | 4.8 | 10 |
| CAT40-FMB22-90 | 22 | 26 | 48 | 90 | 18 | M10*1.5 | 4.8 | 10 |
| CAT40-FMB27-60 | 27 | 31.5 | 58 | 60 | 20 | M12*1.75 | 5.8 | 12 |
| CAT40-FMB27-90 | 27 | 31.5 | 58 | 90 | 20 | M12*1.75 | 5.8 | 12 |
| CAT40-FMB27-105 | 27 | 31.5 | 58 | 105 | 20 | M12*1.75 | 5.8 | 12 |
| CAT40-FMB32-60 | 32 | 41 | 60 | 60 | 22 | M16*2.0 | 6.8 | 14 |
| CAT50-FMB40-60 | 40 | 48 | 89 | 60 | 25 | M20*2.5 | 8.3 | 16 |
| CAT50-FMB22-90 | 22 | 26 | 48 | 90 | 18 | M10*1.5 | 4.8 | 10 |
| CAT50-FMB27-90 | 27 | 31.5 | 58 | 90 | 20 | M12*1.75 | 5.8 | 12 |
| CAT50-FMB32-90 | 32 | 41 | 60 | 90 | 22 | M16*2.0 | 6.8 | 14 |
| CAT50-FMB40-90 | 40 | 48 | 89 | 90 | 25 | M20*2.5 | 8.3 | 16 |
