Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | SK-FMB | Balance: | Available |
|---|---|---|---|
| Inventory: | In Stock | Taper: | 7:24 |
| Product Name: | Face Milling Chuck | Advantage: | Round Axle And Bilateral Clamp Positioning |
| Highlight: | milling machine cutting tools,cnc milling cutters |
||

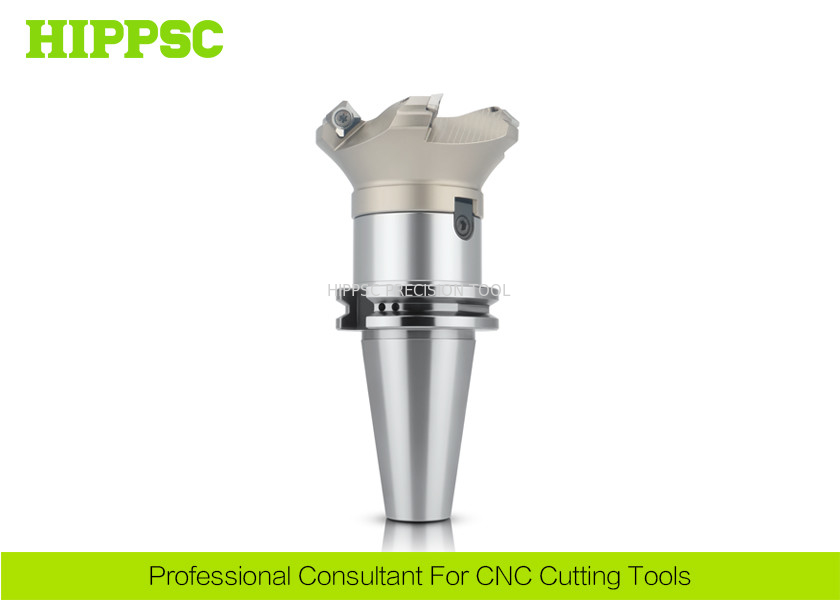

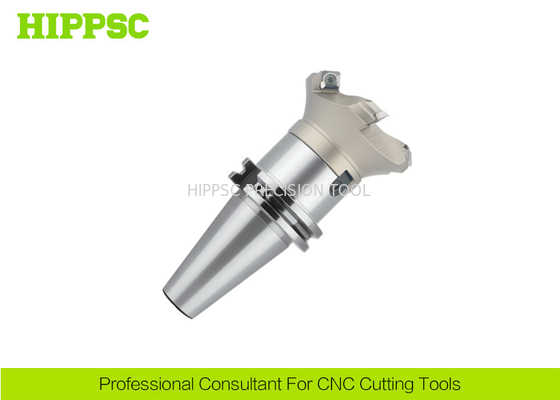

High Precision CNC Cutting Tools Face Milling Chuck SK Suitable For Milling
Ⅰ. Features And Advantages
1. Suitable for milling
2. Fast cutting, better chip removal
3. Fine grinding of inner and outer circles
4. Round axle and bilateral clamp positioning
5. Easy to operate, fast and convenient clamping
6. High precision, many specifications, high quality, sufficient stock
Ⅱ. Technical Parametes
|
Product Name |
Face Milling Chuck |
|
Spindle Type |
SK |
|
Taper standard |
<AT3 |
|
Run-Out |
0.003mm |
|
Processing Type |
Endmilling, Face mill, Finishing, Drilling |
|
Product Material |
20Crnimo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Standard Items
Cat. No |
D1 | D2 | D3 | L1 | L2 | M | K1 | K2 |
| SK40-FMB22-60 | 22 | 26 | 48 | 60 | 18 | M10*1.5 | 4.8 | 10 |
| SK40-FMB22-90 | 22 | 26 | 48 | 90 | 18 | M10*1.5 | 4.8 | 10 |
| SK40-FMB22-150 | 22 | 26 | 48 | 150 | 18 | M10*1.5 | 4.8 | 10 |
| SK40-FMB27-60 | 27 | 31.5 | 58 | 60 | 20 | M12*1.75 | 5.8 | 12 |
| SK40-FMB27-90 | 27 | 31.5 | 58 | 90 | 20 | M12*1.75 | 5.8 | 12 |
| SK40-FMB32-60 | 32 | 41 | 78 | 60 | 22 | M16*2.0 | 6.8 | 14 |
| SK40-FMB40-60 | 40 | 48 | 89 | 60 | 25 | M20*2.5 | 8.3 | 16 |
| SK50-FMB22-60 | 22 | 26 | 48 | 60 | 18 | M10*1.5 | 4.8 | 10 |
| SK50-FMB22-90 | 22 | 26 | 48 | 90 | 18 | M10*1.5 | 4.8 | 10 |
| SK50-FMB22-150 | 22 | 26 | 48 | 150 | 18 | M10*1.5 | 4.8 | 10 |
| SK50-FMB22-200 | 22 | 26 | 48 | 200 | 18 | M10*1.5 | 4.8 | 10 |
| SK50-FMB27-60 | 27 | 31.5 | 58 | 60 | 20 | M12*1.75 | 5.8 | 12 |
| SK50-FMB27-90 | 27 | 31.5 | 58 | 90 | 20 | M12*1.75 | 5.8 | 12 |
| SK50-FMB32-60 | 32 | 41 | 78 | 60 | 22 | M16*2.0 | 6.8 | 14 |
| SK50-FMB40-60 | 40 | 48 | 89 | 60 | 25 | M20*2.5 | 8.3 | 16 |
Ⅳ. Overview for HIPPSC Products
1. Mirror Finishing Tool Holders.
2. Back Lock/Side Lock Tool Holders.
3. Morse Taper/Tapering Tool Holders.
4. Indexable PCBN/PCD Blade/Cutters/Inserts.
5. Torque/ Round/Circle Spanners/Wrenches/Keys.
6. Edge finder/Tool Holder Tightening Fixture/Table.
7. Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.
8. Enough Types of BT/BBT/SK/CAT/HSK/ISO/NT/NBT To Meet Customer's demand.
Ⅴ. Shipmen
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. Packing
PE Bag. Slushing oil.
Plastic Box. Adhesive Tape.
Carton Box. Packing Belt.
Ⅶ. Warehouse
1. Quick response and On-time dispatchment, Fast Lead time.
2. Products Must be Inspected Several Times Before Sending To Customer.
3. High Standard Equipments and Gauges For Examing Technical Parameters.
Ⅷ. Manufacturing and Sales Service
1. Professional Equipments, Special Technology, Experienced Workers.
2. Supplying OEM&ODM , Custom Made, Professional suggestion and Consultation.
3. One Station Service For CNC Cutting Tools Using.
