Milling Machine Tool Holders Hydraulic Tool Holders / CAT Steel Tool Holder

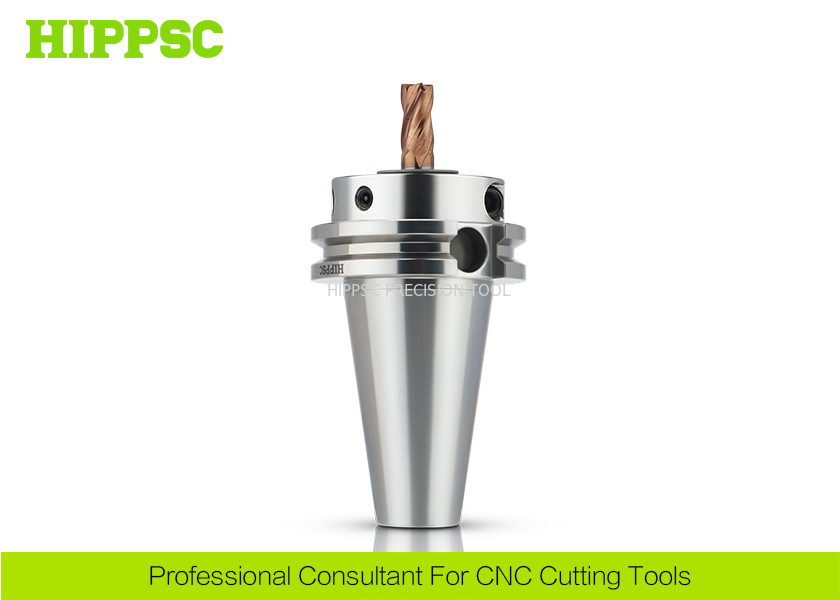

Large Image : Milling Machine Tool Holders Hydraulic Tool Holders / CAT Steel Tool Holder

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	CAT40-EHM20-50

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Clam Diameter:	3~32mm	Spindle Type:	CAT-EHM
Appearance:	Coating Treatment	Type:	CNC Tools Holder
Precision:	High Precison, 0.003mm	Application:	Electronics, Automotive, Die/mould And Aerospace
Highlight:	machine tool holders , boring tool holder

Milling Machine Tool Holders Hydraulic Tool Holders / CAT Steel Tool Holder

Ⅰ. Advantages

Run-out ≤ 0.003mm
Super Running And Repeat Accuacy
For the best balance of moment power
Vibration Dampening increases surface quality
360 degree and double positions clamping, increasing tools' rigidity
Hydraulic design, simple locking, easy to operate, fast and convenient

Ⅱ. Technical Parametes

Product Name	Hydraulic Tool Holder
Spindle Type	CAT
Clamping Range	3mm~16mm (diameter)
Beat accuracy	< 0.003mm
Processing Type	Endmilling, Reaming, Drilling, Finishing
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Show

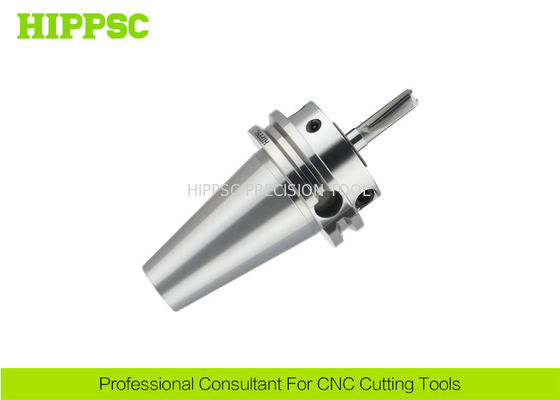

Milling Machine Tool Holders Hydraulic Tool Holders / CAT Steel Tool Holder

Available Standard Items

Cat. No	D1	D2	L1	L2MAX	L2MIN	M	Collet	Spanner
CAT40-EHM20-50	20	51.5	50	52	42	M10*1.5	HM20/OHM20	T5
CAT50-EHM20-33	20	51.5	33.1	52	42	M10*1.5	HM20/OHM20
CAT50-EHM25-33	25	58	33.1	56	46	M10*1.5	/
CAT50-EHM32-33	32	68.5	33.1	60	50	M10*1.5	HM32/OHM32

Ⅳ. Products Overview

CNC Indexable Cutting Tools.
Rapid Changing CNC Tool Bits.
Morse Tap AdapterTools Holder.
Threaded/Screw-on/Thread Screw Tool Holders.
Edge finder/Tool Holder Tightening Fixture/Table
Back Lock/Side Lock and Mirror Finishing Toolholders.
ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
B30 Economical Hydraulic Chucks With High Regidity and Stability.

Ⅴ. Shipment

By Sea; By Air.

By land transportation-By train, By truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

Main Material
PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

1.   We usually arrange delivery within 2 days for standard products after payment confirmed.
2.   OQC and IQC are always used to control and exam products quality.
3.   We have special test gauges and equipments to measure products technical parameter.

Milling Machine Tool Holders Hydraulic Tool Holders / CAT Steel Tool Holder

Ⅷ. Warranty
