HSK - HM Hydraulic Tool Holder , Durable CNC Milling Machine Tool Easy Operation

China HSK - HM Hydraulic Tool Holder , Durable CNC Milling Machine Tool Easy Operation supplier
HSK - HM Hydraulic Tool Holder , Durable CNC Milling Machine Tool Easy Operation supplier HSK - HM Hydraulic Tool Holder , Durable CNC Milling Machine Tool Easy Operation supplier

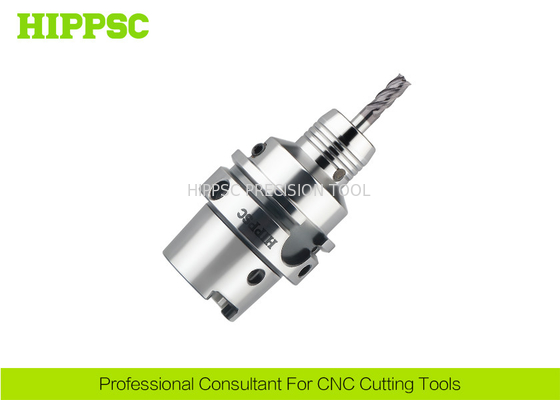

Large Image :  HSK - HM Hydraulic Tool Holder , Durable CNC Milling Machine Tool Easy Operation

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: HSK63A-HM6-70

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: HSK Product Type: Hydraulic Tool Holder With Ultra Short Clamping
Runout: 0.003μm Cutting Type: End Milling, Reaming, Drilling
Material: Special Steel Application: Hole Making Process And Precision Finishing
Highlight:

machine tool holders

,

boring tool holder

HSK - HM CNC Milling Machine Tool Holders Hydraulic Tool Holder For Milling




Ⅰ​. Features

  1. Up up to true running and repeat accuracy < 0.003 mm-Increase the tool’s service life
  2. Excellent vibration damping Improved surface quality, Prevents chipping of tool cutting edge
  3. Versatile clamping range thanks to intermediate straight shank colle.
  4. Accurate length presetting axially or radially
  5. Suitable for finishing and semi-finishing machining.
  6. Easy handling and operation - no need peripheral equipment- Change tools within seconds
  7. Precision-balanced as standard G 2.5 / 25000 1/min.

Ⅱ. Technical Parametes ​



Product Name

Compact Hydraulic Tool Holder

Spindle Type

 HSK

Clamping Range

6/8/10/12/16/20/25mm (Diameter)

Beat accuracy

< 0.003 mm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special Steel

Hardness

HRC58~60°


Ⅲ. Product Show

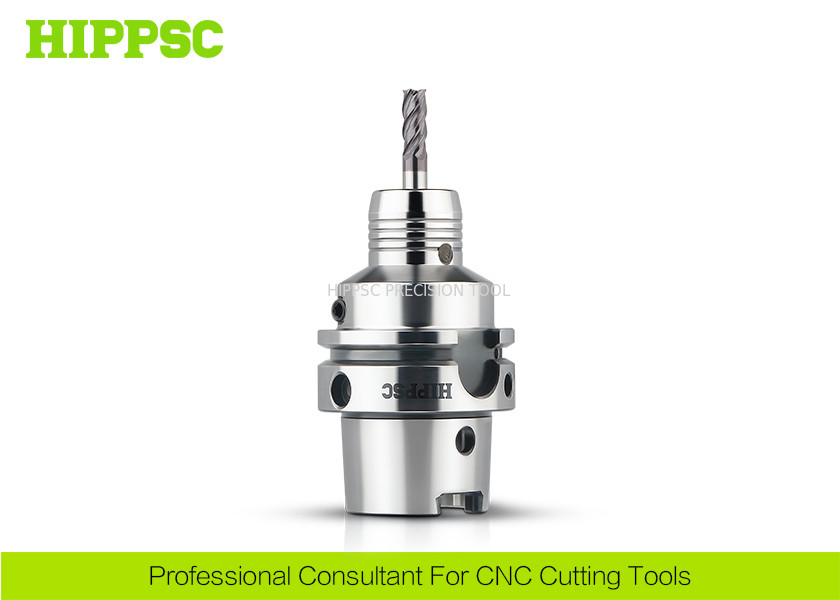

HSK - HM Hydraulic Tool Holder , Durable CNC Milling Machine Tool Easy Operation

Price List






Cat. No		 D1 D2 D3 D4 L1 L2MAX L2MIN L3 G Collet spanner  G
HSK63A-HM6-70 6 25 28 50 70 37.5 27.5 44 M5*0.8 - T4 M5*0.8
HSK63A-HM8-70 8 27 30 50 70 37.5 27.5 44 M6*1.0 - T4 M6*1.0
HSK63A-HM10-80 10 29 32 50 80 42.5 32.5 54 M8*1.0 - T4 M8*1.0
HSK63A-HM12-85 12 31 34 50 85 47.5 37.5 59 M8*1.0 HM12/OHM12 T4 M8*1.0
HSK63A-HM14-85 14 33 36 50 85 47.5 37.5 64 M8*1.0 - T4 M8*1.0
HSK63A-HM16-90 16 35 38 50 90 52.5 42.5 64 M8*1.0 - T4 M8*1.0
HSK63A-HM18-90 18 38 41 50 90 52.5 42.5 64 M8*1.0 - T4 M8*1.0
HSK63A-HM20-90 20 40 43 50 90 52.5 42.5 64 M10*1.0 HM20/OHM20 T4 M10*1.0
HSK63A-HM25-120 25 53 57 63 120 57 47 94 M16*1.0 - T5 M16*1.0
HSK63A-HM32-125 32 60 64 75 125 61 51 99 M16*1.0 HM32/OHM32 T5 M16*1.0
HSK100A-HM12-95 12 31 34 50 95 47.5 37.5 66 M8*1.0 HM12/OHM12 T4 M8*1.0
HSK100A-HM20-105 20 40 43 50 105 52.5 42.5 76 M10*1.0 HM20/OHM20 T4 M10*1.0
HSK100A-HM25-110 25 53 57 63 110 61 51 81 M16*1.0 - T5 M16*1.0
HSK100A-HM32-110 32 60 63 75 110 65 55 81 M16*1.0 HM32/OHM32 T5 M16*1.0






Ⅳ. Products Overview


  1. B40 Economical Hydraulic Tool holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Shrinking-fit Tool Holders.
  4. Screw-in Tool Holders.
  5. Toolholders For Mirror Finishing​.
  6. Morse Tap Adapter.
  7. All Standard Collets-ER/SK/C Power type/Slim straight shank.
  8. All kinds of wrenches/spanners.
  9. Auxiliary equipment-Arbor tester, tool lock fixture, taper wiper and edge sensor maching.
  10. CNC Indexable Cutting Inserts.
  11. Other standard accessories.
  12. We offer EOM/ODM service to every customer.



Ⅴ​. Flexible Shipment Ways​

1.
By Sea.
By Air.
By Train/Truck.


2.

TNT.

EMS.

DHL.

UPS.

FedEx.





3.

Custom decide.


Ⅵ. Packing



Basic:
PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.



Custom made available.
Tell us what kinds of packing material and design you want, we can

do as your requirements.


Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

HSK - HM Hydraulic Tool Holder , Durable CNC Milling Machine Tool Easy Operation


Ⅷ. Warranty


  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • First Grade Service, Considerate and Sincere.
