Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Months | Color: | Silver White |
|---|---|---|---|
| Runout: | Within 3μm | Spindle Type: | HSK-A-HM |
| Product Type: | Hydraulic Tool Holder | Cutting Type: | EndMilling, Reaming, Drilling |
| Highlight: | machine tool holders,boring tool holder |
||
Boring Tool Holder Hydraulic Tool Holder / HSK Tool Holders High Accuracy 3μm
Ⅰ. Features
Ⅱ. Technical Parametes
|
Product Name |
Hydraulic Tool Holder |
|
Spindle Type |
HSK-E |
|
Clamping Range |
3~32mm (diameter) |
|
Beat accuracy |
≤ 0.003 μm |
|
Processing Type |
Endmilling, Reaming, Drilling, Finishing |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |

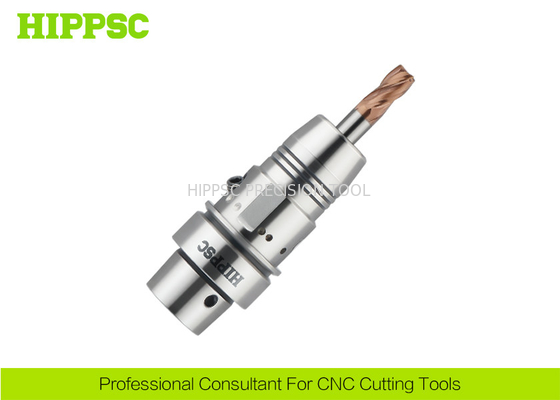

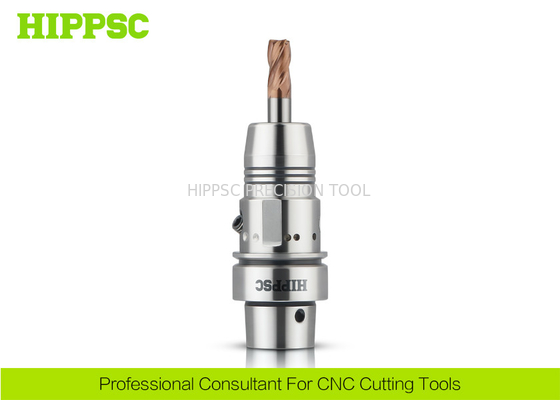

Ⅲ. Product Show
Product List
Cat. No |
D1 | D2 | D3 | D4 | L1 | L2MAX | L2MIN | L3 | G | Collet | spanner | G |
| HSK40E-HM6-70 | 6 | 25 | 28 | 34 | 70 | 37 | 27 | 50 | M5*0.8 | ‐‐ | T4 | M5*0.8 |
| HSK40E-HM8-70 | 8 | 27 | 30 | 34 | 70 | 37 | 27 | 50 | M6*1.0 | ‐‐ | T4 | M6*1.0 |
| HSK40E-HM10-75 | 10 | 29 | 32 | 34 | 75 | 41 | 31 | 55 | M6*1.0 | ‐‐ | T4 | M6*1.0 |
| HSK40E-HM12-80 | 12 | 31 | 34 | 34 | 80 | 46 | 36 | 60 | M6*1.0 | HM12/OHM12 | T4 | M6*1.0 |
| HSK50E-HM6-70 | 6 | 25 | 28 | 40 | 70 | 37 | 27 | 44 | M5*0.8 | ‐‐ | T4 | M5*0.8 |
| HSK50E-HM8-70 | 8 | 27 | 30 | 40 | 70 | 37 | 27 | 44 | M6*1.0 | ‐‐ | T4 | M6*1.0 |
| HSK50E-HM10-75 | 10 | 29 | 32 | 40 | 75 | 41 | 31 | 49 | M8*1 | ‐‐ | T4 | M8*1.0 |
| HSK50E-HM12-85 | 12 | 31 | 34 | 40 | 85 | 46 | 36 | 59 | M8*1 | HM12/OHM12 | T4 | M8*1.0 |
| HSK50E-HM16-90 | 16 | 35 | 38 | 53 | 90 | 49 | 39 | 64 | M10*1 | ‐‐ | T4 | M10*1.0 |
| HSK50E-HM20-90 | 20 | 40 | 43 | 60 | 90 | 51 | 41 | 64 | M10*1 | HM20/OHM20 | T4 | M10*1.0 |
Ⅳ. What we can supply you
Related products to CNC Cutting Tools.
Consulting service for CNC machining.
Our products nearly cover all kinds CNC Tool Holders.
We also welcome business cooperation on OEM&ODM.
Ⅶ. Warehouse
We prepare abundant stock for every standard products to ensure immediate shipment for
customer's order, and our operators of warehouse will inspect goods carefully for every delivery.
Ⅷ. Warranty and Service
Dear Customer:
Thank you very much for purchasing HIPPSC products, which are warranted to be free from defects in materials or workmanship for one (1) year from the date of purchase from HIPPSC, except for any irregular operation or artificial damage. Within this period, we will, at our sole discretion, repair or replace the products that fail in normal use. Such repairs or replacement will be made at no charge to you for parts and/or labor, provided that you shall be responsible for any transportation charges. Replacement products may be new or refurbished at our discretion.
